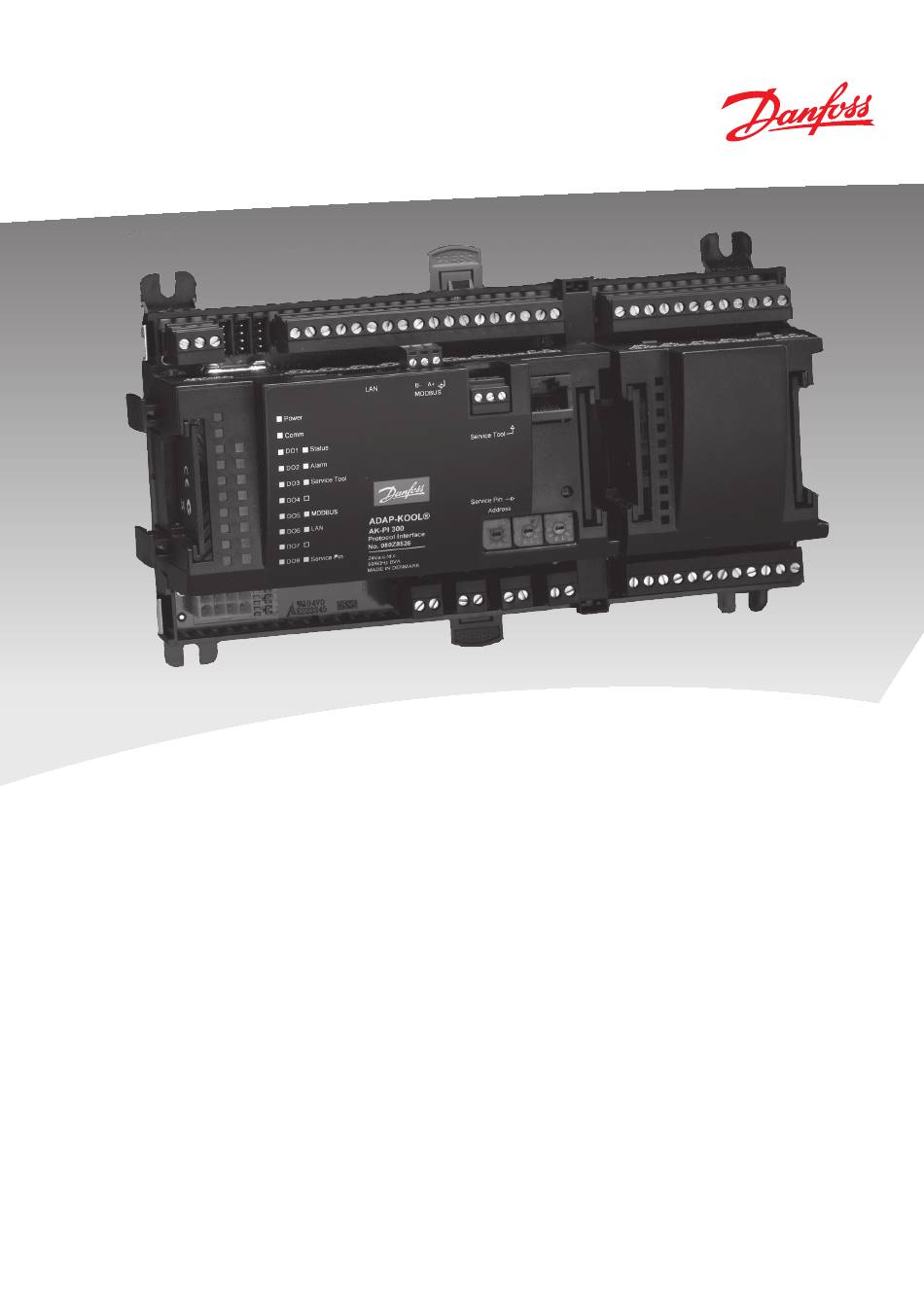

  • Page 1 Protocol interface AK-PI 300 Manual...

  • Page 2: Table Of Contents

    Comm. box and “Indoor unit” to RTD- network. Application The AK-PI 300 is used on systems where the system unit is an AK-SM 720 and where there is/are one or more Daikin type units. AK-PI 300 links communication to Daikin so that the system manager can present all the controllers on the system.
  • Page 3 Up to two AK-PI-300 units can be connected to a single system manager, i.e. up to 2 Comm. boxes and 6 RTD units. If there are two AK-PI 300 units, the connection to the system manager is led via a router or a switch.

  • Page 4: Installation

    - Select dynamic if it is a closed system and the two units are connected to a router or a switch. c) In the AK-PI 300 the IP address is set either to static or to dynamic. - Select static if the connection between the system unit and the AK-PI 300 is with a crossed cable.
  • Page 5 Go to the Setup menu/Protocol interface (the system manager must be version 1.20 or later). 2. Select the address of the AK-PI 300, which is to be connected to the system unit. Perform scan number 2 and locate the Daikin units...

  • Page 6: Requirements And Terms

    AK-PI 300 unit. 11:012 to 11:999 are addresses for units on the network. The units can be AK-PI 300 units or wireless units, or they can be • Up to two AK-PI 300 units can be connected to a single controllers in which the data communication takes place via system manager.
  • Page 7 The overview display will show the following: • The address of the system manager that AK-PI 300 is connected • The status of the alarm transmission • Date and time • The quality of the Daikin communication signal The configuration display gives access to the following: •...

  • Page 8: Ordering
