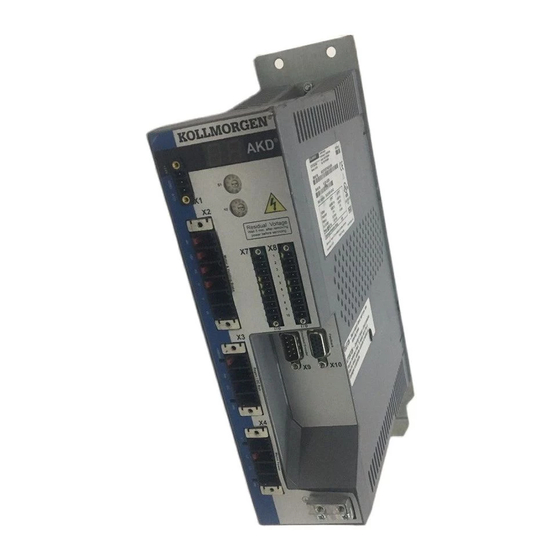

Kollmorgen AKD Fault Card
  1. Manuals
  2. Brands
  3. Kollmorgen Manuals
  4. Servo Drives
  5. AKD
  6. Fault card

Kollmorgen AKD Fault Card

Hide thumbs Also See for AKD:

Advertisement

Quick Links

®
AKD
Fault Card
Edition: T, November 2019
Valid for Hardware Revision E
Part Number 903-200002-00
Keep all manuals as a product component during the life span of the product.
Pass all manuals to future users/owners of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AKD and is the answer not in the manual?

Questions and answers

tusingwire saraphina
February 3, 2025

main inverter bricking error33 and then the other two connected iverters bricking showing n602

0

Related Manuals for Kollmorgen AKD

Summary of Contents for Kollmorgen AKD

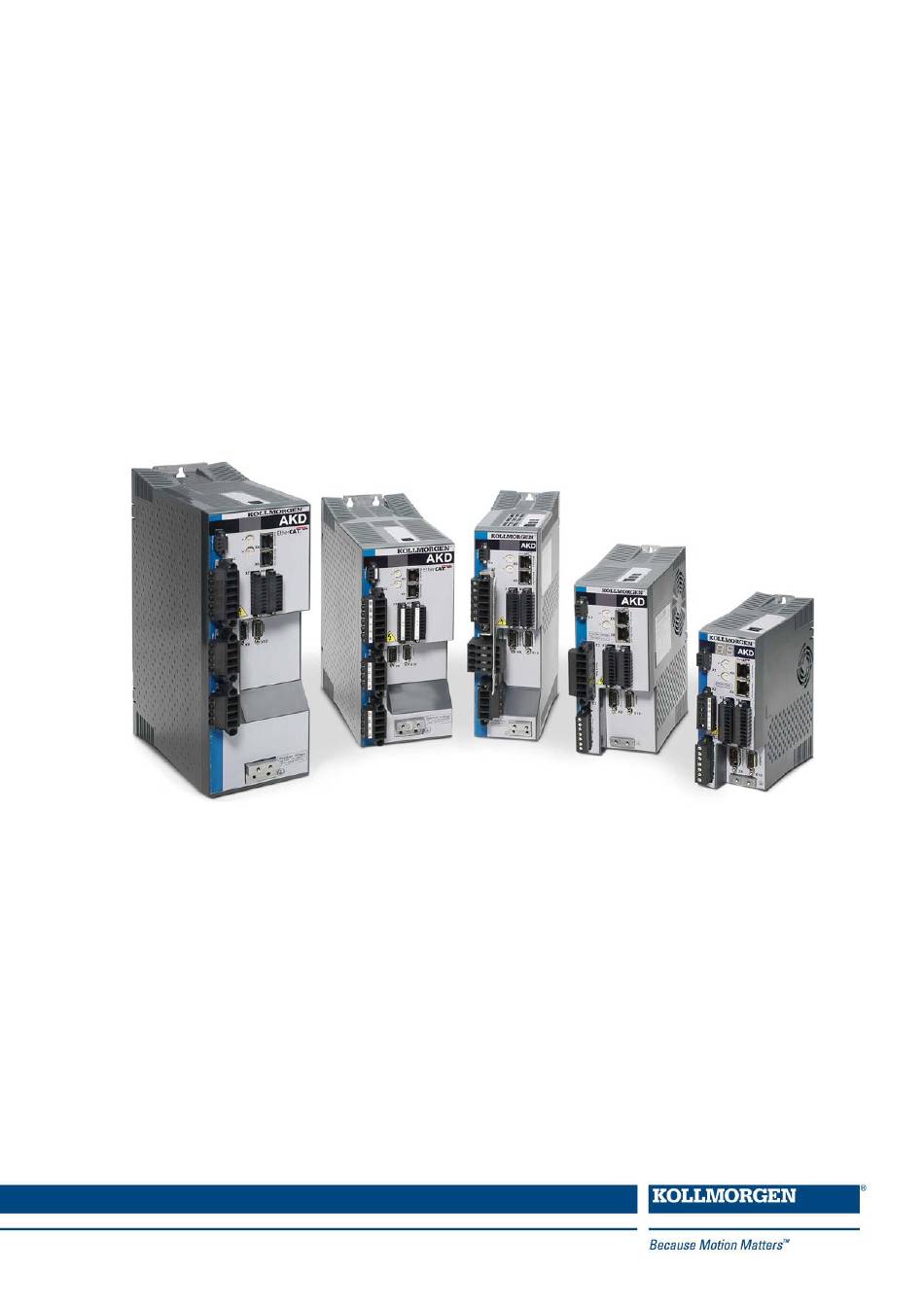

  • Page 1 ® Fault Card Edition: T, November 2019 Valid for Hardware Revision E Part Number 903-200002-00 Keep all manuals as a product component during the life span of the product. Pass all manuals to future users/owners of the product.
  • Page 2 Printed in the United States of America This document is the intellectual property of Kollmorgen. All rights reserved. No part of this work may be repro- duced in any form (by photocopying, microfilm or any other method) or stored, processed, copied or dis- tributed by electronic means without the written permission of Kollmorgen.

  • Page 3: Table Of Contents

    AKD Fault Card | 1   Table of Contents 1 Table of Contents 1 Table of Contents 2 Fault and Warning Messages 2.1 Fault & Warning Indicators at the Device 2.2 Fault & Warning Details with a Connected Device 3 Additional fault messages AKD-T 4 Record of Document Revisions 3 Kollmorgen | kdn.kollmorgen.com | November 2019...

  • Page 4: Fault And Warning Messages

    AKD Fault Card | 2   Fault and Warning Messages 2 Fault and Warning Messages When a fault occurs a specific fault reaction is executed by the drive. Depending on the fault, the reaction can be to: Controlled stop, which slows down any motion to zero velocity (see also CS.VTHRESH and CS.TO ) and disables the power stage.
  • Page 5 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) 1. 24V Control 1. Insure adequate Power input 24V supply current voltage dip. capacity for the sys- 2. Auxillary encoder tem.
  • Page 6 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F105 NV Memory Stamp. Non-volatile memory Reset the drive to default Disable memory values using Para- stamp is corrupted or power meter Load in WorkBench.
  • Page 7 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F123 Invalid motion task. Invalid motion task. Check motion task settings Disable n123 and parameters to make power sure that the values...
  • Page 8 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F133 Fault number changed to Disable to F138. See F138 for power details. stage F134 Secondary feedback Feedback signals were Check X9 connection.
  • Page 9 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) n140 VBUS.HALFVOLT has The user has changed Save the parameters in the None (deprec- changed. Save the para- the numerical value of...
  • Page 10 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) n153 Velocity limit violation, A new target velocity Activation of any new None exceeding max limit. calculated internally due...
  • Page 11 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) n159 Failed to set motion task Invalid motion task para- Activation of any new None parameters meters assignment. motion or using of This warning can appear DRV.CLRFAULTS will...
  • Page 12 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) n169 1:1 profile cannot be This warning appears 1:1 profile table motion None triggered on the fly. with n160. This warning...
  • Page 13 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F234 - Temperature sensor high. High temperature limit Check cabinet ventilation Disable  F237 reached. system. power n234 - stage  n237 F240 - Temperature sensor low.
  • Page 14 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F257 Analog Input under The analog input value Check the analog input sig- Controlled voltage is below the nal or change the stop AIN.UVFTHRESH...
  • Page 15 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F308 Voltage exceeds motors Drive bus voltage Make sure that the motor Disable rating. exceeds the motor’s fits the driving rating.
  • Page 16 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F404 Illegal Hall state (111, Hall sensor returns Check the feedback wiring; Dynamic 000). invalid Hall state (111, check all feedback con- braking 000);...
  • Page 17 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F438 Deviation from predicted Motor did not follow Check for increased load, Controlled n438 trajectory fault. command values. Motor jamming or sticking.
  • Page 18 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F453 Tamagawa com- Bad communication Check the cabling to the Dynamic munication fault with the feedback drive and if the problem per- braking (timeout).
  • Page 19 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F465 Excessive shock detec- 1. Excessive shock 1. Reduce external impacts Dynamic ted by feedback device. from an impact or vibra-...
  • Page 20 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F476 Wake and Shake - Fine- The angle difference Modify WS.IMAX or WS.T Disable Coarse delta too large. between the coarse and and try again.
  • Page 21 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F487 Wake and Shake - Val- After applying a positive Check motor phase wiring Disable idating Positive Move- current, motor moved in...
  • Page 22 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F501 Bus over voltage. Bus voltage too high. Reduce load or change Disable n501 Usually, this problem is motion profile. Check sys- power load related.
  • Page 23 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F529 Iu current offset limit Hardware failure detec- Restart drive. If issue per- Disable exceeded. ted. sists, contact technical power support.
  • Page 24 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F534 Failed to read motor para- Motor either does not Try to read parameters Dynamic again by clicking the Dis-...
  • Page 25 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F545 String current over peak String current is higher Lower AKD-N current limits Disable limit than AKD-C Rated to prevent overdrawing Drives Peak Current.
  • Page 26 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) Refer to ECCN 3A225 Lim- n582 Velocity has been limited Motor Velocity has Velocity itations for Induction commutation speed to...
  • Page 27 AKD Fault Card | 2   Fault and Warning Messages Fault Message/Warning Cause Remedy Drive (“F”) Respons- e to Fault Warning (“n”) F628 AKD-C Front door packet A data packet has not Check cables and clear the Disable not received on String 1.

  • Page 28: Additional Fault Messages Akd-T

    AKD Fault Card | 3   Additional fault messages AKD-T 3 Additional fault messages AKD-T AKD BASIC runtime faults are displayed in the two-digits 7-segment display of the drive: The two digits LED display indicates the fault code. The additional runtime fault messages for AKD-T are coded with numbers starting from F801.
  • Page 29 AKD Fault Card | 3   Additional fault messages AKD-T Error Description F828 Disable Drive first. F829 Opcode not supported - upgrade firmware. F830 No negative values allowed. F831 BASIC program is invalid. May need firmware upgrade. F832 BASIC program is missing.

  • Page 30: Record Of Document Revisions

    AKD Fault Card | 4   Record of Document Revisions 4 Record of Document Revisions Revision Remarks C, 03/2012 Faults added for 1.6, AKD BASIC, and I/O option card. D, 08/2012 Tamagawa faults added. E, 11/2012 Faults added for 1.8. F, 05/2013 Added F467 and F560.
  • Page 31 About KOLLMORGEN  Kollmorgen is a leading provider of motion systems and components for machine builders. Through world-class knowledge in motion, industry-leading quality and deep expertise in linking and integrating standard and custom products, Kollmorgen delivers breakthrough solutions that are unmatched in performance, reliability and ease- of-use, giving machine builders an irrefutable marketplace advantage.
