Meyer 08888 Parts & Installation Instructions

7
10
9
10
NOTE: The 08888 Wing Kit is not recommended to be used with a rubber or urethane cutting edge.
Meyer Products LLC reserves the right, under its continuing product improvement program, to change construction or design details,
specifications and prices without notice or without inncurring any obligation.
© 2012 Printed in the U.S.A.
Parts & Installation Instructions
ST & C-Series (08888)
Steel Molboard Wings
3
3
Item Part No. Qty.
08888
1 19800 1
2 19801 1
3 19797 4
4 19870 1
5 19786 1
6 12787 2
08887 1
7 12691 2
8 20097 6
9 20307 10
10 20355 20
11 20361 4
12 811000224 4
Parts indented are included in the assembly under which they are indented.
1 & 2
11
10
10
9

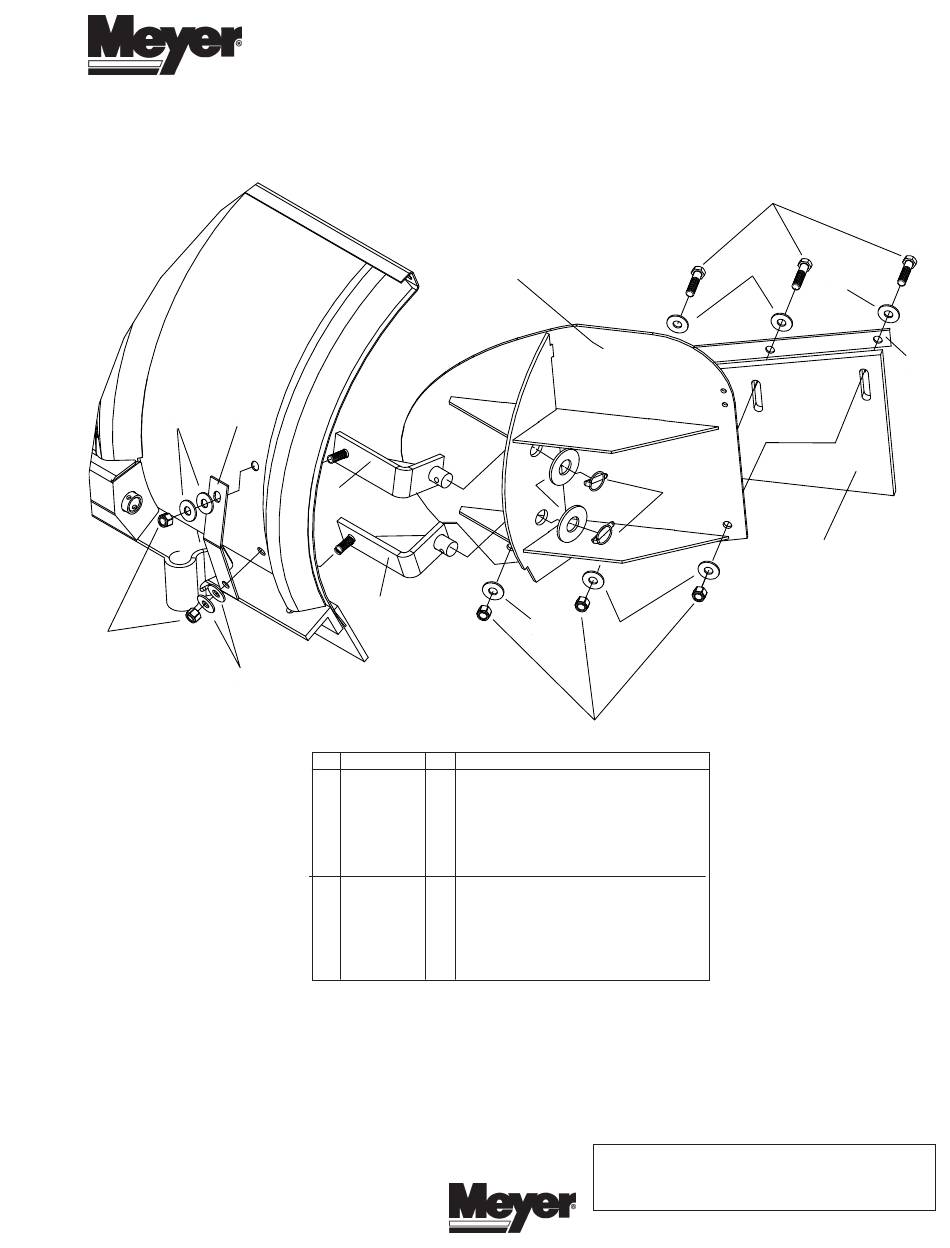

Parts List
Description
Moldboard Wing Kit
• RH (Passenger Side) Wing
• LH (Driver Side) Wing
• Wing Angle Bracket
• LH (Driver Side) Wing Rubber Edge
• RH (Passenger Side) Wing Rubber Edge
• Strap
• Hardware Bag
•• Wing Bracket
•• Bolt 1/2-13 x 2" Gr.5
•• Locknut 1/2-13
•• Flawasher 1/2"
•• Flatwasher 1"
•• 5/16" Klik Pin
