Meyer MDII C-7.5 Parts & Installation Instructions

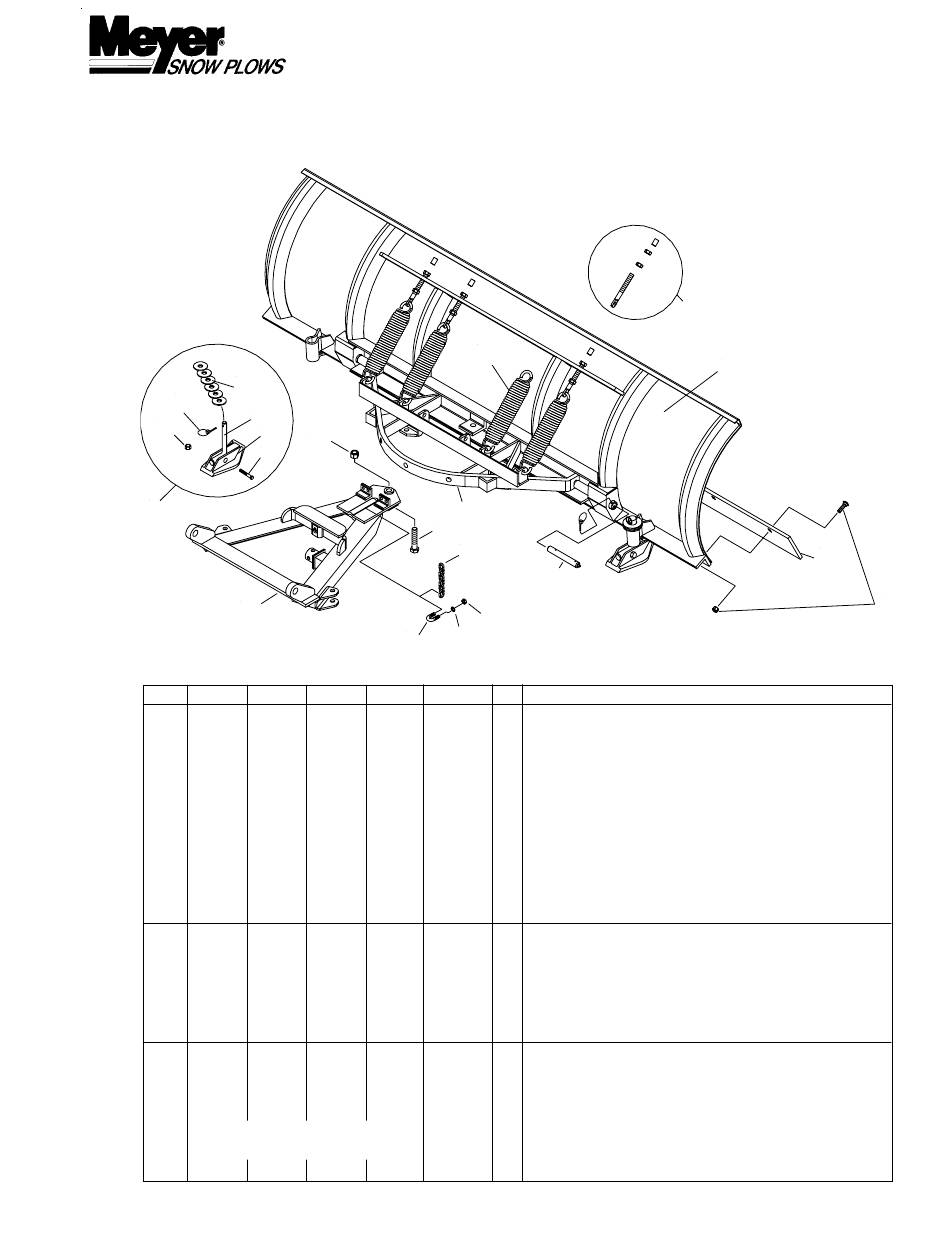

MDII™ Model C-7.5, C-8, C-8.5 & C-9 Moldboards
6
7
8
10
5
9
4
12
Item C - 7.5 C - 8.0 C - 8.5 C - 9.0 CC - 9.0 Qty
1 09240 09286 09983 09250
2 09796 09133 09134 07259
3 08692 08692 08692 ---------
3 --------- --------- --------- 08318
4 09126 09126 09126 09126
5 07006 07006 07006 07006
6 20363 20363 20363 20363
7 22083 22083 22083 22083
8 12057 12057 12057 12057
9 20101 20101 20101 20101
10 20353 20353 20353 20353
16516 16516 16516 16516
11 12793 12793 12793 12793
12 13715 13715 13715 13715
13 07017 07017 07017 07017
14 21534 21534 21534 21534
09916 09916 09916 09916
08739 08739 08739 08739
15 09119 09119 09119 09119
16 09125 09125 09125 09125
17 09124 09124 09124 09124
18 8518001026
19 8501001007
20 20328 20328 20328 20328
Meyer Products reserves the right, under its continuing product improvement program, to change construction or design details,
specifications and prices without notice or without inncurring any obligation.
Parts & Installation Instructions
16
16
18
09298
07259
---------
09318
09126
07006
20306
22083
12057
20101
20353
16516
12793
13715
07017
21534
09916
08739
09919
09125
09124
20328
Parts indented are included in the assembly under which they are indented.
13
11
14
15
19
20
Parts List
Description
1 Moldboard Assembly
1 • Cutting Edge
1 • Bolt C 1/2-13 x 2 & Locknut (Kit of 10 each)
1 • Bolt C 5/8-11 x 2-1/4 & Locknut (Kit of 12 each)
2 • Runner & Spindle Assembly
1 •• Runner
10 •• Flatwasher 1-1/4
1 •• Linch Pin
1 •• Spindle
1 •• Bolt H 1/2-13 x 3"
1 •• Locknut 1/2-13
Sector & A-Frame Carton
1 • Sector
1 • A-Frame (15" x 31" x 22-1/8")
4 • Trip Spring
2 • Lift Chain 5/16 x 36"
1 • Marker Kit
1 • Hardware Bag
2 •• Pivot Pin w/ Fittg. & Hair Pin
1 •• King Bolt w/ Locknut
4 •• Eye Bolt w/ Locknut & Cap
2 •• 7/16-14 NC U-Bolt
4 •• 7/16-14 NC Nut
4 •• 7/16 Lockwasher
Form 1-747 R1
May, 2003
