INSTALLATION INSTRUCTIONS FOR THE REFLECTIONS REMOTE CONTROL

GENERAL INFORMATION

This Remote Control Replacement Kit is to be used to replace the
Reflections Electric Fireplace's Remote Control. The kit components are
shown below.
(Kit Number H1454 And/Or H6977)

REPLACEMENT INSTRUCTIONS

Note: Depending on the type of control board in your fireplace, the
number of steps and components may vary. Following are the types of
control boards for identification:
If you have Kit Number H1094, it will be necessary to replace the board
and IR cables. In this case, complete all the Steps as outlined in these
instructions.
If you have Kit Numbers H1454 or H6977, it is not necessary to replace
the IR cables. In this case, skip Steps 11 through 21 and complete the
remaining process as outlined in these instructions.
Refer to the Reflections Fireplace Installation Instructions manual (No.
850,091M) for a visual aid on the following steps:
Step 1. Disconnect the electrical power to the fireplace.
Step 2. Remove the doors from the fireplace.
Step 3. Remove the reflective glass.
Step 4. Remove the logs.
REPLACEMENT KIT (KIT NUMBERS: H1454 AND H6977)
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
REFLECTIONS REMOTE CONTROL
P/N 750,251M
REV. A 01/2008
Step 5. Remove the grate.
Step 6. Remove the ember bed.
Step 7. Remove the fireplace floor.
Step 8. Remove the DVD player. Make sure to label the "Video Out" and
"Sound Out" cables when disconnected from the DVD player.
Plastic Holders

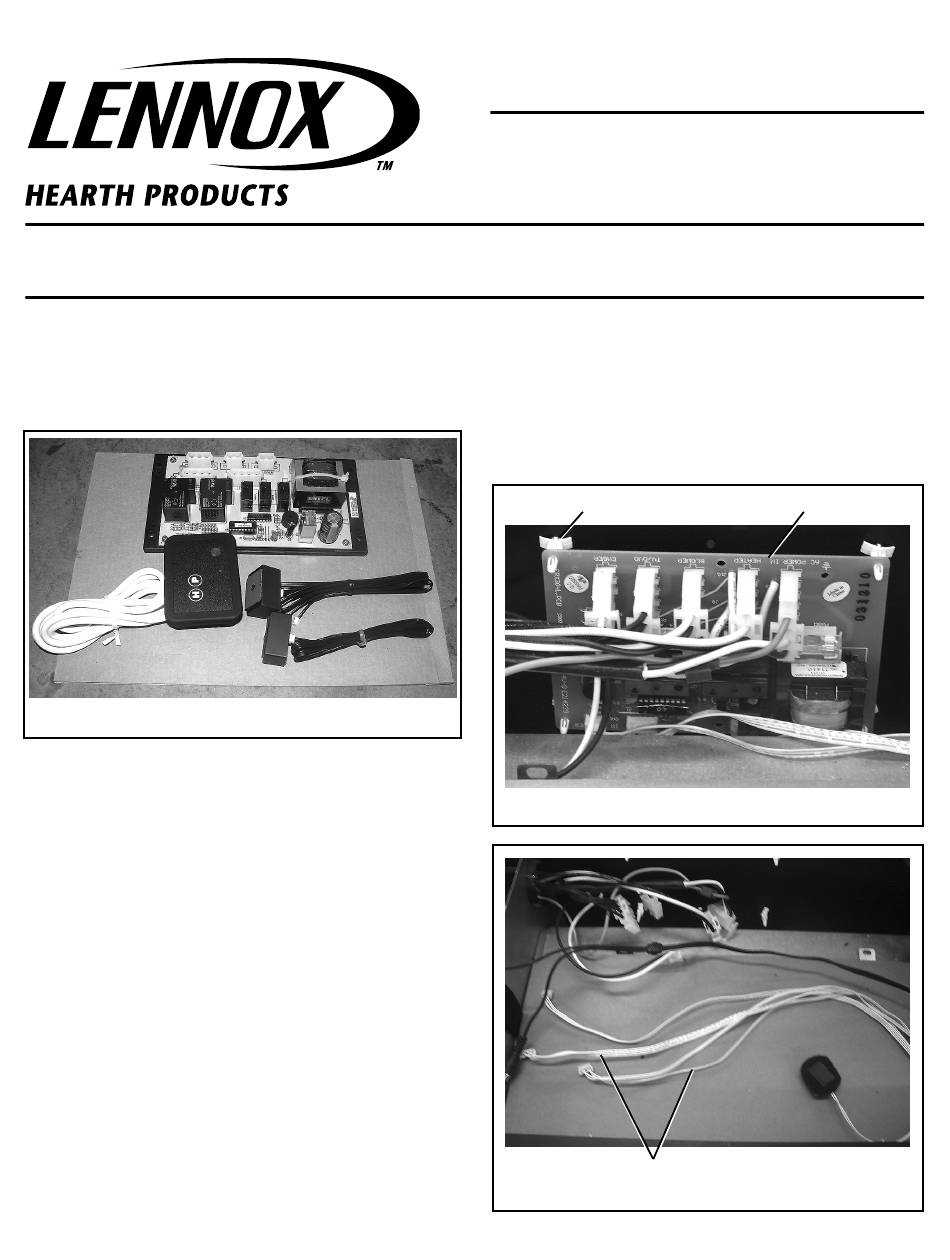

Figure 1 (Kit Number H1094)
IR Cables
Figure 2
