Lennox WS-PED Installation Instructions

INSTALLATION INSTRUCTIONS FOR INSTALLING PEDESTAL KITS FOR
USE WITh COUNTRY COLLECTION™ FREESTANDING WOODSTOVES
KIT CONTENTS
Please ensure that all these parts are included
1 ea. Pedestal Assembly
2 ea. 3/8"-16 x 3/8" Hex Bolts
2 ea. 3/8" Flat Washers
1 ea. Instruction Sheet
Pedestal Kits (all models)
Cat. No. Model
71108 WS-PED
71113 WL-PED
TOOLS NEEDED
9/16" Open End Wrench or Ratchet with 9/16" Socket
GENERAL INFORMATION
If you encounter any problems, need clarification of these instructions or
are not qualified to properly install this kit, contact you local distributor
or dealer.
Read this instruction sheet in its entirety before beginning the installa-
tion.
ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN ThE INSTAL-
LATION AND OPERATION MANUAL PROVIDED WITh ThE APPLIANCE
APPLY TO ThESE INSTRUCTIONS.
Check the contents of the kits upon receipt and check for any damaged
or missing parts. If there is hidden damage, notify your freight company
or Lennox Hearth Products dealer immediately.
CAUTION: Wear gloves during installation in case of sharp
edges on the stove.
Manufactured (Mobile) homes
In manufactured homes, this appliance must be bolted to the floor and
properly grounded to the chassis. An outside air kit (order Cat. No. 71112)
is also required. See the Installation and Operation Manual for details and
additional requirements for manufactured home installations. Also see
See steps 5, 6 and 7 on Page 2.
Where Used
S160, SA160
SS210, ST210, S260, ST310
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.
P/N 506033-16
Rev. A, 05/2009
INSTALLATION INSTRUCTIONS
Step 1. Remove the stove and pedestal from the cartons, if packaged,
upon receipt and check for any damaged or missing parts.
Step 2. Carefully put the stove on pedestal with the open end of the
pedestal facing the rear (see Figure 1).
STOVE UNATTENDED UNTIL IT IS BOLTED SECURELY
TO ThE PEDESTAL. IT COULD FALL CAUSING SERIOUS
INJURY OR DAMAGE.
Step 3. Line up the holes in the brackets on the pedestal with the
threaded holes in the bottom of the stove. Using a 9/16" wrench
or socket, secure the stove to the pedestal with the two 3/8" long
bolts and 3/8" standard washers. Be sure to see that the stove
is mounted squarely on the pedestal before tightening the two
bolts securely.
Step 4. When installing a pedestal on this stove you MUST plug the four
leg mounting bolt holes, located on the bottom of the stove in the
four corners, with the bolts that were used to mount the shipping
FAILURE TO INSTALL ThESE FOUR BOLTS PROPERLY
legs.
WILL RESULT IN REDUCED CONTROL OF ThE STOVE'S
COMBUSTION SYSTEM!
not be installed more than two full rotations to prevent lifting
the bricks off the bottom of the stove.

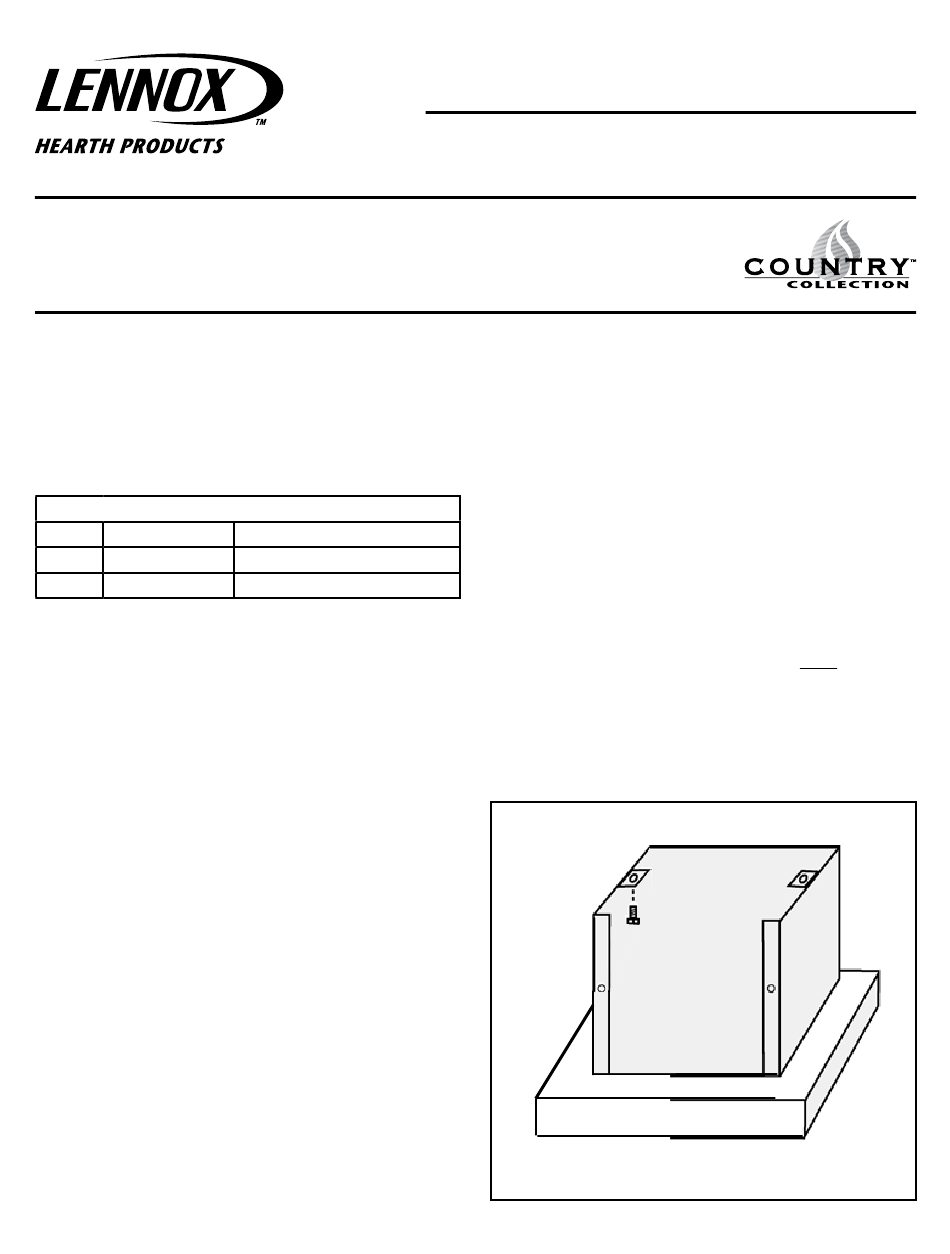

Figure 1
HEARTH PRODUCTS
KITS AND ACCESSORIES
WOODSTOVE PEDESTAL KITS
DO NOT LEAVE ThE
Caution: The two rear bolts should
FRONT
Pedestal
REAR
1
