Lennox ELITE Series Installation Instruction

INSTALLATION INSTRUCTIONS FOR INSTALLING SURROUND KITS FOR USE
wITh ThE RAvENNA AND DESIGNER GAS FIREPLACE INSERTS
KIT CONTENTS (See Figure 1)
1 ea. Surround Panel Set (Item #1)
1 ea. Surround Trim Set (Item #2)
2 ea. Elbowed Retainers (Item #3)
1 ea. Instruction Sheet

TOOLS NEEDED

Flat Bladed Screwdriver
Surround Panel Kits
f i r e - p a r t s . c o m
Description
29" h x 41" w, w/Black Trim (1 pc.)
29" h x 41" w, w/Black Trim
29" h x 48" w, w/Black Trim
33" h x 41" w, w/Black Trim
33" h x 48" w, w/Black Trim
Note: RDv = Ravenna (millivolt), DBv = Designer, RDv IPI/TCC = Ravenna (electronic)
* Surround Kits wITh a hole for mounting burner on/off switch
** Surround Kits wIThOUT a hole for mounting burner on/off switch
3
2 *
1

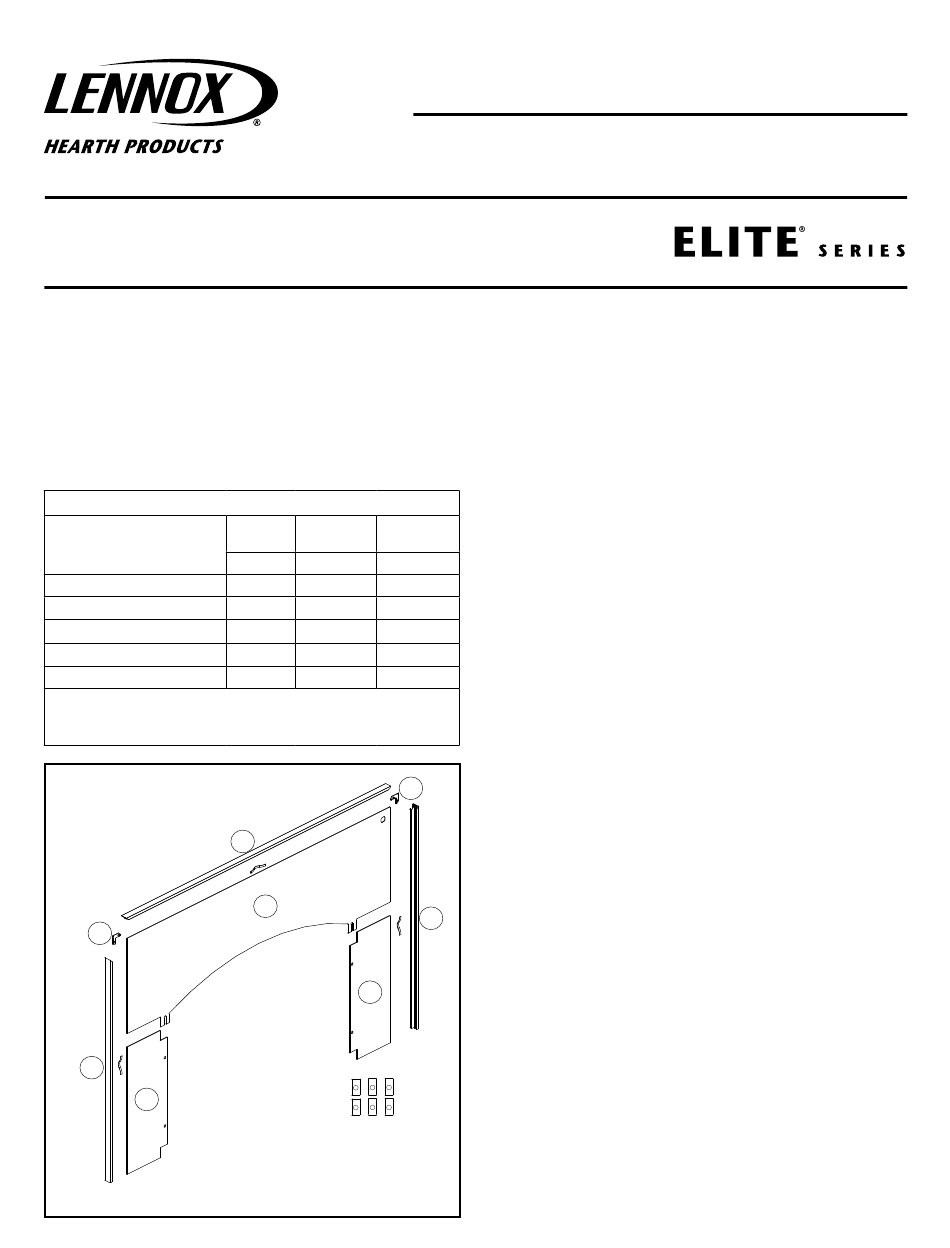

Figure 1 - Kit Contents
775261M
REv. B, 05/2012
RDv, DBv * RDv, DBv, RDv, DBv,
RDv IPI/TCC * RDv IPI/TCC **
Cat. No. Cat. No. Cat. No.
75362 h8553 h8520
75068 h8554 h8521
75069 h8555 h8522
75070 h8556 h8523
75071 h8557 h8524
3
2
*
1
*
1
*
* 3 ea. spring clips and 6
ea. speed nuts (located in
parts bag in firebox)
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

GENERAL INFORMATION

If you encounter any problems, need clarification of these instructions
or are not qualified to properly install this kit, contact you local distribu-
tor or dealer.
Read this instruction sheet in its entirety before beginning the installation.
All of these parts may scratch and bend, great care should be used
in handling them.
ALL wARNINGS AND PRECAUTIONS IN ThE INSTALLATION AND
OPERATION MANUAL PROvIDED wITh ThE APPLIANCE APPLY TO
ThESE INSTRUCTIONS.
TURN OFF ThE APPLIANCE AND ALLOw IT TO COMPLETELY COOL
BEFORE PROCEEDING.

INSTALLATION INSTRUCTIONS

Installation of the surround assembly is required prior to installing the
face kit (sold separately).
Step 1. Remove the speed nuts from the parts bag and install (with the
flat surface forward) on the six holes in the surround brackets,
three on each side of the insert (See A in Figure 2). A flat bladed
screwdriver may help in installing the nuts.
Step 2. Install all surround panels and trim with the insert positioned in
the fireplace but a few inches in front of its final location.
Step 3. If the insert face is to be installed on the insert, the sight obstruc-
2 tor that comes with the face must be installed prior to installing
the surround panels. With the curved edge down and the bent
top edge positioned toward the insert, slide the tabs at the ends
of the obstructor in the slots on the surround brackets (see C in
Figure 2).
HEARTH PRODUCTS
KITS AND ACCESSORIES
SURROUND KITS
MODELS RAvENNA™ AND DESIGNER™
1
1
