Lennox Shadowdance Series Log Placement Instructions

Log Placement Instructions FoR
SHaDoWDancE™ SERIES gaS LogS SEtS

gEnERaL InFoRMatIon

This log placement instructions addendum has been prepared to assist in
the placement of new or replacement log sets. The information provided
here is to be used in conjunction with the Installation and Operation
manual. Please read the Care and Operation Instructions completely
before completing the procedures detailed in this placement guide.
you encounter any problems, need clarification of these instructions
or are not qualified to properly install this log set, contact you local
distributor or dealer.
Read this instruction sheet in its entirety before beginning the
installation.
REtaIn tHESE InStRUctIonS FoR FUtURE REFEREncE
REaD IMPoRtant WaRnIngS BEFoRE PRocEEDIng.

WaRnIngS

• Do not attempt to install the logs until the ap-
pliance installation has been completed, the
gas line connected and tested for leaks and the
initial burner operation has been checked out.
• If logs are not installed according to the log installa-
tion instructions, flame impingement and improper
combustion could occur and result in soot and/or
excessive production of carbon monoxide (co), a
colorless, odorless, toxic gas.
• the size and position of the log set was engi-
neered to give the appliance a safe, reliable and
attractive flame pattern. any attempt to use a
different log set with the Shadowdance series gas
train models, LSVFSD-ng oR LSVFSD-LP will
void the warranty and will result in incomplete
combustion, sooting, and poor flame quality.
• Do not add extra logs or ornaments such as pine
cones, vermiculite or rock wool. Using these
added items can cause sooting.
• Do not place any lava rock on logs or burners.
this may cause sooting. only place lava rock
on floor of fireplace.
• all warnings and precautions in the installation
and operation manual provided with the appli-
ance apply to these instructions.
750,239M
REV. B /2007
If
*
*
The twig indicated is included in the 24" and 30" log sets only.
• The 30" log set also includes 2 ember chunks (shown in
Figure 9).
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
cat. no Model
H537 LSVFSD-8 Shadowdance™ 8" Log Set
H538 LSVFSD-24 Shadowdance 24" Log Set
H539 LSVFSD-30 Shadowdance 30" Log Set

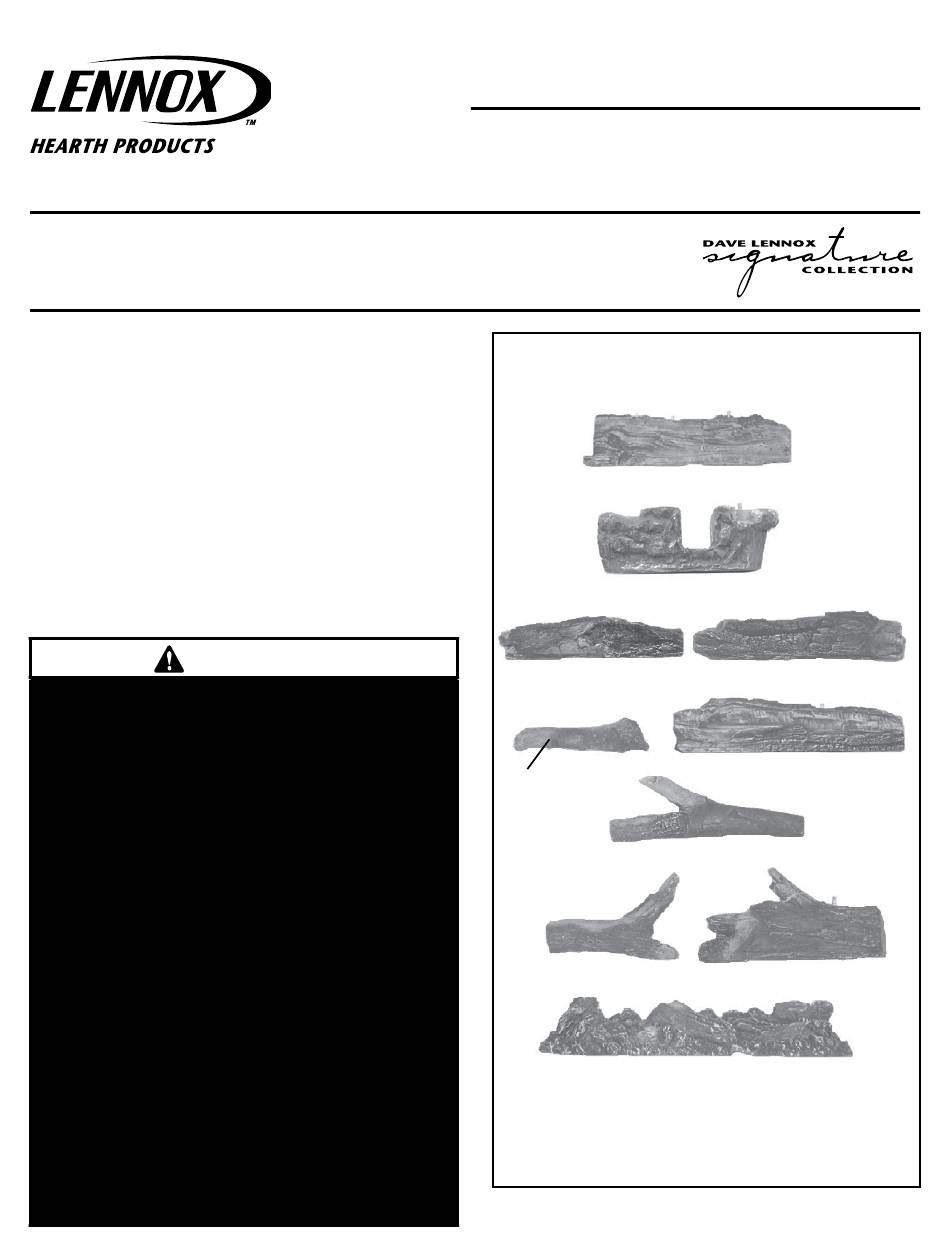

Log SEt
Rear Log
Rear Ember Bed
Left Top Log
Left Top Twig
Center Top Log
Left Front Log
Front Ember Bed
HEARTH PRODUCTS
KITS AND ACCESSORIES
Description
TM
Right Top Log
Middle Log
Right Front Log
