Lennox BELLA-BPK-T Installation Instructions

INSTALLATION INSTRUCTIONS FOR BRICK PANEL KITS
FOR USE WITH THE BELLA™ PELLET STOVE

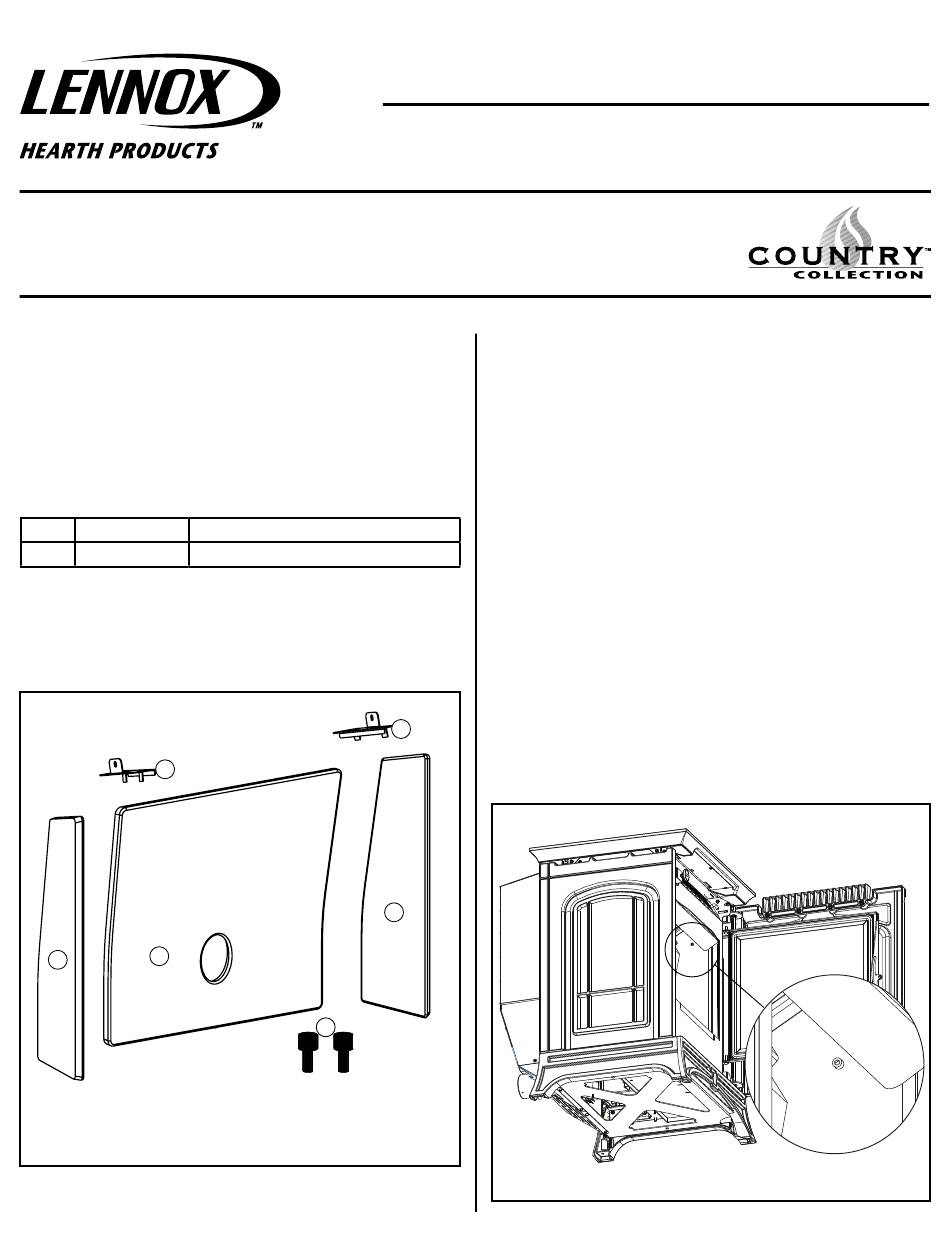

KIT CONTENTS (See Figure 1)
1 ea. Left Side Brick Panel (item 1)
1 ea. Right Side Brick Panel (item 2)
1 ea. Back Brick Panel (item 3)
1 ea. Left Brick Panel Bracket (item 4)
1 ea. Right Brick Panel Bracket (item 5)
2 ea. 10-24 x 3/8" Socket Head Screws (item 6)
1 ea. Instruction Sheet
Cat. # Model
H3484 BELLA-BPK-T Brick Panel Kit, Traditional
TOOLS NEEDED
5/32" Allen Wrench
4
3
1
Figure 1 - Kit Contents
506033-13
REV. NC 12/2008
Description
5
2
6
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
GENERAL INFORMATION
All of these parts may scratch and bend, great care should be used in
handling them.
If you encounter any problems, need clarification of these instructions or
are not qualified to properly install this kit, contact you local distributor
or dealer. Read this instruction sheet in its entirety before beginning the
installation. Failure to understand and follow these directions may result
in damage to the brick panels.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND OP-
ERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO THESE
INSTRUCTIONS.
TURN OFF THE STOVE AND ALLOW IT TO COMPLETELY COOL BEFORE
PROCEEDING.
INSTALLATION INSTRUCTIONS
Step 1. Open front glass door and remove burn-pot.
Step 2. Locate the socket head screw in the inside of the firebox (see Figure
2) and remove with 5/32" allen wrench.
Step 3. Repeat step 2 on opposite side.
Figure 2
HEARTH PRODUCTS
KITS AND ACCESSORIES
BRICK PANEL KITS
BELLA™
1
