1．Model name identification method
CUS 600M – 12 / □
Note : For "/EF"model , please refer to instruction manual of CUS600M/EF.
For "/C" model, to improve resistance against humidity and dust environment, solder side of assembled PCB is coated. However,
complete effect is not guaranteed, because some areas on the board are not coated.

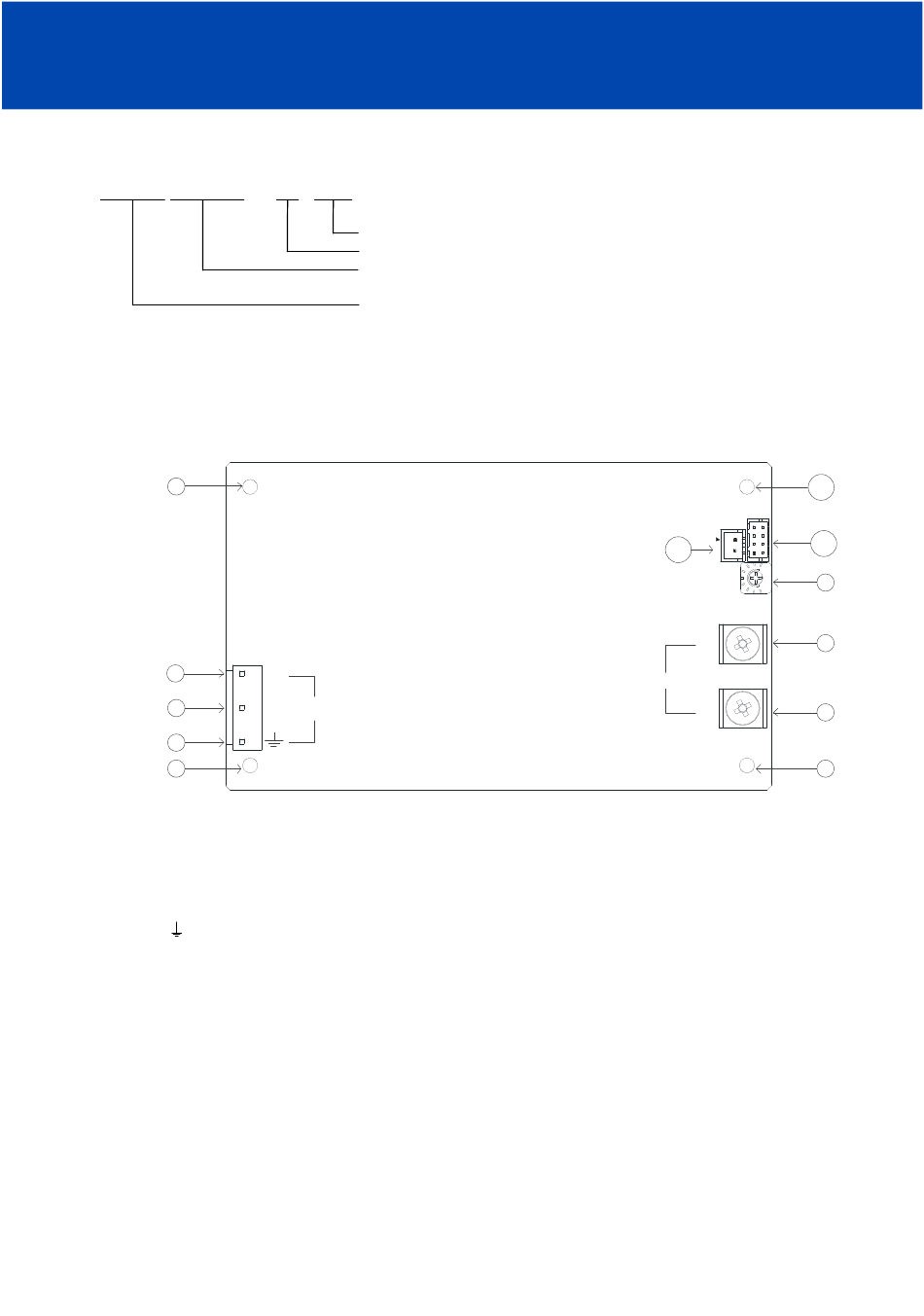

2．Terminal Explanation
1
2
3
4
5
① Mounting hole (hole diameter : φ3.5mm), This hole is not connected to functional earth of CN1. The mounting surface of
the spacer should be within Max 7mm.
② L : Input terminal φLive line (Fuse in line.).
③ N : Input terminal Neutral line (Fuse in line.).
④ : Functional earth terminal.
⑤ Mounting hole (hole diameter : φ3.5mm), This hole is connected to functional earth of CN1. The mounting surface of the
spacer should be within Maxφ7mm.
⑥ Mounting hole (hole diameter : φ3.5mm)
EMC characteristics. For Class II end equipment, this hole can't be connected to
⑦ V-: - Output Terminal.
⑧ V+: + Output Terminal.
⑨ VR51 : Output voltage adjustment trimmer only for /ADJ sub-model. The output voltage rises when the trimmer is turned
clockwise.
⑩ CN61 Terminal.
⑪ CN62 Terminal
⑫ Same as mounting hole
Option (*1)
Rated Output Voltage
Output Power (actual output
power refer to the specification)
Series Name.

COMPONENT SIDE

CN1
L
N
INPUT
.
○
1 .
(*1)
For Class I end equipment, this hole should be connected to
.
5/22
TDK-Lambda
CUS600M
INSTRUCTION MANUAL
Blank : Standard type.
/ ADJ : Output voltage adjustable model.
/ SF : Single fuse model.
/ EF : End fan model.
/ C : Solder side coating
CN61
CN62
11
VR51
V+
CN51
OUTPUT
V-
○ .
5
12
10
9
8
7
6
