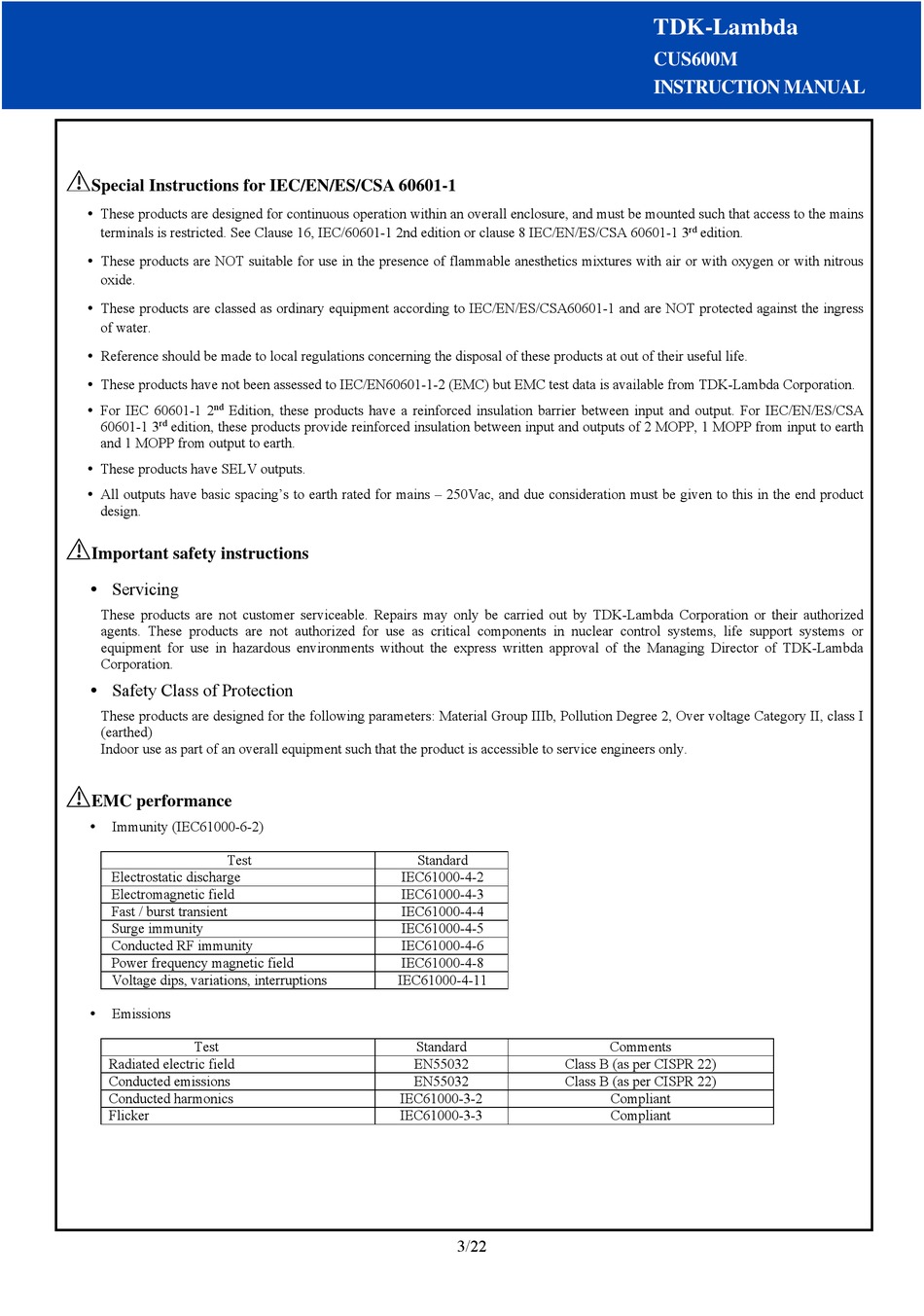

Special Instructions for IEC/EN/ES/CSA 60601-1
These products are designed for continuous operation within an overall enclosure, and must be mounted such that access to the mains
terminals is restricted. See Clause 16, IEC/60601-1 2nd edition or clause 8 IEC/EN/ES/CSA 60601-1 3
These products are NOT suitable for use in the presence of flammable anesthetics mixtures with air or with oxygen or with nitrous
oxide.
These products are classed as ordinary equipment according to IEC/EN/ES/CSA60601-1 and are NOT protected against the ingress
of water.
Reference should be made to local regulations concerning the disposal of these products at out of their useful life.
These products have not been assessed to IEC/EN60601-1-2 (EMC) but EMC test data is available from TDK-Lambda Corporation.
For IEC 60601-1 2
nd
Edition, these products have a reinforced insulation barrier between input and output. For IEC/EN/ES/CSA
rd
60601-1 3
edition, these products provide reinforced insulation between input and outputs of 2 MOPP, 1 MOPP from input to earth
and 1 MOPP from output to earth.
These products have SELV outputs.
All outputs have basic spacing's to earth rated for mains – 250Vac, and due consideration must be given to this in the end product
design.
Important safety instructions
Servicing
These products are not customer serviceable. Repairs may only be carried out by TDK-Lambda Corporation or their authorized
agents. These products are not authorized for use as critical components in nuclear control systems, life support systems or
equipment for use in hazardous environments without the express written approval of the Managing Director of TDK-Lambda
Corporation.
Safety Class of Protection
These products are designed for the following parameters: Material Group IIIb, Pollution Degree 2, Over voltage Category II, class I
(earthed)
Indoor use as part of an overall equipment such that the product is accessible to service engineers only.
EMC performance
Immunity (IEC61000-6-2)
Test
Electrostatic discharge
Electromagnetic field
Fast / burst transient
Surge immunity
Conducted RF immunity
Power frequency magnetic field
Voltage dips, variations, interruptions
Emissions
Test
Radiated electric field
Conducted emissions
Conducted harmonics
Flicker
Standard
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
Standard
EN55032
Class B (as per CISPR 22)
EN55032
Class B (as per CISPR 22)
IEC61000-3-2
IEC61000-3-3
3/22
TDK-Lambda
CUS600M
INSTRUCTION MANUAL
rd
edition.
Comments
Compliant
Compliant
