Pressure transmitter COMPACT ECO
Type series CA1xx0
Operating Instructions
1
General Information ...................................................................................................... 2
1.1
General Safety Notes .............................................................................................. 2
1.2
Intended Use ........................................................................................................... 2
1.3
Conformity With Eu Regulations .............................................................................. 2
1.4
Atex Approval ........................................................................................................ 2
2
Transportation And Storage .......................................................................................... 2
3
Installation And Commissioning .................................................................................. 3
3.1
Mechanical Installation ............................................................................................ 3
3.2
Electrical Connection .............................................................................................. 3
4
Operation ........................................................................................................................ 4
4.1
Zero Point Correction ............................................................................................... 4
4.2
Devices With Diaphragm Seal ................................................................................. 4
4.3
Maintenance / Service ............................................................................................. 4
5
Disassembly ................................................................................................................... 5
Questions about this device? Hotline +49 (0) 4408 804 - 444
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Deutschland
Tel.: +49 (0) 4408 804-0 Fax: +49 (0) 4408 804-100 e-mail: info@labom.com www.labom.com
BA_075
Rev 1H6
Page 1/1
Advertisement
Table of Contents
Related Manuals for Labom COMPACT ECO CA1 0 Series
Summary of Contents for Labom COMPACT ECO CA1 0 Series
-

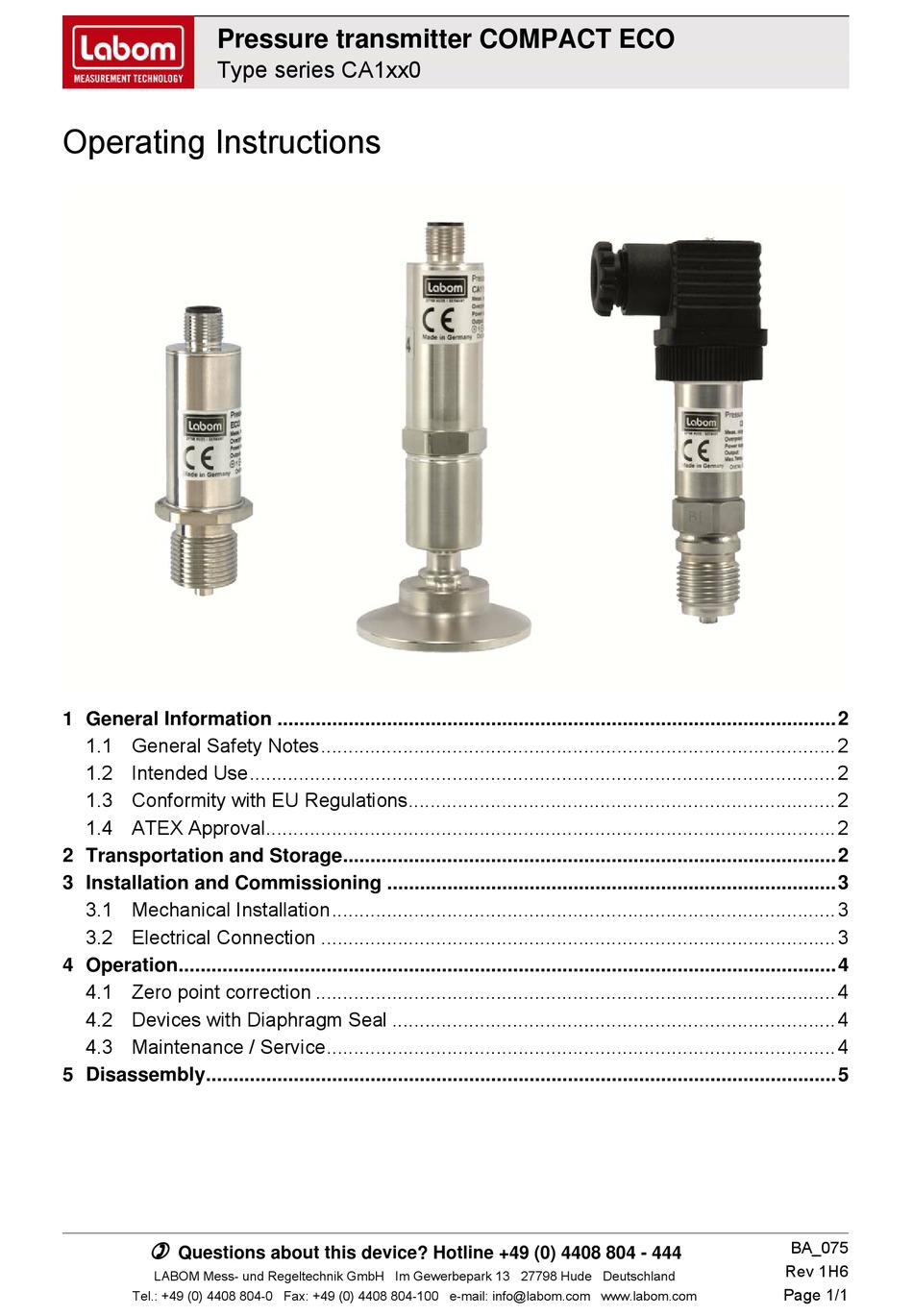

Page 1: Operating Instructions
BA_075 Questions about this device? Hotline +49 (0) 4408 804 - 444 Rev 1H6 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Deutschland Page 1/1 Tel.: +49 (0) 4408 804-0 Fax: +49 (0) 4408 804-100 e-mail: info@labom.com www.labom.com... - Page 2 In addition to this instruction, be sure to observe all statutory requirements, applicable standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 Installation and Commissioning Ensure that the device is suitable for the intended application with respect to pressure range, overpressure limit, media compatibility, temperature range and process connection. After the mechanical installation and electrical connection is completed, the device is ready for operation as soon as the power supply is switched on. Mechanical Installation Use gaskets, if required, that are suitable for the process connection and resistant to the media.
- Page 4 Pressure transmitter and diaphragm seal are a closed system that must not be separated. You can find further information about diaphragm seals in the document TA_031 on www.labom.com. Maintenance / Service When properly installed in accordance with applicable specifications, this device is maintenance-free.
- Page 5 Disassembly Switch off the power supply to the device before disconnecting the electrical connections. Once this is done, the device may be mechanically removed. Warning Opening pressurized lines might cause severe injuries. Danger of severe injuries or damage Relieve the process pressure before attempting to remove the device. Shut off the pressure supply for all feed lines to the device and relieve the pressure in them.
