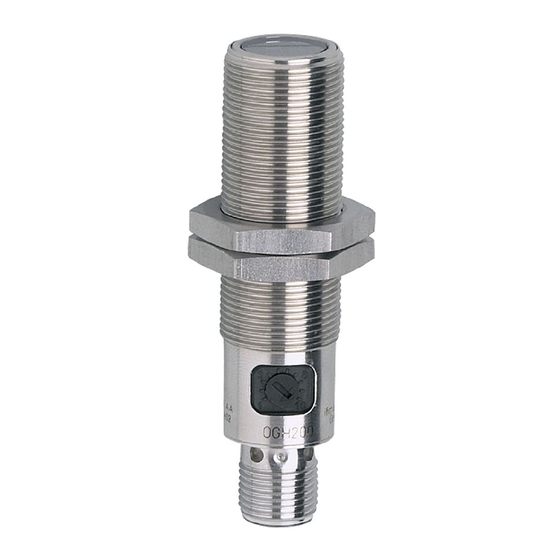

- Page 1 Operating instructions Diffuse reflection sensor OGT3xx OGT5xx...
-
Page 2: Functions And Features
Functions and features The diffuse-reflection sensor detects objects and materials without contact and indicates their presence by a switched signal. Range: see type label. Installation ► Align the photocell and fasten to a mounting device. Electrical connection ► Disconnect power. ►... - Page 3 ► Remove the object, then press the [OUT off] button > LED goes out The sensor is to switch when no object is detected: Press the [OUT on] button when no object is present. Position the object and press the [OUT off] button. Setting of the maximum sensitivity The sensor is to switch when the object is detected: ►...
