TECHNICAL SPECIFICATIONS
VIDEO
Format
HDMI 1.4 / VGA
DVI Compliance
Single-link DVI-D 1.1 w/ adaptor
HDCP Compliance 1.0/1.1
Resolution
Up to 3840 x 2160 @30Hz
(1) HDMI Local loop with Digital L-
Outputs
PCM Audio, (1) VGA HD15 Analog
(1) HDMI with Digital L-PCM Audio,
Inputs
DVI with HDMI to DVI adapter
Maximum Cable
HDMI 20 ft.
Length
Video Stream
MPEG-4 Part 10 / AVC (H.264)
Output
AUDIO
Audio Input
(1) 3.5 mm, analog stereo
(1) 3.5 mm local loop, analog ste-
Audio Output
reo
Audio Stream
MPEG4-GENERIC, MPEG4-LATM
Support
OTHER
Network
(1) RJ-45
Connector
Streaming
RTP, RTSP, RTCP, UDP
Protocols
Command
TCP/IP, UPnP, HTTPS
Protocols
(1) Type B Female, Firmware up-
USB
date only
(1) DB9 Female, Function forth-
RS-232
coming
Compression
H.264/Mpeg4 Part 10 (AVC)
4 Pin-Din
Power, Do not use.
Connector
Power Adapter
PS5VDC4A
Dimensions
9" W x 4" D x 1.8" H
Weight
.75 lbs.
Working Temp.
32 to 113°F (0 to 45 °C )
Working Humidity 20 to 80% RH (no condensation)
Storage Temp.
-40 to 131°F (-40 to 55 °C )
Storage Humidity 5 to 95% RH (no condensation)
WHAT'S IN THE BOX
PART NO.
QTY DESCRIPTION
1080p H.264 Streaming
SAVI-ST-E300
1
Encoder
PS5VDC4A
1
Power Adapter
1
Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170525
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

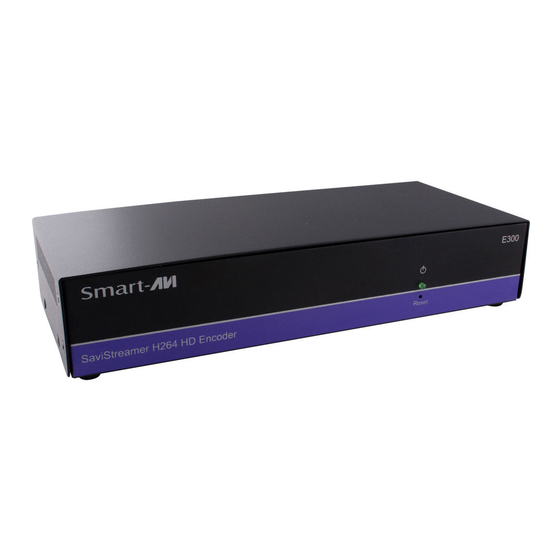

SaviStreamer E300
Encoder
Full HD, Low-Bandwidth
1080p Streaming Encoder
Capture and stream or record high-
definition A/V signals from a media
source and create a seamless
extension over IP to one or more
decoder units
Quick Start Guide
