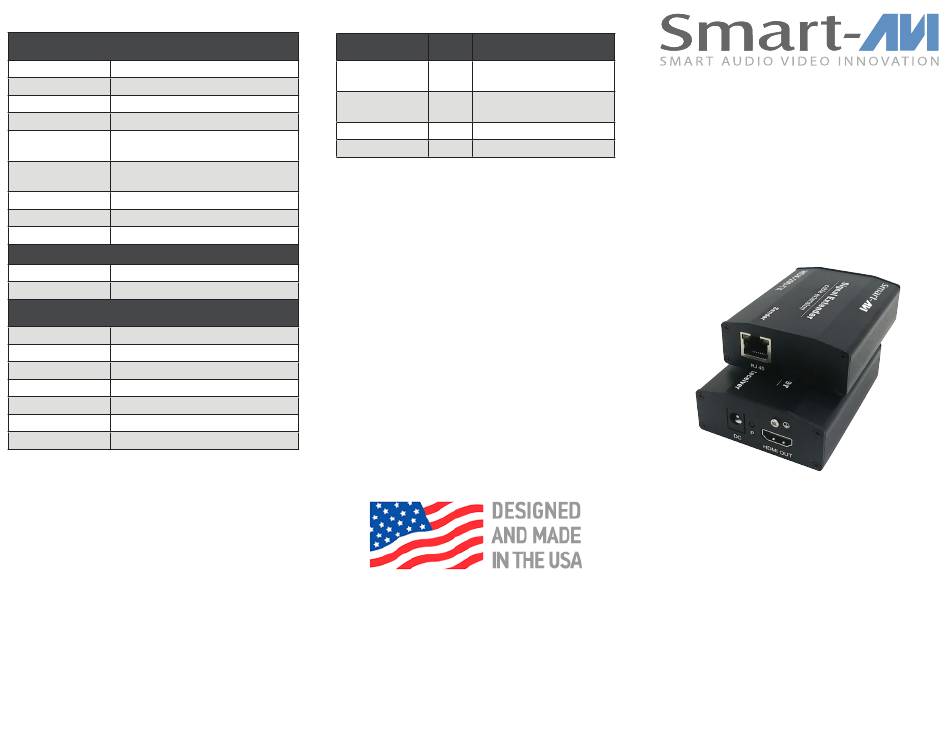

SMART-AVI HDX-200 Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO & AUDIO
Format HDMI1.3
Input Interface (1) HDMI Type A 19 pin (female)
Output Interface (1) HDMI Type A 19 pin (female)
Resolution Up to 1080p
24-bit/30-bit deep color/
Color Depth
36-bit deep color
DTS/HD/Dolby-tureHD/LPCM7.1/
Audio formats
DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Distance Up to 500 ft (point to point)
SYSTEM
Input Interface (1) RJ-45
Output Interface (1) RJ-45
OTHER
Power 5V 2A
Dimensions 3.2"W x 2.5"L x 1"H
Weight 0.6 lbs
Approvals UL, CE. ROHS Complaint
Operating Temp. 5-131°F (-15-55 °C)
Storage Temp. -40-176°F (-40-80 °C)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDMI Transmitter over
HDX-200-TX 1
CAT5 up to 500 feet
HDMI Receiver over
HDX-200-RX 1
CAT5 up to 500 feet
Power Supply 2 PS5VDC2A
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2917 E Alexander Rd.
North Las Vegas, NV 89030
SmartAVI.com

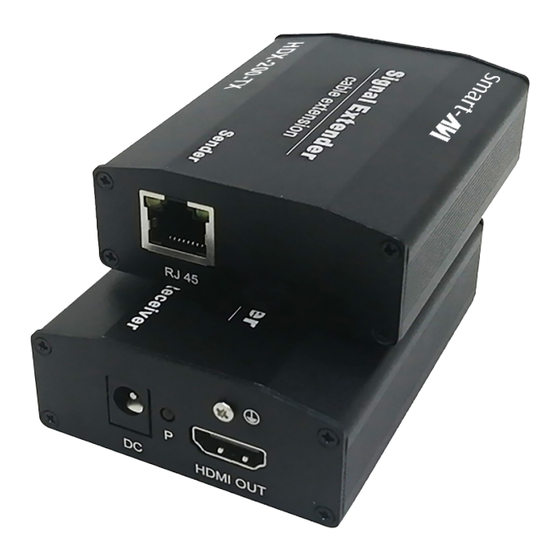

HDX-200
HDMI IP Extender/Splitter
Over CAT5
EXTEND FHD HDMI
UP TO 500 FEET TO ONE
OR MULTIPLE LOCATIONS
USING STANDARD CAT5 CABLING
WITH AN ETHERNET SWITCH
Quick Start Guide
