TECHNICAL SPECIFICATIONS
VIDEO
Format
HDMI 1.4
DVI Compliance
Single-link DVI-D 1.1 w/
adaptor
HDCP Compliance
1.0/1.1
Video Bandwidth
Single-link 340MHz
[10.2Gbps]
Resolution
Up to 3840 x 2160 @30Hz
Input Interface
(1) HDMI [7.1ch audio-
video], (1) VGA
Output Interface
(1) HDMI [7.1ch audio-
video]
Connector
HDMI Type-A [19-pin
female], VGA, USB Type-B,
RS-232, LAN,
Stereo Audio (3.5 mm jack
socket)
Maximum Cable
20 ft
Length
CONTROL
Front Panel
Tactile Switches
IR
Via Remote Control with
IR Type 3
PC
RS-232 Control
TCP/IP
Via web browser
OTHER
Power Supply
External 100-240 VAC/
12VDC4A
Dimensions
8.5" W x 1.02" H x 4" D
Weight
4 lbs
Approvals
UL, CE, ROHS Compliant
Operating Temp.
32 to 95 °F (0 to +35 °C)
Storage Temp.
-4-185 °F (-20-85 °C)
Humidity
Up to 95%
WHAT'S IN THE BOX
PART NO.
QTY DESCRIPTION
SAVI-ST-E300
1
1080p H.264 Streaming
Encoder
12VDC4A
1
Power Supply
User Manual
1
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200
Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

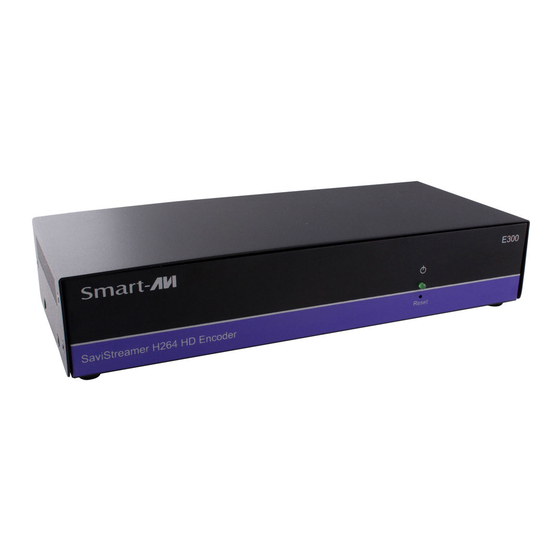

SaviStreamer
E300 Encoder
HD Video Streaming Encoder
AV-over-IP 1080p H.264
Streaming Video Encoder
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI SaviStreamer E300
Summary of Contents for SMART-AVI SaviStreamer E300
- Page 1 TECHNICAL SPECIFICATIONS VIDEO OTHER Format HDMI 1.4 Power Supply External 100-240 VAC/ 12VDC4A DVI Compliance Single-link DVI-D 1.1 w/ adaptor Dimensions 8.5” W x 1.02” H x 4“ D SaviStreamer HDCP Compliance 1.0/1.1 Weight 4 lbs Video Bandwidth Single-link 340MHz Approvals UL, CE, ROHS Compliant [10.2Gbps]...
- Page 2 5. Optionally connect E-300 to a display via HDMI or VGA output to preview streaming content puter to the RS-232 port of the E-300. Use terminal 6. Power on the SaviStreamer E300. client software to connect to the E-300. Make sure to use the standard communication mode of 9600 bps, 8, N, 1, N.
