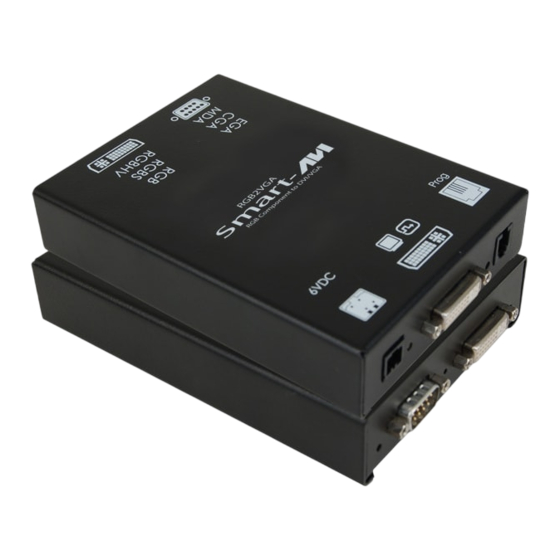

THE RGB TO DVI(/VGA) CONVERTER
Welcome to the RGB to DVI(/VGA) Converter
Family!
Thank you for purchasing an RGB to DVI(/VGA) Converter! We appreciate your business,
and we think you'll appreciate the many ways that your enhanced RGB Graphic system will
save you money, time, and effort.
That's because our RGB to DVI(/VGA) Converter is all about breaking away from the
traditional model of attaching a new display to an old graphic source. You can encounter
many potential problems in connecting a flat screen to an RGB graphic source – unless you
use our RGB to DVI(/VGA) Converter products! Attach a flat screen to any graphic source
and match the output to your requirements. The RGB to DVI(/VGA) Converter – the one-stop
answer for all your RGB adapting needs! And with a special adaptor cable (not supplied as
standard), you can also attach a screen to a CGA or EGA source.
This manual will tell you all about your new RGB to DVI(/VGA) Converter, including how
to install, operate, and troubleshoot it. For an introduction to the Converter, see Chapter 2.
The Converter product codes covered in this manual are:
K238-3F: RGB to DVI (or VGA) Converter
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGB2VGA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMART-AVI RGB2VGA

  • Page 1 THE RGB TO DVI(/VGA) CONVERTER Welcome to the RGB to DVI(/VGA) Converter Family! Thank you for purchasing an RGB to DVI(/VGA) Converter! We appreciate your business, and we think you’ll appreciate the many ways that your enhanced RGB Graphic system will save you money, time, and effort.
  • Page 2 THE RGB TO DVI(/VGA) CONVERTER Copyrights and Trademarks ©2005. All rights reserved. This information may not be reproduced in any manner without the prior written consent of the manufacturer. Information in this document is subject to change without notice and the manufacturer shall not be liable for any direct, indirect, special, incidental or consequential damages in connection with the use of this material.
  • Page 3 EMPTY PAGE...
  • Page 4 THE RGB TO DVI(/VGA) CONVERTER EUROPEAN UNION DECLARATION OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, together with the specified cables and the maximum cable length <3m, the Units are shielded against the generation of radio interferences in accordance with the application of Council Directive 89/336/EEC as well as these standards: EN 55022: 1999...
  • Page 5 SAFETY PRECAUTIONS AND INSTALLATION GUIDELINES Safety Precautions and Installation Guidelines To ensure reliable and safe long-term operation, please note the following installation guidelines: • Only use in dry, indoor environments. • The Converter and any power supplies can get warm. Do not locate them in an enclosed space without any airflow.
  • Page 6: Table Of Contents

    THE RGB TO DVI(/VGA) CONVERTER Contents 1. Quick Setup Video Input/Output Command Summary 2. Overview Introduction Glossary Features Product Range Compatibility How to Use This Guide 3. Installation Package Contents Connection Cable Requirements System Setup Diagnostic LEDs 4. Device Control Opening the OSD Using the OSD 5.
  • Page 7 CONTENTS Appendix A: Example Applications Appendix B: Rack Mount Options Appendix C: System Upgrade Appendix D: Supported Video Modes Appendix E: Calling Technical Support Appendix F: Specifications Appendix G: Connectors and Cables...
  • Page 8: Quick Setup

    THE RGB TO DVI(/VGA) CONVERTER Quick Setup This section briefly describes how to install your RGB to DVI(/VGA) Converter and optimize the video signals. Unless you are an experienced user, we recommend that you follow the full procedures described in the rest of this manual. Refer to the command summary on page 10 when following this procedure.
  • Page 9: Video Input/Output

    QUICK SETUP Video Input/Output If possible, always use a DVI output to a monitor from the RGB to DVI(/VGA) Converter, especially with flat screens. This provides the optimum video signal. If you use a VGA output from the RGB to DVI(/VGA) Converter, it must convert the digitized data to analogue values.
  • Page 10: Command Summary

    THE RGB TO DVI(/VGA) CONVERTER Command Summary The following table summarizes the remote control buttons and ‘hot’ key command sequences used in system configuration and video tuning on the RGB to DVI(/VGA) Converter. Command Infrared Remote Control (IR-RC) Utility * Exit OSD <X>...
  • Page 11: Overview

    OVERVIEW Overview Introduction VGA is the most familiar of the various graphics data standards or protocols for connecting a display (monitor or flat screen) to a graphic source. For many years, computers have generally connected to a display through a VGA interface. However, with the increased popularity of TFT flat screens, a new standard has been developed: DVI.
  • Page 12 THE RGB TO DVI(/VGA) CONVERTER PLC – programmable Video-Equipment Legacy CPU’s logic controller (DVD, VCR, Set-top) RGB to DVI(/VGA) Converter Figure 1 RGB to DVI(/VGA) Converter system...
  • Page 13: Features

    OVERVIEW Features RGB to DVI(/VGA) Converter offers the following features: • Support for RGB and RGBS in progressive scan or interlaced mode. • Support for EGS/CGA using the optional Adaptor + Cable (436-EG). • Selectable output for attached display: 640x480, 800x600, 1024x768, 1280x1024. •...
  • Page 14: Product Range

    THE RGB TO DVI(/VGA) CONVERTER Product Range This table lists the product codes for the converter and its various upgrade kits: RGB to DVI(/VGA) Converter K238-3F RGB to DVI (or VGA) Converter Upgrade Kits 436-EG EGA/CGA to DVI Adaptor + Cable 437-1G 19”/1U Rackmount Kit for up to 3 devices 437 -G2...
  • Page 15: Compatibility

    OVERVIEW Compatibility Interface Compatibility • RGB: Video signal consisting of R (red) G (green) and B (blue) signals. The signals have a level of 0.7Vpp. The Green-Signal also carries the (composite) synchronisation signals. • RGBS: Video signal consisting of R (red) G (green) and B (blue) signals and the additional (composite) SYNC signal.
  • Page 16: How To Use This Guide

    THE RGB TO DVI(/VGA) CONVERTER How to Use This Guide This guide describes the installation and configuration of the RGB to DVI(/VGA) Converter. Although the connection and operation of the system is relatively straightforward, you should consider the following before getting started: Connection &...
  • Page 17: Installation

    INSTALLATION Installation For first-time users, we recommend that you carry out a test placement, confined to a single room, before commencing full installation. This will allow you to identify and solve any cabling problems, and experiment with the RGB to DVI(/VGA) Converter more conveniently.
  • Page 18: Connection Cable Requirements

    THE RGB TO DVI(/VGA) CONVERTER Connection Cable Requirements To connect the RGB to DVI(/VGA) Converter to your graphic source you will need: • RGB(S): 3 (4 with RGBS) coaxial cables type RG59B/U or similar, terminated with BNC connectors at the converters end. Please ensure that the connection is tension-free. •...
  • Page 19: System Setup

    INSTALLATION System Setup To install your RGB to DVI(/VGA) Converter: Switch off all devices. Connect your TFT directly to the device; connect a VGA screen by using the equipped DVI-I to VGA adapter. Connect the VGA monitor cable to the adapter; then plug in the adapter into the device.
  • Page 20 THE RGB TO DVI(/VGA) CONVERTER DVI-I Connectors Connect to RGB output Connect to RGB monitor / TFT (looped) or video source Connect to 6V Programming connector – Power supply for firmware upgrades Figure 2 RGB to DVI(/VGA) Converter Figure 4 RGB-to-DVI Cable EGA/CGA to DVI Converter type 436-EG...
  • Page 21: Diagnostic Leds

    INSTALLATION Diagnostic LEDs Each RGB to DVI(/VGA) Converter is fitted with three indicator LEDs: Monitor Detect, Device Ready and Video Signal. The Monitor Detect LED is to the left of the video output connector. The Device Ready and Video Signal LEDs are next to the Power socket. The location of the LEDs is shown below: Monitor Detect Video Signal...
  • Page 22: Device Control

    THE RGB TO DVI(/VGA) CONVERTER Device Control If you are using the CGA/EGA input (with adaptors only) or use an RGB format stored in the internal table, no adjustment should be required. In other cases, you may need to optimize the output using the RGB to DVI(/VGA) Converter’s on-screen display (OSD).
  • Page 23: Opening The Osd

    DEVICE CONTROL Opening the OSD You can access the OSD in three ways: • Using the equipped Infrared Remote Control (IR-RC). • Using our WINDOWS™ program with a serial connection to the programming port. There is a summary of OSD commands on page 10. Using the IR-RC For direct brightness adjust For direct contrast adjust...
  • Page 24 THE RGB TO DVI(/VGA) CONVERTER Using our WINDOWS™ program On all devices, you can use our small WINDOWS™ program, running on a WINDOWS™ computer for OSD access: Download the program from our server. Connect the programming cable to the programming port. Connect the programming cable to the serial port of your computer, where the program is running.
  • Page 25: Using The Osd

    DEVICE CONTROL Using the OSD The OSD is an icon-based utility. The top line of symbols shows the main menu categories: Input Select Specify whether the input is RGB (RGBS) or digital (for future expansion) Scale Mode Select the screen resolution of the attached display and select one of four scaling modes.
  • Page 26 THE RGB TO DVI(/VGA) CONVERTER In many cases, after you have chosen a new setting, the OSD displays the following confirmation message (or similar): Highlight the Yes button and press the Enter key (<S> key in Windows program) to confirm your choice. Alternatively, highlight the No button and press the Enter key (<S> key in Windows program) to discard the new setting and restore the previous value.
  • Page 27 DEVICE CONTROL Input Select (for future expansion) disabled funtion for this firmware level Select RGB (RGBS) source Select digital input `(for future expansion) Return to main menu Figure 5 Input Select menu Physical Resolution of attached screen Use the Scale Mode menu to specify the physical resolution of the attached screen; this ensures the best matching pictures on a TFT screen.
  • Page 28 THE RGB TO DVI(/VGA) CONVERTER Output Scaling Use the Output Scaling submenu to specify the best match between screen size and user requirements. Four modes are available: 1:1 – the picture is displayed with its original size and aspect ratio within a black frame.
  • Page 29 DEVICE CONTROL Brightness/Contrast Use this menu to adjust the brightness and contrast of the video image, or to adjust the black level of a display. Adjust Brightness Adjust Contrast Adjust Black level Return to main menu Figure 8 Brightness-Contrast menu Select Colors and Color Temperatures Use the Colors menu to adjust the color balance of the video image.
  • Page 30 THE RGB TO DVI(/VGA) CONVERTER Color Temperature Use the Color Temperature submenu to set up the color profile in RGB color space or by using one of five predefined color temperatures. To view this menu, select the Colors icon from the main menu and then select the Color Temperature icon. Set up colors in RGB space –...
  • Page 31 DEVICE CONTROL Tools Use the Tools menu to set the position and size of the OSD window, adjust the sharpness for a fixed resolution setting, reset the RGB to DVI(/VGA) Converter system to its factory default settings or provide a test pattern. Set the position of the OSD window (see OSD, page 31) Calling Factory Reset Sub-Menu...
  • Page 32 THE RGB TO DVI(/VGA) CONVERTER Factory Reset Use the Factory Reset submenu to reset the unit to factory defaults, save user presets or restore user presets Factory Reset: Restore originally equipped Setup data Restore User Data: Restore previously saved User data Save actual User Data in internal memory Back to Tools menu Figure 14...
  • Page 33 DEVICE CONTROL Video Mode Use the Video Mode menu to select one of twelve Video Modes for a specific resolution. Please see (page 45) for more information about Video Modes and supported screen resolutions. Choice of twelve different video modes. Please see also page 48 Figure 16 Video Mode menu...
  • Page 34: Monitor Setup

    THE RGB TO DVI(/VGA) CONVERTER Monitor Setup This procedure is designed to correct for discrepancies in the video signal due to analogue/digital video conversion by the Monitor. You do not need to follow this procedure if you have: • A CRT monitor connected to the RGB to DVI(/VGA) Converter through the VGA input •...
  • Page 35: Rgb To Dvi(/Vga) Converter Setup

    RGB TO DVI(/VGA) CONVERTER SETUP RGB to DVI(/VGA) Converter Setup Overview You need to optimize the video signal across your RGB to DVI(/VGA) Converter system if it undergoes one or more conversions between analog and digital formats. The exact procedure depends on your RGB to DVI(/VGA) Converter setup: Graphics Monitor...
  • Page 36: Setup Instructions For Rgb Input

    THE RGB TO DVI(/VGA) CONVERTER Setup Instructions for RGB Input This procedure is designed to correct for discrepancies in the video signal due to analogue/digital video conversion by the RGB to DVI(/VGA) Converter. You do not need to follow this procedure if you have a digital signal, connected to the RGB to DVI(/VGA) Converter.
  • Page 37 RGB TO DVI(/VGA) CONVERTER SETUP Problems with the pixel phase will cause horizontal noise, horizontal wave-formed lines, flicker or smearing with zebra-pattern (see Figure 17b): From the OSD’s Image menu, select the menu command: Manually adjust the best phase (best point for A/D conversion within each pixel).
  • Page 38: Setup Of A New Video Mode

    THE RGB TO DVI(/VGA) CONVERTER Setup of a new Video Mode The RGB to DVI(/VGA) Converter is preinstalled with several video modes and screen resolutions in various refresh rates suitable for using with an RGB source. If the mode generated by your RGB graphic source is not represented, you need to Setup a custom mode. The steps are similar to 6.2 Setup Instructions for RGB Input.
  • Page 39 RGB TO DVI(/VGA) CONVERTER SETUP 11. Problems with the pixel phase will cause horizontal noise, horizontal wave-formed lines, flicker or smearing with zebra-pattern (see Figure 17b on page 39): In the Image menu option (see page 32) select the command icon: Manually adjust the best phase (best point for A/D conversion within each pixel).
  • Page 40: Troubleshooting Video

    THE RGB TO DVI(/VGA) CONVERTER Troubleshooting Video There isn’t a picture. Check the power supply connection at the RGB to DVI(/VGA) Converter. Is the Device Ready (Red LED) illuminated (see page 21)? If not, the internal power- supply may be damaged or there may be an internal error. Check if the Monitor detect LED is illuminated (see page 21)? If not, there may be a problem with the Interconnection cable.
  • Page 41 TROUBLESHOOTING There is horizontal jitter on the picture. The pixel clock and/or phase is misaligned: Refer to page 36. Characters are smeared. The phase is misaligned: Refer to page 36. Thin vertical lines are missing. The phase is misaligned: Refer to page 36. No output to a connected CRT or TFT with VGA input.
  • Page 42: Appendix A: Example Applications

    THE RGB TO DVI(/VGA) CONVERTER Appendix A: Example Applications This section illustrates some specific applications using the RGB to DVI(/VGA) Converter: For more details, please discuss suitable converter architecture with Technical Support (see Appendix E: Calling Technical Support). K238-3F RGB to DVI(/VGA) Converter attached to a PLC Figure 18 RGB to DVI(/VGA) Converter attached to a PLC...
  • Page 43: Appendix B: Rack Mount Options

    APPENDIX B: RACK MOUNT OPTIONS Appendix B: Rack Mount Options RGB to DVI(/VGA) Converters can be mounted in a 19” rack using the mounting kit: DVI-KVM-Rackmount Kit This contains the following parts: Narrow strip Two small blanking plates Wide blanking plate Base plate M3x5 Screws (14) Figure 20...
  • Page 44 THE RGB TO DVI(/VGA) CONVERTER The kit allows you to mount various combinations of regular and double width housings: 1. One regular unit (using two small plates) 2. Two regular units (using one small plate) 3. Mounting of three regular units 4.
  • Page 45: Appendix C: System Upgrade

    APPENDIX C: SYSTEM UPGRADE Appendix C: System Upgrade System Update / Onboard Programming It is occasionally necessary to update the firmware of the system. Normally, this procedure is carried out in the factory. If you want to update the firmware yourself, contact Technical Support.
  • Page 46 THE RGB TO DVI(/VGA) CONVERTER Video Video Mode Resolution Refresh Rates Pixel- Vertical Horizont. Mode Name Horiz Vert (Hz) (kHz clock IVE4 50,0 20,0 16,1 IVE2 50,0 21,9 17,8 56,0 24,6 20,9 OP 398 K 60,0 27,5 22,2 70,0 31,4 25,1 Vesa Standard 85,0...
  • Page 47 APPENDIX D: SUPPORTED VIDEO MODES Video Video Mode Resolution Refresh Rates Pixel- Vertical Horizont. Mode Name Horiz Vert (Hz) (kHz clock MAC Mode 75,0 49,5 55,4 Vesa Standard 1024 60,0 48,4 65,0 Vesa Standard 1024 70,0 56,4 74,9 SUN Mode 1024 72,0 58,0...
  • Page 48: Appendix E: Calling Technical Support

    THE RGB TO DVI(/VGA) CONVERTER Appendix E: Calling Technical Support If you determine that your RGB to DVI(/VGA) Converter is malfunctioning, do not attempt to alter or repair it. It contains no user-serviceable parts. Contact Technical Support. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: •...
  • Page 49: Appendix F: Specifications

    APPENDIX F: SPECIFICATIONS Appendix F: Specifications Power Requirements PSU: 90..240VAC-0.5A-47..63Hz/6VDC-2000 mA Voltage RGB to DVI(/VGA) Converter: approx. 8W Power required Interface (Depending on type of device) VGA (res.: 1280x1024@75Hz, plug&play supported) Monitor DVI (res.: 1280x1024@60Hz, plug&play supported) 15 Bit for converting to DVI/VGA (5 Bit per colour) Colour Depth Bandwidth 165 MHz...
  • Page 50: Appendix G: Connectors And Cables

    THE RGB TO DVI(/VGA) CONVERTER Appendix G: Connectors and Cables RGB to DVI(/VGA) Converter Connector Pinouts DVI-I Female connector (for Input and Output) C1 C2 C3 C4 Signal Signal Signal T.M.D.S data 2- T.M.D.S data 1- T.M.D.S data 0- T.M.D.S data 2+ T.M.D.S data 1+ T.M.D.S data 0+ T.M.D.S data 2 GND...
  • Page 51 APPENDIX G: CONNECTORS AND CABLES Programming Signal TxD (to PC RxD) RxD (from PC TxD) DTR from PC Power Signal Earth n.c. +6VDC Housing Shield...
  • Page 52 THE RGB TO DVI(/VGA) CONVERTER Adapter Cables DVI/VGA Adapter RGB to DVI(/VGA) Converter: Monitor: DVI-I male connector HD15 female connector Signal Signal DDC Input (SCL) DDC Input (SCL) DDC Output(SDA) DDC Output (SDA) Analog VSYNC Analog VSYNC Analog Red Analog Red Analog Green Analog Green Analog Blue...
