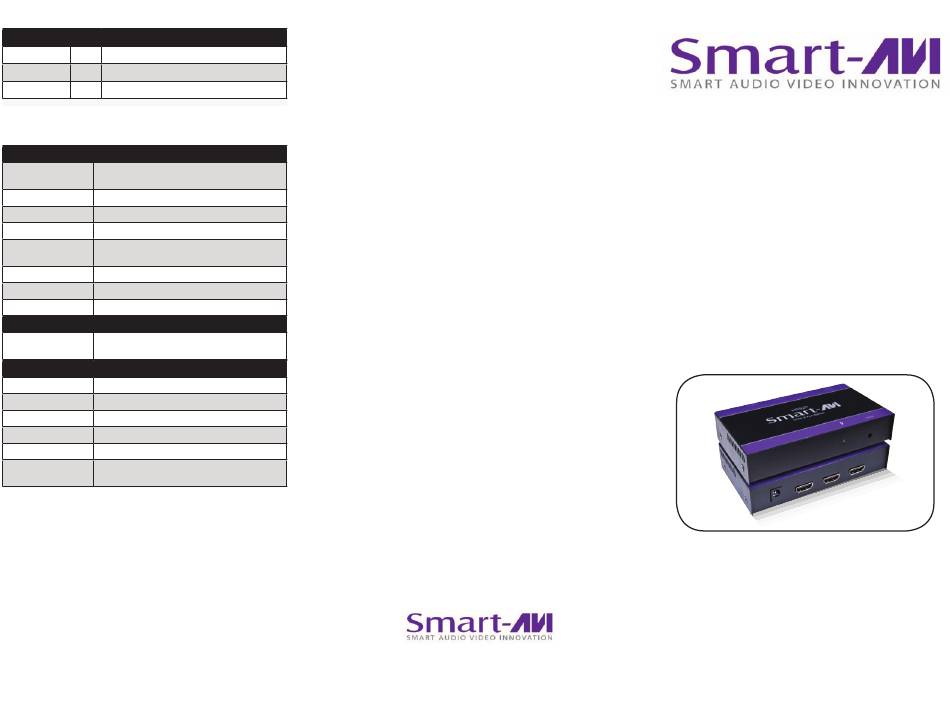

SMART-AVI HDS-2PS Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
HDS-2PS 1 HDMI 2-Port Splitter
Power Supply 1 PS5VDC2A
User Manual 1
Technical Specifications
VIDEO
Format HDMI 1.3c [Deep Color, xvYcc color space sup-
ported]
HDMI Compliance HDMI 1.1
HDCP Compliance Yes
Video Bandwidth Single-link 225MHz [6.75Gbps]
Resolution Up to WUXGA [1920x1200 @ 60Hz] & UXGA
[1600x1200 @ 60Hz]
Input Interface (1) HDMI[7.1ch audio & video]
Output Interface (2) HDMI[7.1ch audio & video]
Connector Type A[19-pin male]
AUDIO
Supported Formats DTS-HD Master Audio, Dolby TrueHD Dolby Digi-
tal, DTS, DVD-Audio, LPCM, SACD, MPCM
OTHER
DDC Signal 5 Volts [peak-to-peak], TTL
TDMS Signal 1.2 Volts[peak-to-peak], TTL
Power External 5VDC2A
Dimensions 5"W x 1.125"H x 3"D
Weight 0.25 lbs.
Approvals Device: CE, ROHS
Power Supply: C-UL US, CE
© Copyright 2010 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
2840 N. Naomi Ave. Burbank, CA 91504
Tel: (818) 565-0011 Fax: (818) 565-0020
http://www.SmartAVI.com
Installation
Manual

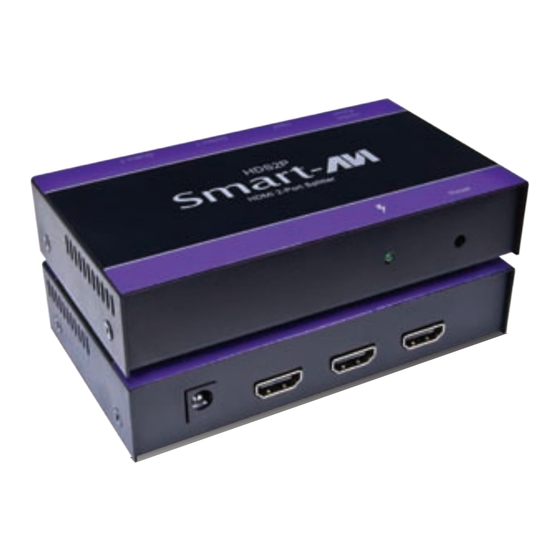

HDS- 2 P
2-Port HDMI Splitter
Connect One HDMI/HDTV
Component to Two Displays
