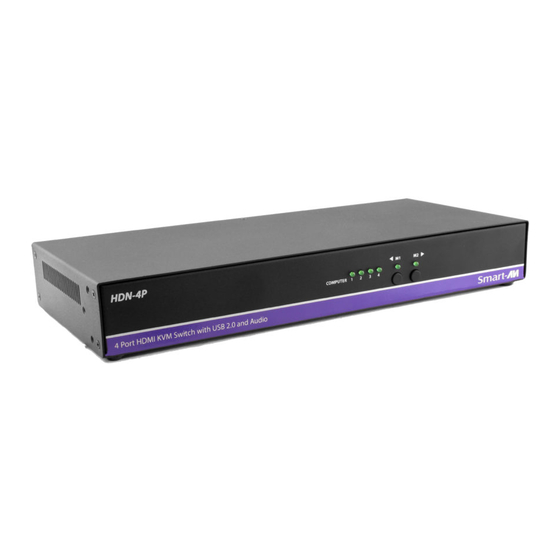

- Page 1 HDN-4p 4-Port HDMI KVM Switch with USB 2.0 and Audio Sharing USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS___________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INSTALLATION____________________________________________________________________________________________ CONTROL_________________________________________________________________________________________________ DISABLE UNUSED PORTS________________________________________________________________________________ CUSTOM HOTKEY TRIGGERS____________________________________________________________________________ ESTABLISHING AN RS-232 CONNECTION______________________________________________________________ TROUBLESHOOTING_____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ 4-Port HDMI KVM Switch with USB 2.0 and Audio Sharing... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format HDMI 1.4, 1.0 Input Interface (4) HDMI (female) Output Interface (1) HDMI (female) Resolution Up to 4K (3840x2160 @30Hz) 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft Output Cable Length Up to 20 ft AUDIO Input Interface... -
Page 4: What's In The Box
What’s in the box? PART NO. Q-TY DESCRIPTION HDN-4P-S 4-Port HDMI KVM Switch with USB 2.0 and Audio Sharing PS5VDC2A Power Adapter User Manual HDN-4P FRONT HDN-4P BACK 4-Port HDMI KVM Switch with USB 2.0 and Audio Sharing... -
Page 5: Installation
2. Connect the HDMI cables, and USB cables (male-A to male-B) from the computers to the respective- ports on the HDN-4P. 3. Optionally connect Audio cables from the computers to the respective ports on the HDN-4P. 4. Optionally connect RS-232 for control functions. -
Page 6: Control
The numbered LED lights will indicate which computer is selected. HOTKEY COMMANDS A Hotkey command is a keyboard sequence used to trigger an action on the HDN-4P through the use of the keyboard connected on the USB port of the HDN-4P. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands. -
Page 7: Custom Hotkey Triggers
Check the device and your PC to determine if you need a male to male or a male to female cable and how long it needs to be. The Smart-AVI device requires a straight through cable. You can use a Null Modem Adapter to convert a crossed cable to a straight through cable. -
Page 8: Establishing An Rs-232 Connection
1. Connect an RS-232 cable to the RS-232 connector on the PC. 2. Connect the other end of the cable to the RS-232 port of the Smart-AVI device. 3. Use Windows Control Panel / Device Manager to identify the Com port number. See instructions and Figure 7-2 below. -
Page 9: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 10: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
