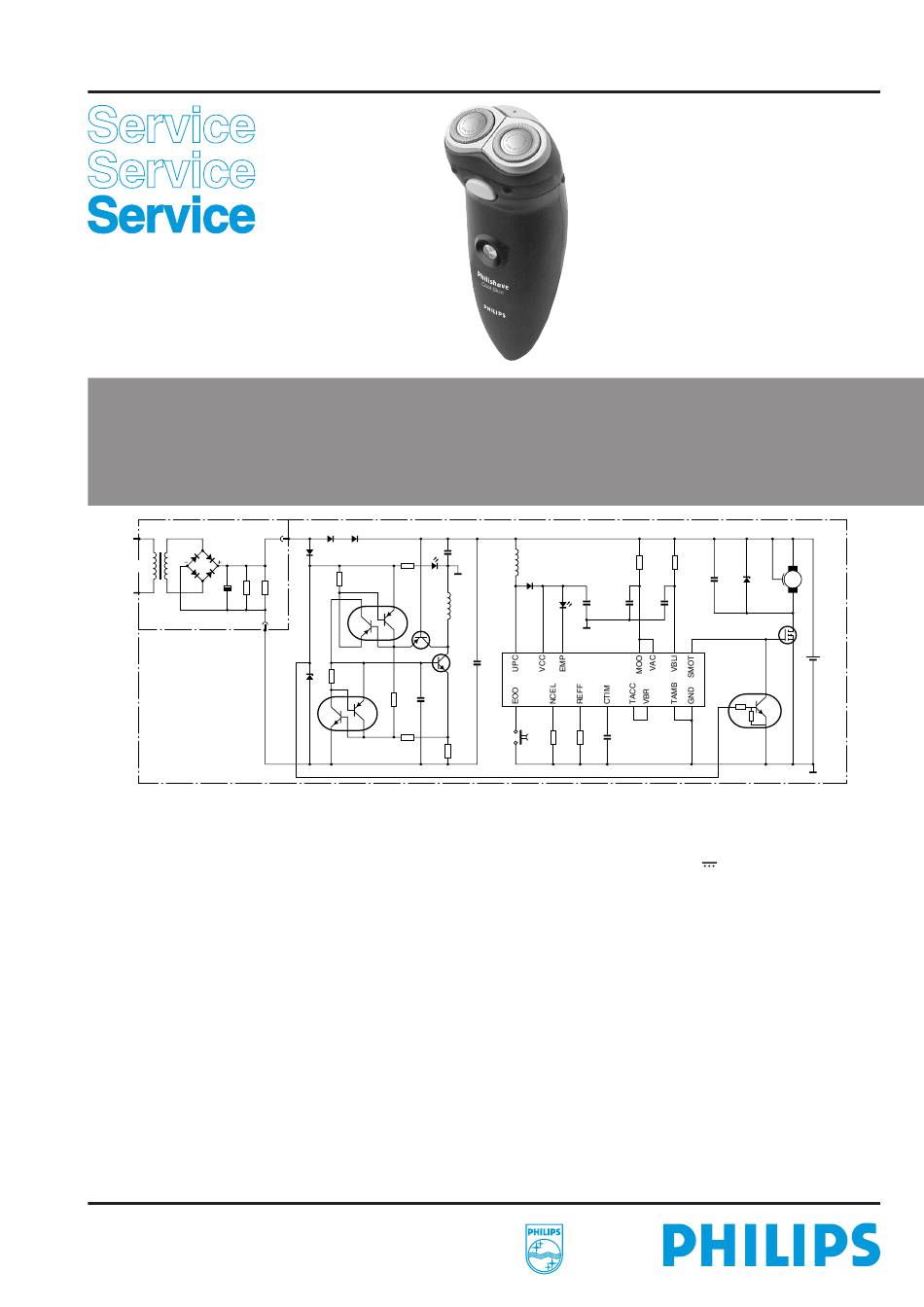

Philips CoolSkin HQ 673/A Service

Philips Domestic Appliances and Personal Care
Service Manual
T1
Mains D
C
R
Power plug
Power module
TIPS FOR REPAIR
- Remove the shaving unit to prevent damage during repair.
- Remove the slide cover (item 21) and cartridge (item 20).
- Push the edge of the hair chamber up with your thumb
until the snap connection unlocks (see 'X' in exploded
view).
- Remove 3 A1 screws.
- Remove the cover (item 14).
- Use a screwdriver to push the connecting plate (item 17)
up at a connecting strip ('Z' in exploded view).
- Tilt the motor slightly to detach the snap hooks of the hair
chamber.
- Lift the motor and the PCB out of the housing.
- The cover (item 14) contains a sticker that is permeable to
gas yet impermeable to water.
- This sticker may not be removed under any circumstances.
- The entire drive unit (item 10) is supplied as a single part
to guarantee optimal sealing of the gear shafts.
- When reassembling the shaver, the sealing ring (item 2)
must be placed onto the housing.
- A new sealing ring must be used to ensure a proper
sealing of the shaver.
Published by Philips Domestic Appliances and Personal Care
4322 277 00485
01/02
D1a D1b
D3
R6
D2a
R1
R
TS1
TS3
D4 R2
TS2
R3 C3
R4
Printed in the Netherlands

Rechargeable shaver

C1
L21
D21
C22
L1
C23
D2b
15 14 10 IC21
TS4 C2
3 18 19 20
SK1 C21
R21 R22
R5
TECHNICAL DATA
Input voltage
Power consumption
Motor voltage
Battery
Battery capacity
Charging indicator
Charging time
Charging current
Charging device
Shaving heads
Shaving emulsion
Mains shaving
SAP CODING
- To guarantee that the shaver is completely watertight, only
the original screws may be used.
© Copyright reserved
HQ 673/A
CoolSkin
R23 R24
C25 D43 PM
C24
MF2
2 16 17 4
TS21
6 7 8 13
: 100-240 V, 50/60 Hz
: max. 9 W
: 1.2 V
: 1x NiCd AA
: approx. 700 mAh
: 1x duoLED green / red
: charge / battery low
: approx. 8 hours
: 0.2 C continuous
: HQ 600 external transformer
: HQ 167 - 4222 036 04250
: HQ 160 shaving emulsion
: HQ 161 fresh gel
: no
: HQ 673
Subject to modification
A
NiCd
AA
