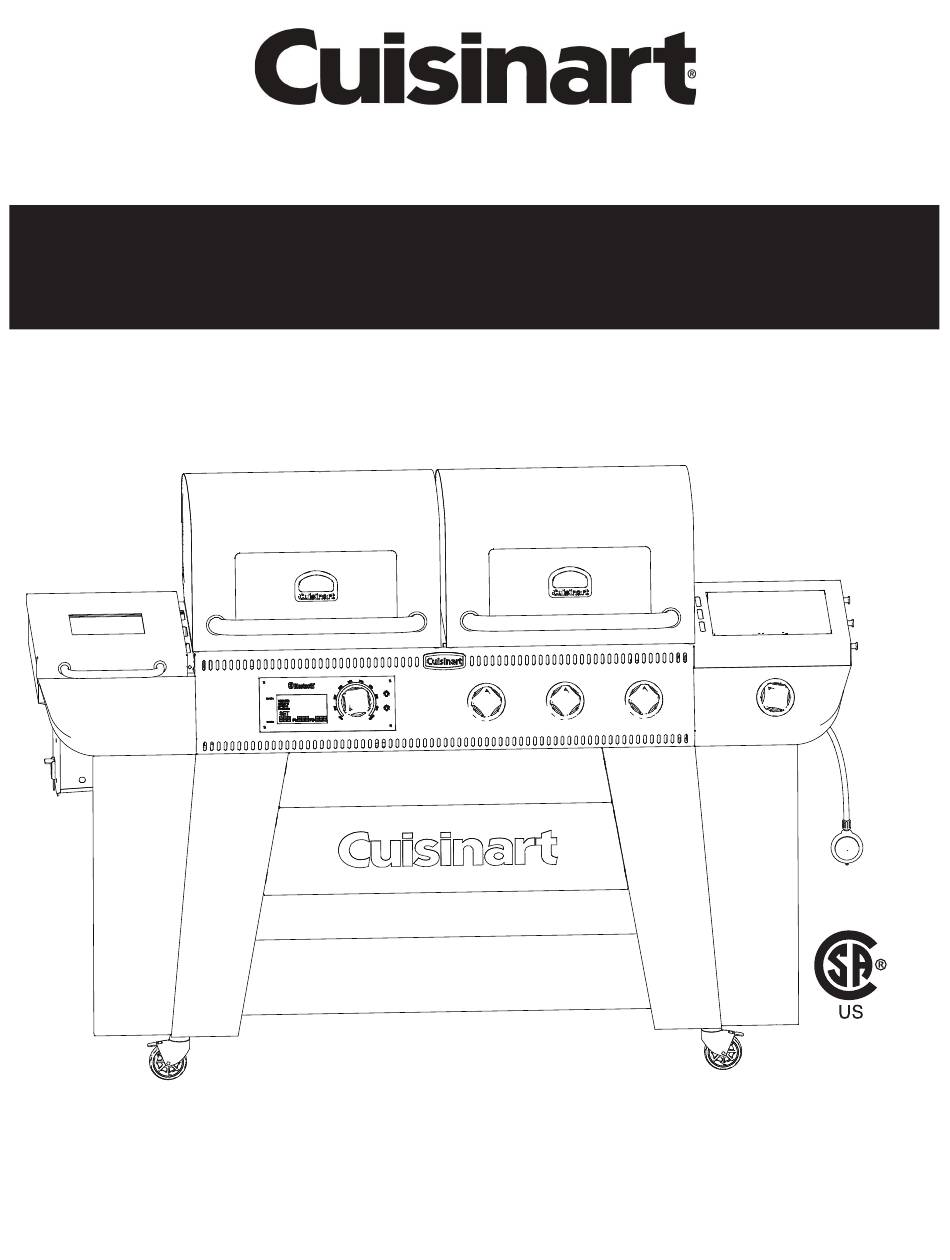

- Page 1 Twin Oaks Dual Function Grill ASSEMBLY IN STRUC TIONS Model GAS0356AS / GAS0356ASO...
-
Page 2: Step
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN AS SEM BLING THIS UNIT. The following tools are required to assemble this Cuisinart Twin Oaks Pellet Grill: • Phillips Screwdriver • Pliers or Wrench... -
Page 4: Table Of Contents
Step 1 • Remove 2 screws • Attach FRONT PANELS • Tighten 2 screws Step 2 • Loosen 6 screws 3-4 turns on FRONT LEGS • Do not remove screws • Attach FRONT PANELS using keyholes • Tighten 6 screws NOTE: Before tightening keyhole screws, make sure panels are aligned. -
Page 5: Loosen 6 Screws
Step 3 • Loosen 6 screws 3-4 turns on FRONT LEGS • Do not remove screws • Attach RIGHT SIDE FRONT PANEL LEFT SIDE FRONT PANEL • Tighten 6 screws on RIGHT SIDE FRONT PANEL and LEFT SIDE FRONT PANEL Step 4 •... -
Page 6: Removed From Step
Step 5 • Loosen 2 screws • Attach CART BRACE • Tighten 2 screws on CART BRACE • Remove 4 screws Remove 2 screws Remove 2 screws Step 6 • Attach CART BASE • Tighten 4 screws (Removed from Step 5) -
Page 7: Attach Cart Base
Step 7 • Loosen 9 screws on REAR LEGS • Attach BACK PANEL to REAR LEGS • Tighten 5 screws • Remove 4 screws Remove 2 screws Remove 2 screws Step 8 • Attach CART BASE rear legs • Tighten 4 screws (Removed from Step 7) - Page 8 Step 9 • Attach LEFT SIDE Tighten PANEL and CART 4 screws BRACE • Tighten 4 screws Step 10 • Lock CASTERS • Attach CASTERS legs CASTERS unlocked locked...
- Page 9 Step 11 • Loosen 2 screws • Install TANK BLOCK • Tighten screws Step 12 • Attach ACCESSORY HOOKS to LEFT ACCESSORY SIDE PANEL with HOOKS wing nuts...
- Page 10 Step 13 • Loosen 5 screws • Remove 2 screws Remove 2 screws Loosen 5 screws Step 14 • Loosen 1 screw • Remove 2 screws Remove 2 screws Loosen 1 screw...
- Page 11 Step 15 • Set GRILL BODY cart • Make sure screw drops into rear cart brackets • Push GRILL BODY back of cart • Install 2 screws in FRONT BRACKETS (Removed from Step 13 and Step • Tighten 4 screws on cart brackets (2 screws left over will be used in future steps)
- Page 12 Step 17 Remove screw and Loosen washer screws • Loosen 2 screws • Attach RIGHT SIDE CONTROL PANEL RIGHT SIDE TABLE using keyholes Remove • Tighten 2 screws screw • Remove 2 screws and washer Step 18 • Attach RIGHT SIDE TABLE to GRILL BODY...
- Page 13 Step 19 • Install screw and washer Install (Removed from Step 17) screw and washer • Make sure control panels are aligned • Tighten 5 screws from Step 18 and Step 19 Align Panels Step 20 Loosen 2 • Remove WING NUT and screws SIDE BURNER •...
- Page 14 Step 21 • Attach ELECTRODE WIRE to IGNITOR Step 22 • Attach CONTROL KNOB...
- Page 15 Step 23 • Loosen 2 screws from LEFT SIDE CONTROL PANEL • Remove 1 screw Remove screw Step 24 • Attach LEFT SIDE CONTROL PANEL PELLET HOPPER using keyholes...
- Page 16 Step 25 • Install and tighten 2 screws (Removed from Step 14 and Step 23) Step 26 Loosen screw • Remove 4 screws and washers from AUGER HOUSING • Loosen 1 screw Remove 4 screws...
- Page 17 Step 27 • Install AUGER HOUSING using keyhole in fi rebox and slots in pellet hopper bracket • Tighten 5 screws and washers in fi rebox Step 28 • Remove 2 screws • Attach CORD WRAP using 2 screws...
- Page 18 Step 29a • Connect wiring for Controller and Pellet Sensor • These wires can only be connected one way • Make sure the connectors are lined up properly before tightening Step 29b • Once connected, twist to tighten Step 29c •...
- Page 19 Step 30 • Install SIDE BURNER GRATE Step 31 • Attach HEAT BAFFLE...
- Page 20 Step 32 • Install HEAT PLATE on welded brackets Step 33 • Install HEAT TENTS above each burner...
- Page 21 Step 34 • Install COOKING GRATES Step 35 • Install WARMING RACKS...
- Page 22 Step 36 • Install ASH CATCHER Step 37 • Install GREASE TRAY and GREASE CUP through back of grill...
- Page 23 Step 38 • Store GRIDDLE ACCESSORY HOOKS...
- Page 24 Model GAS0356AS / GAS0356AS0 Assembled ©2019 The Boltz Group LLC OM0356AS/ASO Assembly Instructions for Models Carrollton, Texas 75006 U.S.A. 1019 GAS0356AS / GAS0356ASO...
