Cuisinart GAS9556AF Owner's Manual

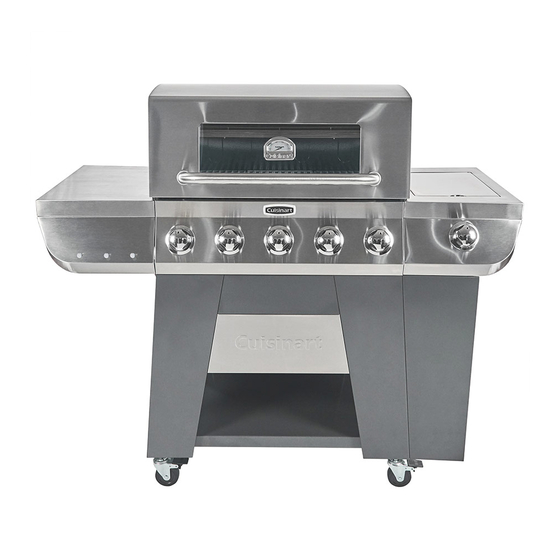

3-in-1 stainless 5 burner gas grill
Hide thumbs Also See for GAS9556AF:

Advertisement

Table of Contents

3-in-1 Stainless 5 Burner Gas Grill
OWNER'S MANUAL
OPERATING IN STRUC TIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
Model GAS9556AF
WARNING
NOTICE TO INSTALLER:
HAZARDOUS EXPLOSION MAY RESULT IF THESE
LEAVE THESE INSTRUCTIONS
WARNINGS AND INSTRUCTIONS ARE IGNORED. READ
AND FOLLOW ALL WARNINGS AND INSTRUCTIONS
WITH THE GRILL OWNER
IN THIS MANUAL TO AVOID PERSONAL INJURY,
FOR FUTURE REFERENCE .
INCLUDING DEATH OR PROPERTY DAMAGE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAS9556AF and is the answer not in the manual?

Questions and answers

Related Manuals for Cuisinart GAS9556AF

Summary of Contents for Cuisinart GAS9556AF

  • Page 1 3-in-1 Stainless 5 Burner Gas Grill OWNER’S MANUAL OPERATING IN STRUC TIONS SAVE THIS MANUAL FOR FUTURE REFERENCE Model GAS9556AF WARNING NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE LEAVE THESE INSTRUCTIONS WARNINGS AND INSTRUCTIONS ARE IGNORED. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS...
  • Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: General Warnings ..........3-4 LP Gas Cylinder (Tank) Specifi cations and Installation .

  • Page 4: General Warnings

    GENERAL WARNINGS: WARNING • Leak test all connections before fi rst use, even if grill was purchased fully assembled and after each tank refi ll. Check the propane tank rubber seal for damage. • Always check the grill and propane tank prior to each use as indicated in the “Checking for Leaks” & “Pre-Start Check List”...

  • Page 5: Lp Gas Cylinder (Tank) Specifications And Installation

    • Grill is hot when in use. To avoid burns: • DO NOT attempt to move the grill. • Block the wheels so the unit does not accidentally move. • Wear protective gloves or oven mitts. • DO NOT touch any hot grill surfaces. •...
  • Page 6 LP GAS CYLINDER (TANK) SPECIFICATIONS: LP gas cylinder (not supplied with this grill) The LP (Liquid Propane) gas cylinder specifi cally designed to be used with this grill must be 12” (30.5 cm) diameter x 18” (45.7 cm) tall and have a 20 lb. (9.1 kg) capacity incorporating a Type 1 cylinder valve and an over-fi lling protection device (OPD).

  • Page 7: Hose & Regulator Specifications And Installation

    LP GAS CYLINDER (TANK) RUBBER SEAL INSPECTION: • Inspect the propane tank valve rubber seal for cracks, wear or deterioration prior to use. A damaged rubber seal can cause a gas leak, possibly resulting in an explosion, fi re or severe bodily harm. •...

  • Page 8: Leak Testing

    HOSE AND REGULATOR: Your grill is equipped with a Type 1 connection device with the following features: 1. The system will not allow gas fl ow from the cylinder until a positive connection to the valve has been made. Note: The cylinder valve and all grill burner knobs must be turned OFF before any connection is made or removed.
  • Page 9 DANGER To prevent fi re or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS in a well ventilated area that is protected from the wind. • Never perform a leak test with a match or open fl ame.

  • Page 10: Pre-Start Check List

    PRE-START CHECK LIST: DANGER Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the grill has been assembled and prior to each use. DO NOT operate this grill until you have read and understand ALL of the warnings and instructions in this manual.
  • Page 11 5. To light other burners, follow steps 3-4. 6. If burner does not ignite using the igniter, see “Match Lighting the Main Burners” section. To turn off, turn each control knob clockwise until it locks in the “OFF” position. This does not turn off the gas fl ow from the cylinder.

  • Page 12: Operating The Grill

    OPERATING THE GRILL: WARNING • Read and follow all warnings and instructions contained in the preceding sections of this manual. • Flavoring chips must be contained in a metal smoking box to contain ash and prevent fi res. • DO NOT cover cooking grates or other components with aluminum foil, as this blocks ventilation and damage to grill or personal injury may occur.

  • Page 13: Using Other Features Of The Grill

    TURNING OFF THE GRILL: 1. Turn off the cylinder valve. 2. Turn all burner control knobs to the “OFF” position. Note: Turn off LP cylinder fi rst to prevent gas from being left in the system under pressure. CAUTION: • The cylinder valve should always be in the off, or closed, position when the grill is not in use.
  • Page 14 SMOKE TUBE: The smoke tube can be used for additional smoke fl avor when using the grill. Small wood chips or wood pellets work the best. For best results, soak Wood pellets or wood chips the wood chips in water for 15 minutes. You can expect about 1 hour of smoke when using wet wood chips or dry wood pellets.
  • Page 15 CAST IRON GRIDDLE: The Griddle can be used to cook breakfast foods (eggs, pancakes, bacon, sausage, etc.), grilled cheese sandwiches, vegetables that might normally fall through the cooking grates, and other foods that are not normally cooked on an open cooking grate. This griddle is made of cast iron and has a porcelain coating to prevent rust.

  • Page 16: Proper Care And Maintenance

    PROPER CARE & MAINTENANCE: WARNING: If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on the cooking surfaces prior to grilling as loose bristles may attach to food. CLEANING INTERIOR OF GRILL: •...
  • Page 17 BURNER ASSEMBLY/MAINTENANCE: • Although your burners are constructed of stainless steel, they may corrode as a result of the extreme heat and acids from cooking foods. Regularly inspect the burners for cracks, abnormal holes, and other signs of corrosion damage. If found, replace the burner.

  • Page 18: Transporting And Storage

    TRANSPORTING AND STORAGE: WARNING • Never move a grill when hot or in use. • Make sure that cylinder valve is closed and burner knobs are in the off position. • DO NOT store a spare LP gas cylinder (fi lled or empty) under or near the grill. •...

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING: Problem Possible Cause Prevention/Cure Burner will not light LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank, turn LP gas tank valve to “OPEN” LP gas tank is low or empty Check if LP gas tank is empty.

  • Page 20: Grill Cooking Tips

    Problem Possible Cause Prevention/Cure Flame blows out High or gusting winds Do not use grill in high winds Low on LP gas Replace or refi ll LP gas tank Burner holes may be obstructed Refer to “Burner Assembly/Maintenance” instructions Flow limiting device tripped Refer to “Regulator Resetting Procedure”...
  • Page 21 For replacement parts, call our customer service department at 1-866-212-3150 from 9:00am to 5:00pm Eastern time, Monday through Friday for assistance. ©2019 The Boltz Group LLC Owner’s Manual for Model OM9556AF Carrollton, Texas 75006 U.S.A. GAS9556AF 0819...
