  • Page 1 Two Burner Gas Grill ASSEMBLY IN STRUC TIONS Model GAS2256AF...
  • Page 2: Parts List

    READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN AS SEM BLING THIS UNIT. The following tools are required to assemble this Cuisinart 2 Burner Gas Grill: • Phillips Screwdriver PARTS LIST:...
  • Page 4 Remove two screws and Step 1 two brackets • Remove two screws and two brackets from right and left rear legs • Remove right and left rear legs from side panels. Remove right and left legs Step 2 • Remove six Left Right screws from right...
  • Page 5 Step 3 • Attach rear legs to back panel using four screws removed in Step 2. Step 4 • Remove three screws from door frame. • Attach door frame to cart base using three screws. Remove three screws...
  • Page 6 Step 5 • Remove two screws from cart base and attach back panel using four screws. (Two screws removed from Step 2) Remove two screws Step 6 Remove two screws and • Remove six screws brackets and two brackets from door frame. •...
  • Page 7 Step 7 • Attach front trim to door frame. Step 8 • Lock casters • Attach casters to cart base. Unlocked Locked...
  • Page 8 Step 9 • Remove four screws from cart base. • Attach tank holder using four screws. Remove four screws Step 10 • Remove two screws and door spacers from door handle Remove two • Attach door screws handle to door using two screws.
  • Page 9 Step 11 • Insert door into door frame. Step 12 • Remove fourteen screws and two protective brackets Remove two from sides and brackets back of grill body Remove six screws Remove eight screws...
  • Page 10 Step 13 • Install rear brackets on cart assembly removed from Step 1. • Do not fully tighten screws at this time. • Set grill body on cart. Step 14 • Install front brackets and secure with two screws removed from Steps 6 and •...
  • Page 11 Step 15 • Remove four screws from side table brackets. Remove four screws • Attach right side table brackets to grill body using four screws removed from Step 12. • Attach left side table brackets to grill body using four screws removed from Step 12.
  • Page 12 Step 17 • Install right side table using two screws removed in Step 15. Remove two screws Step 18 • Remove 2 screws on grease tray • Move handle to outside and attach with 2 screws...
  • Page 13 Step 19 • Insert grease tray and grease Step 20 • Install heat tents , cooking grates and warming rack...

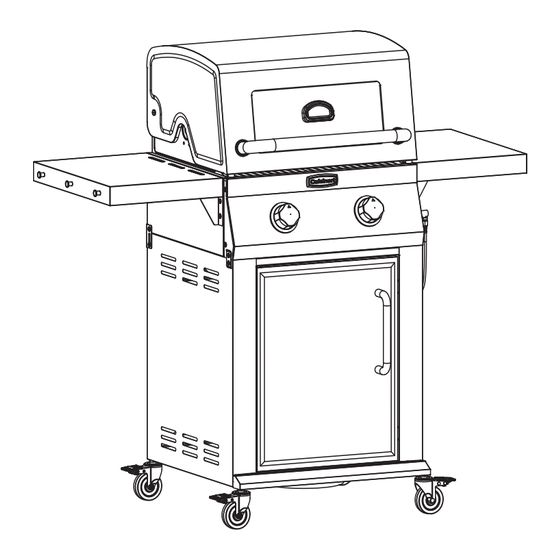

  • Page 14 Model GAS2256AF Assembled ©2021 The Boltz Group LLC. Assembly Instructions for Model OM2256AF Carrollton, Texas 75006 U.S.A. GAS2256AF 0921...
