YOKOGAWA FLEXA FLXA21-D-S Drawings

YOKOGAWA FLEXA FLXA21-D-S Drawings

2-wire analyzer stainless steel housing
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

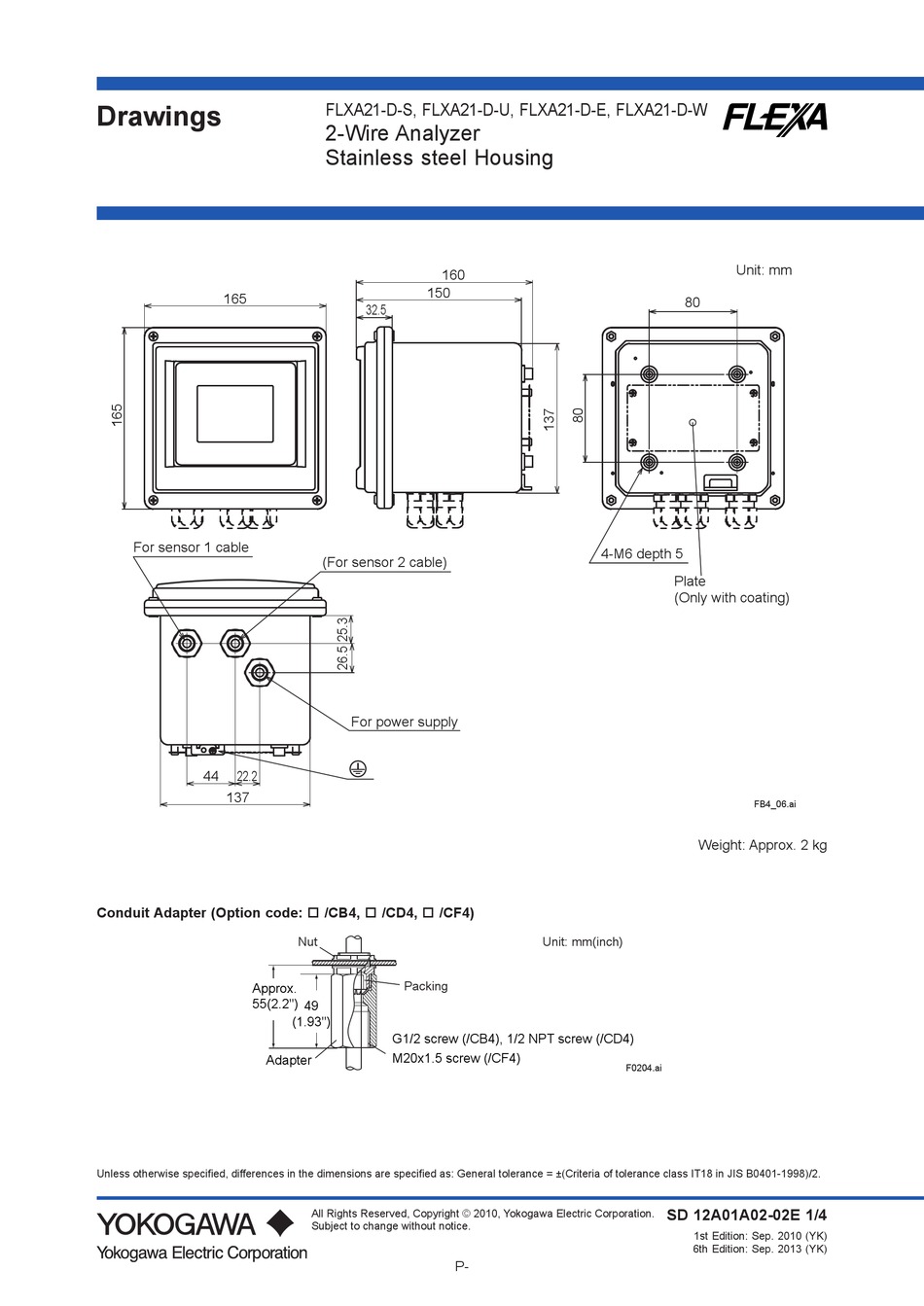

Drawings
165
For sensor 1 cable
44
22.2
137
Conduit Adapter (Option code:  /CB4,  /CD4,  /CF4)
Approx.
55(2.2")
Adapter
Unless otherwise specified, differences in the dimensions are specified as: General tolerance = ±(Criteria of tolerance class IT18 in JIS B0401-1998)/2.
FLXA21-D-S, FLXA21-D-U, FLXA21-D-E, FLXA21-D-W
2-Wire Analyzer
Stainless steel Housing
160
150
32.5
(For sensor 2 cable)
For power supply
Nut
Packing
49
(1.93")
G1/2 screw (/CB4), 1/2 NPT screw (/CD4)
M20x1.5 screw (/CF4)
All Rights Reserved, Copyright © 2010, Yokogawa Electric Corporation.
Subject to change without notice.
P-
80
4-M6 depth 5
Plate
(Only with coating)
Weight: Approx. 2 kg
Unit: mm(inch)
F0204.ai
SD 12A01A02-02E 1/4
1st Edition: Sep. 2010 (YK)
6th Edition: Sep. 2013 (YK)
Unit: mm
FB4_06.ai

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEXA FLXA21-D-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA FLEXA FLXA21-D-S

Summary of Contents for YOKOGAWA FLEXA FLXA21-D-S

  • Page 1 Unless otherwise specified, differences in the dimensions are specified as: General tolerance = ±(Criteria of tolerance class IT18 in JIS B0401-1998)/2. SD 12A01A02-02E 1/4 All Rights Reserved, Copyright © 2010, Yokogawa Electric Corporation. Subject to change without notice. 1st Edition: Sep. 2010 (YK)
  • Page 2 (Note) The universal mounting kit (/UM) contains the pipe and wall mounting hardware (/U) and the panel mounting hardware (/PM). Panel mounting hardware (Option code:  /PM,  /UM) Unit: mm 2-M5 length 35 Plate (Only with coating) 4-M6 * Spacing panel cutout *: Tighten the four screws to a torque of 2 N•m.
  • Page 3 Pipe mounting hardware (Option code:  /U,  /UM) Unit: mm Pipe 50A (ø60.5) (214) 4-M6 * M8 U-bolt Pipe mounting (Horizontal) Pipe mounting (Vertical) *: Tighten the four screws to a torque of 2 N•m. FB4_09.ai Stainless steel hood (Option code:  /H6,  /H7,  /H8) Unit: mm (70) (100)
  • Page 4 n Wiring Diagram WTB10 or BA10 Case of Distributor FLXA21 2-Wire Analyzer Terminal box PH201G (Style B) – CMN CMN n n n n n n n Output 2 (1-5V DC) (*3) n n n n n n n n n Output 1 (1-5V DC) Power supply –...
