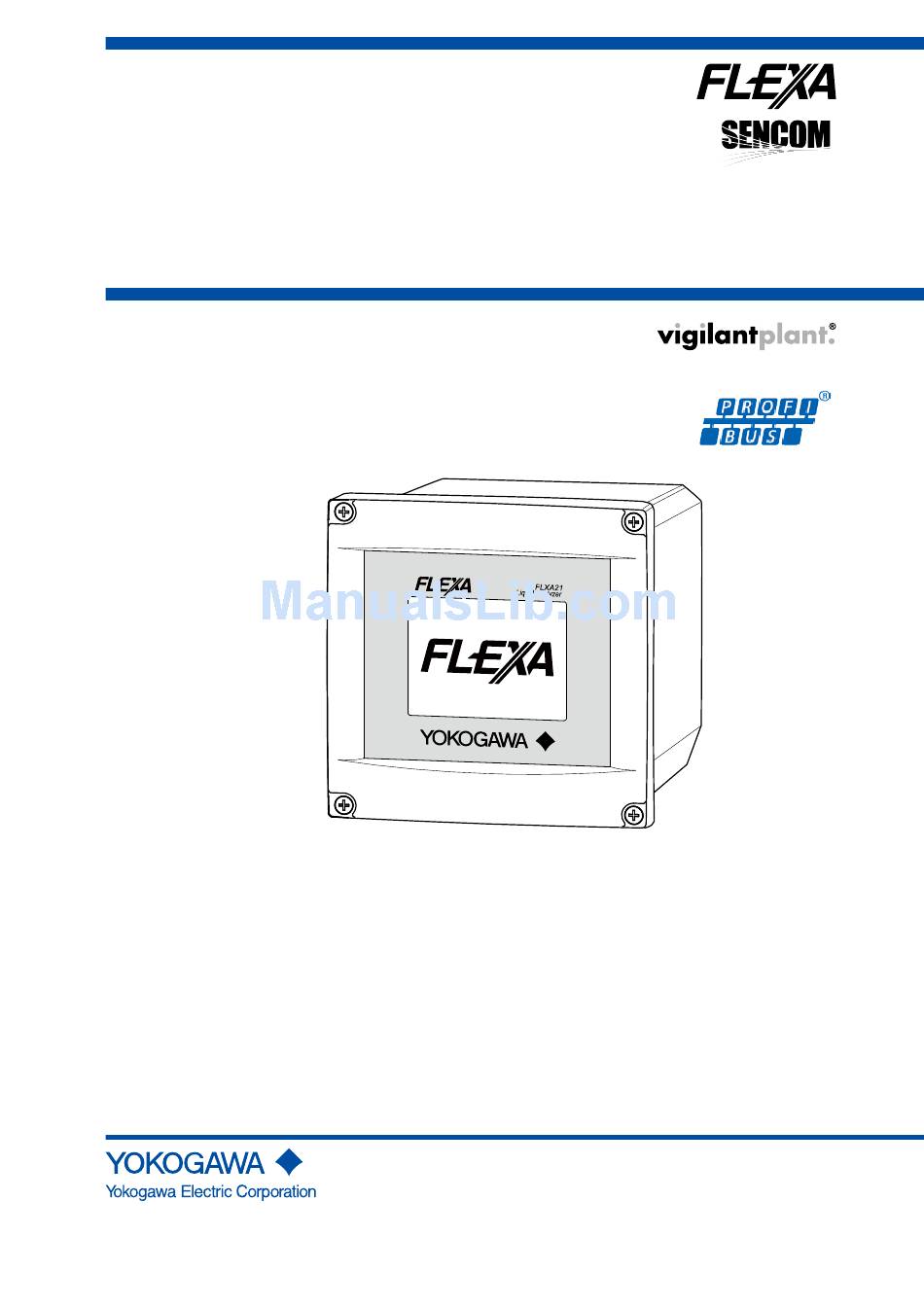

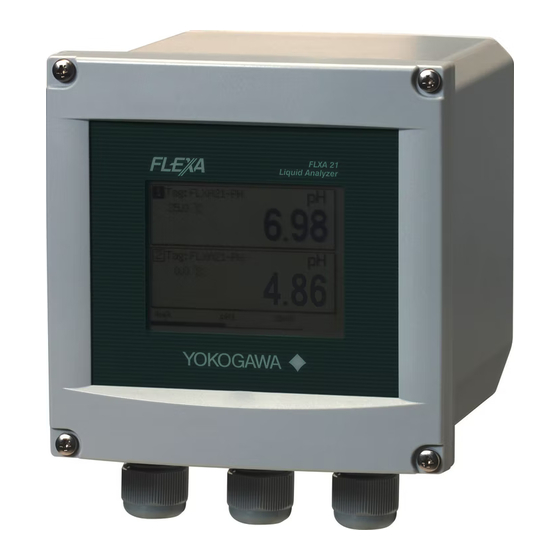

  • Page 1 User’s Manual FLXA21 2-Wire Analyzer PROFIBUS PA Communication IM 12A01A02-72E IM 12A01A02-72E 3rd Edition...

  • Page 2: Introduction

    Please read the following respective documents before installing and using the FLXA21. This manual describes only those topics that are required for operation of the PROFIBUS PA communications. For information about the FLXA21 other than PROFIBUS PA, refer to the User’s Manual (IM 12A01A02-01E). Notes on Handling User’s Manuals • Please hand over the user’s manuals to your end users so that they can keep the user’s...

  • Page 3: Safety Precautions

    The product is provided on an “as is” basis. YOKOGAWA shall have neither liability nor responsibility to any person or entity with respect to any direct or indirect loss or damage arising from using the product or any defect of the product that YOKOGAWA can not predict in advance. IM 12A01A02-72E...
  • Page 4 FLXA21 • The FLXA21 should only be used with equipment that meets the relevant IEC, American, Canadian, and Japanese standards. Yokogawa accepts no responsibility for the misuse of this unit. • Don’t install “general purpose type” instruments in the hazardous area. • The Instrument is packed carefully with shock absorbing materials, nevertheless, the instrument may be damaged or broken if subjected to strong shock, such as if the instrument is dropped. Handle with care.
  • Page 5 Degree 2 is the normal indoor environment. Warranty and service Yokogawa products and parts are guaranteed free from defects in workmanship and material under normal use and service for a period of (typically) 12 months from the date of shipment from the manufacturer.
  • Page 6 No part of the online manual may be transferred, sold, distributed (including delivery via a commercial PC network or the like), or registered or recorded on video tapes. FLEXA, FLXA and SENCOM are registered trademarks of Yokogawa Electric Corporation. Adobe, Acrobat and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

  • Page 7: Table Of Contents

    Connection of Devices ..................3-1 Host Setting ....................... 3-2 Bus Power ON ....................3-2 Bus Address Setup ................... 3-2 Notes When Using the FLXA21-SC Concentration Table (when using FieldMate) ......................3-3 PRIMARY/SECONDARY/TERTIARY/QUATERNARY_VALUE Value Assignment ..3-3 Explanation of Basic Item ................ 4-1 Reading cyclic parameters ................
  • Page 8 Toc-2 Transducer block parameters ................. 6-5 Diagnostic Information ................... 6-13 Status of Each Parameter in Failure Mode ........... 6-24 Revision Record .......................i IM 12A01A02-72E 3rd Edition : Oct. 01, 2015-00...

  • Page 9: About Profibus Pa

    For information on other features, engineering, design, construction work, startup and maintenance of PROFIBUS PA, refer to the PROFIBUS PA Nutzerorganisation e.V. website: www.profibus.com Internal Structure of FLXA21 The FLXA21 contains a structured mapping of function blocks. Each function block serves a specific task. Physical block • Manages the status of FLXA21 hardware. • Automatically informs the host of any detected faults or other problems. Transducer block • Converts sensor input to process values which are transferred to AI function block by...

  • Page 10: Logical Structure Of Each Block

    Parameters Figure 1.1 Logical Structure of Each Block Node address, block tags and contained parameters within a function block are structured in the FLXA21 device as shown in figure 1.1. 1.3 Wiring System Configuration The number of devices that can be connected to a single bus and the cable length vary depending on system design. When constructing systems, both the basic and overall design must be carefully considered to allow device performance to be fully exhibited.

  • Page 11: Preparation

    Cable gland diagram Cables, terminals and glands for PROFIBUS Wire and install the system by referring to chapter 2 in the FLXA21 instruction manual (IM 12A01A02-01E). The PROFIBUS PA power supply is 9 to 32 V DC. The wiring is the same.
  • Page 12 <2. Preparation> When using a SENCOM module When using a SENCOM module, you need to use the supplied cable clamp to fix the sensor cables in place. Attach the supplied cable clamp as shown in Figure 2.2. Sensor cable Cable cramp Figure 2.2 When using a SENCOM module DIP switches Figure 2.3 shows the DIP switches for setting the address and write protection. Normally, you do not have the change them from the default settings.

  • Page 13: Shielding And Grounding

    Figure 2.2 Shield and grounding How to download EDD for PDM It takes a certain time to insert EDD to PDM package. If your PDM package doesn’t include FLXA21 EDD, download it from the following website. http://www.yokogawa.com/an/download/an-dl-profibus-001en.htm *: This address is subject to change without prior notice. If the above address cannot be accessed, consult your nearest sales office or the agency from which you purchased the product.

  • Page 14: Getting Started

    Connect the devices as shown in Figure 3.1. Connect the terminators at both ends of the trunk, with a minimum length of the spur laid for connection. The polarity of signal and power must be maintained. Power supply HOST Coupler/terminator Terminator FLXA21 Figure 3.1 Cabling IM 12A01A02-72E 3rd Edition : Oct. 01, 2015-00...

  • Page 15: Host Setting

    Using the host device display function, check that the FLXA21 is in operation on the bus. Unless otherwise specified, the following settings are in effect when shipped from the factory. If no FLXA21 is detected, check the available address. Please set all addresses of the devices in advance or separately connect each FLXA21 and set a different address for each. Make sure to note the address after changing it as from this point on the device can only be accessed through this address.

  • Page 16: Notes When Using The Flxa21-Sc Concentration Table (When Using Fieldmate)

    <3. Getting Started> Notes When Using the FLXA21-SC Concentration Table (when using FieldMate) The FLXA21-SC concentration table can be read from and written to using the CONC_TABLE_ CONCENTRATION_1 to CONC_TABLE_CONCENTRATION_21 and CONC_TABLE_ CONDUCTIVITY_1 to CONC_TABLE_CONDUCTIVITY_21 parameters of the transducer block. However, when using FieldMate, note the following points. The default concentration table values are “Not a Number”. On the device screen, they appear as blank. On FieldMate, “IEEE: NOT A NUMBER” is displayed. Values set to “Not a Number” cannot be changed from FieldMate. If you want to write the concentration table from FieldMate, first set all the items in the concentration table to some value from the device screen. PRIMARY/SECONDARY/TERTIARY/ QUATERNARY_VALUE Value Assignment Measurement values are assigned to PRIMARY_VALUE, SECONDARY_VALUE, TERTIARY_ VALUE, and QUATERNARY_VALUE from the device screen.

  • Page 17: Explanation Of Basic Item

    In general, slave devices exchange data cyclically with the master (class 1, e.g. PLC). The FLXA21 (slave) gets the data from the sensor, makes some calculations and makes the outcome available through analog input blocks. The controller device (Master) requests for these process values, makes some calculation (PID, ratio) and sends the result to an actuator.

  • Page 18: Reading Acyclic Parameters

    <4. Explanation of Basic Item> The AI1/2 measurement items assigned to each slot are determined according to Channel (AI) as well as PRIMARY, SECONDARY, TERTIARY, and QUATERNARY Type (Transducer Block). For details, see the description of each item. The GSD file of the FLXA21 specifies 3 modules: ;Empty module Module = “Empty Module” 0x00 EndModule ;Modules for Analog Input Module = “Analog Input (AI)short”...

  • Page 19: Function Block Parameters

    The actual mode is changed by setting the target mode. When the physical block mode is set to OOS all function blocks are set to OOS mode. CHANNEL Channel is the parameter to select the signal which is calculated in SENSOR Transducer Block. The values are assigned to channels. For the FLXA21 three or four channels are available. For the FLXA21, you can select from the PRIMARY, SECONDARY, TERTIARY, QUATENARY values assigned to the Transducer Block. For details on how to assign measurement items to parameters, refer to “3.6 PRIMARY/ SECONDARY/TERTIARY/QUATERNARY_VALUE Value Assignment”.
  • Page 20 <4. Explanation of Basic Item> FLXA21-PH Channel Selectable TB value Default Selectable values Primary Value pH1, Temperature1, ORP1, rH1 Secondary Value Temperature1 pH1, Temperature1, ORP1, rH1, Ref. impedance1, Empty Tertiary Value PH: Empty SENCOM: ORP1 Quaternary Value Empty FLXA21-SC Channel Selectable TB value...
  • Page 21 <4. Explanation of Basic Item> Fail Safe Mode (FSAFE_TYPE) Fail Safe Mode is parameter used to define the reaction of the device, if a BAD status of signal to AI function block (OUT.Status and OUT.Value) is detected. This is available only when Target Mode of AI function block is in “Auto”. Fail Safe Mode defines the Output Value and Status (Quality) when status of input signal to AI function block is BAD. This function is valid only when Actual Mode of AI function block is in “AUTO” Table 4.3 Fail Safe Mode (Classic Status) Fail Safe Mode...

  • Page 22: Setting And Change Of Basic Parameters

    <4. Explanation of Basic Item> Setting and change of basic parameters This section describes the procedure taken to set and change the parameters for each block. Obtaining access to each parameter differs depending on the configuration system used. For details, refer to the instruction manual for each configuration system. Access the block mode (MODE_BLK) of each block. Set the Target of block mode (MODE_BLK) to Auto, Man or O/S (*Note 2) according to the Write Mode of the parameter to be set or changed.

  • Page 23: Setting The Ai Function Blocks

    The default value is 0.0 to 100.0%. Change this if necessary. For AI1 set L_TYPE to Direct With the FLXA21, the channel values are displayed on the display indicator, independent of the scaling in the AI blocks. Setting the output mode Access the L_TYPE parameter. Set the output mode.
  • Page 24 <4. Explanation of Basic Item> Simulation By optionally setting the input value to the calibration range and status, perform simulation of the AI function block. Access the Simulate Value parameter. Set an optional input value. Access the Simulate Status parameter. Set the status code.

  • Page 25: In-Process Operation

    (process alarm) is detected, a diagnostic message is issued from each block. For details of alarm, refer to “n Device status” on page 6-14 . Tag:FLXA21–PH 10.38 TEXT_PH1 25.0 °C...

  • Page 26: Simulation Function

    <5. In-Process Operation> M (Maintenance): An alarm category for a detected failure that has a low level of urgency but is a failure that could develop into a problem causing restrictions in instrument functionality in some environments. Classic Status and Condensed Status can be switched by using the Condensed Status/ Diagnosis (PB.COND_STATUS_DIAG) parameter.

  • Page 27: Function Block Parameters And Methods

    <6. Function block parameters and Methods> Function block parameters and Methods Note for sections 6.1 to 6.3 The “Write Mode” column contains the modes in which each parameter is write enabled. O/S: Write enabled in O/S mode. MAN: Write enabled in Man mode and O/S mode. AUTO: Write enabled in Auto mode, Man mode, and O/S mode. RO: Read Only. The “Initial Value” column contains initial values —: Dynamic data or no description Note for sections 6.4 and 6.5...

  • Page 28: Physical Block Parameters

    REVISION 25 HARDWARE_ “Sn.nn” Revision number of the hardware of the field REVISION device. 26 DEVICE_MAN_ID “Yokogawa” Identification code of the manufacturer of the field device. 27 DEVICE_ID FLXA21-PH: Manufacturer specific identification of the field “FLXA21-PH” device. FLXA21-SC: “FLXA21-SC” 28 DEVICE_SER_ Serial number Serial number of field device. 29 DIAGNOSIS — Detailed information of the devices, bitwise coded. More than one message possible at once.
  • Page 29 Not used for FLXA21 CONFIGURATION 53 INIT_STATE AUTO Not used for FLXA21 54 DEVICE_STATE AUTO Not used for FLXA21 55 GLOBAL_STATUS RO — Not used for FLXA21 66 SOFT_DESC — Yokogawa internal use only 67 DEVICE_ — Device status STATUS_1 68 DEVICE_ — Device status STATUS_2 69 DEVICE_ — Device status STATUS_3 70 DEVICE_ —...

  • Page 30: Analog Input Block Parameters

    <6. Function block parameters and Methods> Analog Input Block Parameters Relative Index Parameter Write Initial Value Explanation Index Mode 16 BLOCK_OBJECT — Information on this block such as Block Tag, DD Revision, Execution Time etc. 17 ST_REV The revision level of the static data associated with the function block.

  • Page 31: Transducer Block Parameters

    <6. Function block parameters and Methods> Transducer block parameters (1) Transducer block parameters FLXA21-PH Relative Index Parameter Write Initial Value Explanation Index Mode 16 BLOCK_OBJECT — Information on this block such as Block Tag, DD Revision, Execution Time etc. 17 ST_REV The revision level of the static data associated with the function block.
  • Page 32 <6. Function block parameters and Methods> Relative Index Parameter Write Initial Value Explanation Index Mode 59 REFERENCE_ 25.0 Temperature to which the measured pH value TEMP must be compensated. 60 PROCESS_ None Method of process temperature compensation. TEMP_ COMPENSATION 61 PH_TEMP_ 0.000000 Coefficient of TC (Linear compensation function) COEFFICIENT...
  • Page 33 <6. Function block parameters and Methods> Relative Index Parameter Write Initial Value Explanation Index Mode 94 SENCOM_ 0000/01/01 The last date of heat sterilization judged by preset STERILIZATION_ 0:00:00 temperature and time. Available on SENCOM. LAST_DATE 95 SENCOM_HIGH_ Total time during which temperature has been TEMP1_TOTAL higher than preset temperature 1.
  • Page 34 <6. Function block parameters and Methods> Relative Index Parameter Write Initial Value Explanation Index Mode 121 IMPEDANCE2_ 1000.0 Low limit of Input 2 impedance. LOW_LMT 122 IMPEDANCE2_ 200000.0 High limit of Input 2 impedance. HIGH_LMT 123 DIAG_SETTING_ Disable Enable or Disable of sensor wellness by input1 IMPEDANCE1 impedance.
  • Page 35 <6. Function block parameters and Methods> (2) Transducer block parameters FLXA21-SC Relative Index Parameter Write Initial Value Explanation Index Mode 16 BLOCK_OBJECT — Information on this block such as Block Tag, DD Revision, Execution Time etc. 17 ST_REV The revision level of the static data associated with the function block.
  • Page 36 6-10 <6. Function block parameters and Methods> Relative Index Parameter Write Initial Value Explanation Index Mode 59 TEMP_ 2.10 Available on TEMP_COMPENSATION2 being TC. COEFFICIENT2 60 SECONDARY_ Temperature Item of Secondary value. VALUE_TYPE 61 SECONDARY_ — Secondary value. VALUE 62 SECONDARY_ degC Unit of secondary value VALUE_UNIT 63 SENSOR_TYPE_ Pt1000...
  • Page 37 6-11 <6. Function block parameters and Methods> Relative Index Parameter Write Initial Value Explanation Index Mode 94 CONC_TABLE_ NOT A Conductivity 1 in the additional concentration table. CONDUCTIVITY_1 NUMBER 95 CONC_TABLE_ NOT A Conductivity 2 in the additional concentration table. CONDUCTIVITY_2 NUMBER 96 CONC_TABLE_ NOT A Conductivity 3 in the additional concentration table.
  • Page 38 6-12 <6. Function block parameters and Methods> Relative Index Parameter Write Initial Value Explanation Index Mode 127 ERR_CONFIG_ Warning Category of error status(Fault/Warning/Off) COND_OR_ CONC_TOO_ 128 ERR_CONFIG_ Warning Category of error status(Fault/Warning/Off) TEMP_TOO_ HIGH 129 ERR_CONFIG_ Warning Category of error status(Fault/Warning/Off) TEMP_TOO_LOW 130 ERR_CONFIG_ Warning...

  • Page 39: Diagnostic Information

    Bad - Process related, no maintenance 4-7 Reserved *2 Reserved for use within the PNO — — 0-6 Reserved *2 Reserved for use within the PNO — — EXTENSION_ 0: There is no more information — — AVAILABLE available 1: More diagnosis information is available in DIAGNOSIS_ EXTENSION *1: This bit is Off 10 seconds after On. *2: Not available for FLXA21. IM 12A01A02-72E 3rd Edition : Oct. 01, 2015-00...
  • Page 40 VIOLATION is cleared / not set. 0-7 Reserved *2 Reserved for use within the PNO — 0-6 Reserved *2 Reserved for use within the PNO — EXTENSION_AVAILABLE More diagnosis information is available — *1: This bit is Off 10 seconds after On. *2: Not available for FLXA21. Device status Device setting status and failures of FLXA21 are indicated by using parameter DEVICE_ STATUS_1, DEVICE_STATUS_2, DEVICE_STATUS_3, DEVICE_STATUS_4, DEVICE_ STATUS_5, DEVICE_STATUS_6, DEVICE_STATUS_7 and DEVICE_STATUS_8 (index 51, 52, 53, 54, 55, 56, 57 and 58) in Physical Block. FLXA21-PH DEVICE_STATUS_1: Table 6.3 DEVICE_STATUS_2: Table 6.4 DEVICE_STATUS_3: Table 6.5 DEVICE_STATUS_4: Table 6.6 DEVICE_STATUS_5: Table 6.7 DEVICE_STATUS_6: Table 6.8 DEVICE_STATUS_7: Not used.
  • Page 41 6-15 <6. Function block parameters and Methods> Table 6.3 DEVICE_STATUS_1 NAMUR DIAGNOSIS DIAGNOSIS DIAGNOSIS Error Description and Remedy NE107 (Classic) (Condensed) EXTENSION category Write Unlocked Writing to parameters is — — — — Unlocked. Change the PB Write Lock(PB. WRITE_LOCK) to Locked or turn on the hardware write lock switch.
  • Page 42 Check measured process values. Error in mA table mA table is not properly defined. — — — — Execute 'Check values' on the display of FLXA21. mA calculation error Problem with calculating a mA — — — — value. Check the 'Process parameter' for mA.
  • Page 43 6-17 <6. Function block parameters and Methods> Table 6.5 DEVICE_STATUS_3 (FLXA21-PH: Sensor Fault) NAMUR DIAGNOSIS DIAGNOSIS DIAGNOSIS Error Description and Remedy NE107 (Classic) (Condensed) EXTENSION category pH too high pH reading above the higher limit. Failure in Failure of Sensor Check connections and cable.
  • Page 44 Sensor type not SENCOM sensor type is not Configuration Failure of Configuration correct correct. not valid the device or Error Change SENCOM sensor type armature on the display of FLXA21. Internal error in Replace SENCOM sensor. Hardware Failure of Sensor SENCOM failure the device or Electric electronics. armature Failure...
  • Page 45 6-19 <6. Function block parameters and Methods> Table 6.7 DEVICE_STATUS_5 (FLXA21-PH: Sensor Warning) NAMUR DIAGNOSIS DIAGNOSIS DIAGNOSIS Error Description and Remedy NE107 (Classic) (Condensed) EXTENSION category pH too high pH reading above the higher limit. Failure in Invalid Sensor Check connections and cable.
  • Page 46 Description and Remedy NE107 (Classic) (Condensed) EXTENSION category HART failure Check HART settings on the Hardware Failure of Electric display of FLXA21. Contact your failure the device or Failure local sales office. electronics. armature Maintenance Someone maintenances on the — Function Local display of FLXA21.
  • Page 47 6-21 <6. Function block parameters and Methods> FLXA21-SC DEVICE_STATUS_1: Same as FLXA21-PH. Refer to Table 6.3. DEVICE_STATUS_2: Same as FLXA21-PH. Refer to Table 6.4. DEVICE_STATUS_3: Table 6.10 DEVICE_STATUS_4: Table 6.11 DEVICE_STATUS_5: Table 6.12 DEVICE_STATUS_6: Same as FLXA21-PH. Refer to Table 6.8. DEVICE_STATUS_7: Not used. DEVICE_STATUS_8: Same as FLXA21-PH. Refer to Table 6.9. IM 12A01A02-72E 3rd Edition : Oct. 01, 2015-00...
  • Page 48 6-22 <6. Function block parameters and Methods> Table 6.10 DEVICE_STATUS_3 (FLXA21-SC: Sensor Fault) NAMUR DIAGNOSIS DIAGNOSIS DIAGNOSIS Error Description and Remedy NE107 (Classic) (Condensed) EXTENSION category Conductivity too high Conductivity exceeds high limit. or Failure in Failure of Sensor Resistivity exceeds low limit.
  • Page 49 6-23 <6. Function block parameters and Methods> Table 6.11 DEVICE_STATUS_4 (FLXA21-SC: System Warning) NAMUR DIAGNOSIS DIAGNOSIS DIAGNOSIS Error Description and Remedy NE107 (Classic) (Condensed) EXTENSION category Log Book (almost) Logbook is more than 95% full. Maintenance Maintenance Warning for full Erase logbooks. Turn logbook required...

  • Page 50: Status Of Each Parameter In Failure Mode

    6-24 <6. Function block parameters and Methods> Table 6.12 DEVICE_STATUS_5 (FLXA21-SC: Sensor Warning) NAMUR DIAGNOSIS DIAGNOSIS DIAGNOSIS Error Description and Remedy NE107 (Classic) (Condensed) EXTENSION category Conductivity too high Conductivity exceeds high limit. or Failure in Invalid Sensor Resistivity exceeds low limit.
  • Page 51 6-25 <6. Function block parameters and Methods> FLXA21-PH Table 6.13 Action of each parameters in failure mode related Sensor Transducer block (Classic status) TB .status Alarm / Status Ref. ORP1 Empty Temperature1 impedance1 Write Unlocked — — — — —...
  • Page 52 6-26 <6. Function block parameters and Methods> TB .status Alarm / Status Ref. ORP1 Empty Temperature1 impedance1 Checksum error Fault BAD-Sensor BAD-Sensor BAD-Sensor BAD-Sensor BAD-Sensor BAD- in SENCOM Failure Failure Failure Failure Failure Configuration (Setting data) Error EEPROM error Fault BAD-Sensor BAD-Sensor BAD-Sensor BAD-Sensor...
  • Page 53 6-27 <6. Function block parameters and Methods> TB .status Alarm / Status Ref. ORP1 Empty Temperature1 impedance1 Impedance 2 too UNCERTAIN- — UNCERTAIN- UNCERTAIN- — BAD- Warning high sensor sensor sensor Configuration conversion conversion conversion Error not accurate not accurate not accurate Impedance 2 too UNCERTAIN-...
  • Page 54 6-28 <6. Function block parameters and Methods> Table 6.14 Action of each parameters in failure mode related Sensor Transducer block (Condensed status) Alarm / Status TB .status ORP1 Ref. Empty Temperature1 impedance1 Write Unlocked — — — — — — UNCERTAIN- Hard Write Lock —...
  • Page 55 6-29 <6. Function block parameters and Methods> Alarm / Status TB .status Temperature1 ORP1 Ref. Empty impedance1 rH too high Fault — — — BAD- — UNCERTAIN- maintenance initial value alarm, more diagnosis available rH too low Fault — — —...
  • Page 56 6-30 <6. Function block parameters and Methods> Alarm / Status TB .status Temperature1 ORP1 Ref. Empty impedance1 pH too low UNCERTAIN- — — UNCERTAIN- — UNCERTAIN- Warning process process initial value related, no related, no maintenance maintenance Temperature too UNCERTAIN- UNCERTAIN- —...
  • Page 57 6-31 <6. Function block parameters and Methods> Alarm / Status TB .status Temperature1 ORP1 Ref. Empty impedance1 AI3 Empty — — — — — — UNCERTAIN- AI3 Hi Hi Alarm — — — — — — initial value AI3 Hi Alarm —...
  • Page 58 6-32 <6. Function block parameters and Methods> FLXA21-SC Table 6.15 Action of each parameters in failure mode related Sensor Transducer block (Classic status) TB .status Conduct1- Conduct1- Alarm / Status Concent1- Concent1- USP1 Empty Temperature1 Resist1-TC1 Resist1-TC2 Write Unlocked —...
  • Page 59 6-33 <6. Function block parameters and Methods> TB .status Conduct1- Conduct1- Alarm / Status Concent1- Concent1- USP1 Empty Temperature1 Resist1-TC1 Resist1-TC2 Logbook — — — — — — BAD- Warning (almost) full Configuration Calibration Due — Warning UNCERTAIN- UNCERTAIN- UNCERTAIN- UNCERTAIN- UNCERTAIN- Error...
  • Page 60 6-34 <6. Function block parameters and Methods> Table 6.16 Action of each parameters in failure mode related Sensor Transducer block (Condensed status) TB .status Conduct1- Conduct1- Alarm / Status Concent1- Concent1- USP1 Empty Temperature1 Resist1-TC1 Resist1-TC2 Write Unlocked — — —...
  • Page 61 6-35 <6. Function block parameters and Methods> TB .status Conduct1- Conduct1- Alarm / Status Concent1- Concent1- USP1 Empty Temperature1 Resist1-TC1 Resist1-TC2 Conc. table error Fault — — — BAD- — — UNCERTAIN- maintenance initial value alarm, more diagnosis available 2nd comp. Fault BAD- BAD- —...
  • Page 62 6-36 <6. Function block parameters and Methods> TB .status Conduct1- Conduct1- Alarm / Status Concent1- Concent1- USP1 Empty Temperature1 Resist1-TC1 Resist1-TC2 1st. comp. BAD- BAD- — BAD- BAD- — UNCERTAIN- Warning matrix error maintenance maintenance maintenance maintenance initial value alarm, more alarm, more alarm, more alarm, more...

  • Page 63: Revision Record

    Revision Record l Manual Title : FLXA21 2-Wire Analyzer PROFIBUS PA Communication l Manual No. : IM 12A01A02-72E Oct. 2015/3rd Edition Correction (Page iv) Apr. 2015/2nd Edition Correction (Pages 2-1 and 4-4) Feb. 2015/1st Edition Newly published Yokogawa Electric Corporation 2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750, JAPAN Homepage: http://www.yokogawa.com/ IM 12A01A02-72E 3rd Edition : Oct. 01, 2015-00...
  • Page 64 *7: This marking conforms to Intrinsic safety of NEPSI. *8: This marking conforms to Intrinsic safety of KOSHA. n Regulatory Compliance Please refer to IM 12A01A02-20E (Model FLXA202 / FLXA21 2-Wire Analyzer Safety Precautions.) All Rights Reserved. Copyright © 2015, 5th Edition: Aug. 10, 2017 (YK) IM 12A01A02-72E 1/1...
