Smart Machine Smart Decision

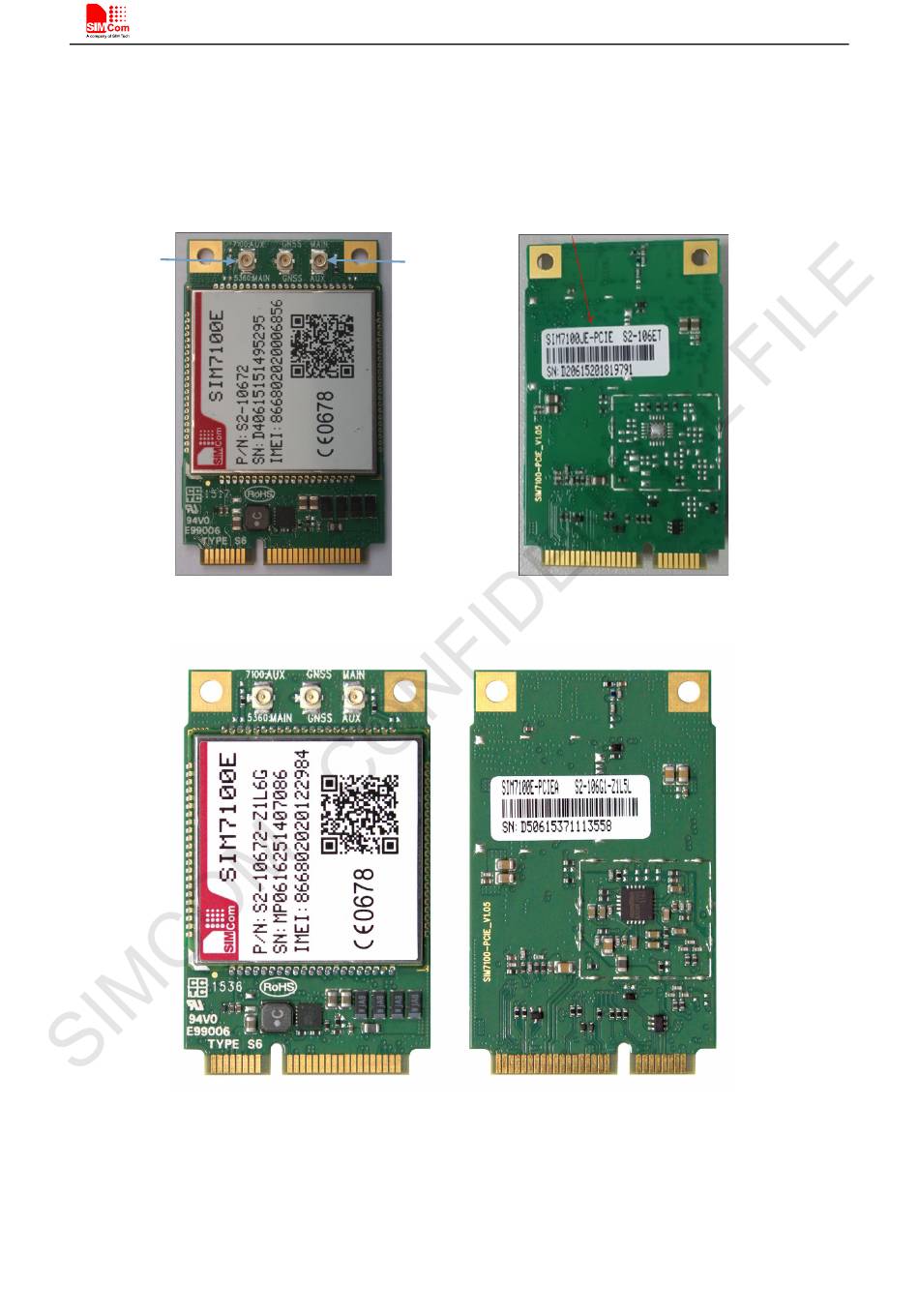

6 Product label
Top and Bottom view of the SIM7100A/C/E/CE/JC/JE-PCIE
Main: Main antenna RF connector
；
Div: Div antenna RF connector;
Div antenna
Main antenna
Figure 29: the Lable of SIM7100-PCIE
Figure 30: the Lable of SIM7100-PCIEA
SIM7100-PCIE_Hardware_Design_V1.05
41
2017-02-24
