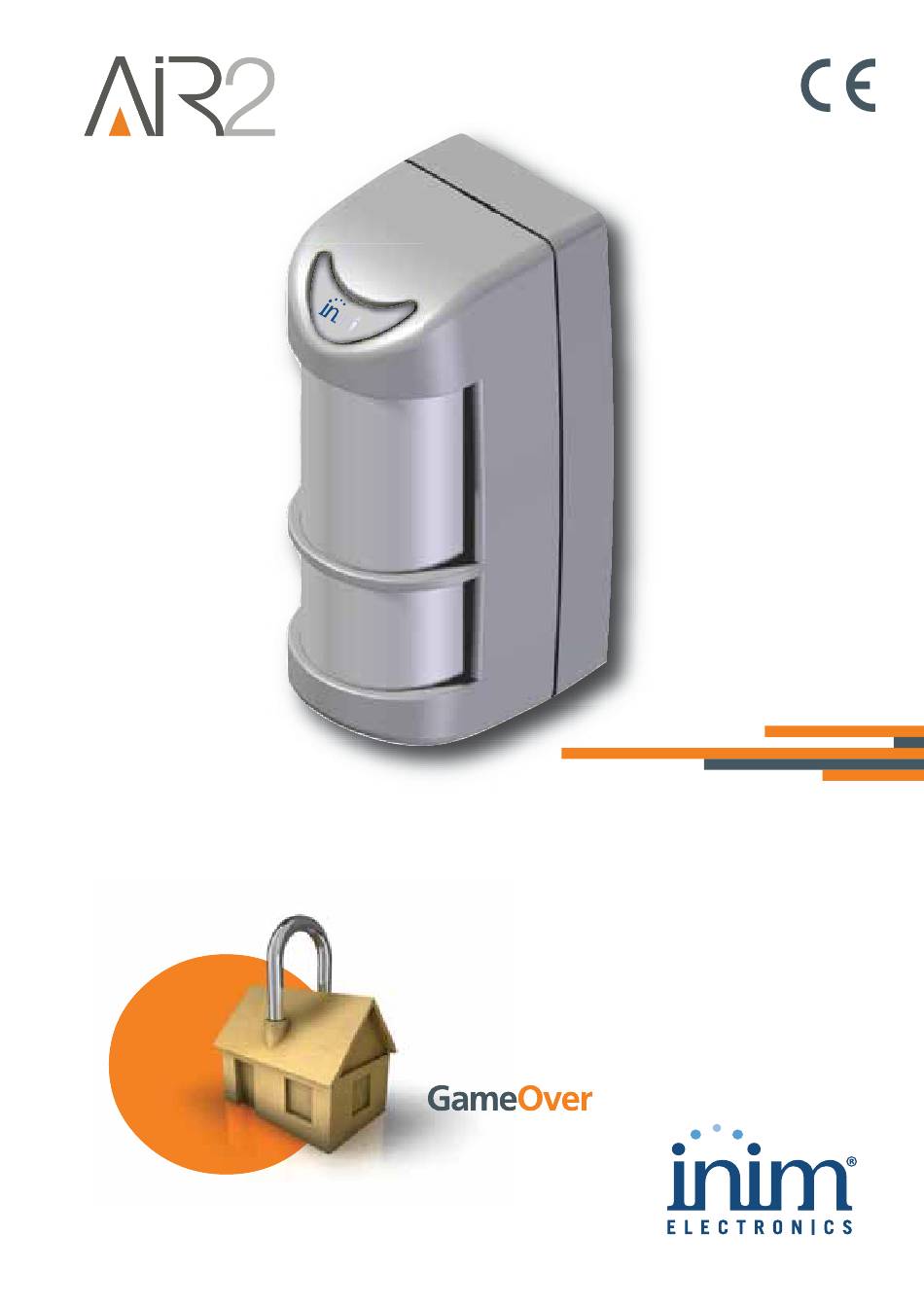

- Page 1 Installation and programming manual Air2-OTT100W Triple technology wireless detector for outdoor use Installation and programming manual...
-
Page 2: Table Of Contents
Declaration of conformity ......10 Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. All rights reserved. -
Page 3: General Information
Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work on INIM Electronics brand devices only. Description of the product • Wireless detector for outdoor use •... - Page 4 Air2-OTT100W Table 2: Mechanical parts description “U” shaped bracket “L” shaped bracket Hermetic casing base Electronic holder (sensors in front and transceiver on the back) Cover with Fresnel lens Lower PIR range adjustment knob Anti tamper microswitch Electronics and sensors “O-ring”...
-
Page 5: Package Contents
Installation and programming manual The Air2-OTT100W detector communicates with INIM intrusion control panel via the Air2 two-way wireless intrusion protection system. Table 4: Technical specifications of Air2 system range 868.0 - 868.6MHz Operating frequency selectable channels 868.1, 868.3, 868.5MHz RF output power 25mW e.r.p. -
Page 6: Operating Principles
Air2-OTT100W The knob moves vertically the RIP along the marked positions on the holder. Each position corresponds to a distance: Table 6: Side view PIR2 Distance position 10 m 1.2m 12 m These distances are reached when the detector is installed at about 120cm (height). -
Page 7: Test" Function
Installation and programming manual “Test” function This function has been implemeted in order to make the detector easy to set up. The function can be activated disconnecting and connecting again the jumper (table 3, S); within a minute the function will be operative. In this mode the LED will be lighted for each detection. -
Page 8: Installation Procedure
Air2-OTT100W Note The maximum coverage range, 12m, is reached when the detector is installed at about 120cm (height). Do not obscure partially or completely the detector’s field of view. Place the detector no less than 2m away from the Air2-BS200 transceiver. -
Page 9: Maintenance And Periodic Checks
Installation and programming manual Table 9: Sensor programming DIP 3 Triple AND: Double AND: MW + PIR 1 + PIR 2 MW + PIR 2 The detection of the MW Each techmology must and the detection of the PIR detect a motion to activate 2 activate the alarm (PIR1 the alarm disabled) -
Page 10: Appendix Declaration Of Conformity
1999/5/EC. Islenska: Hér með lýsir INIM Electronics yfi r því að Air2-OTT100W er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. - Page 11 Installation and programming manual Notes...
- Page 12 Air2-OTT100W ISO 9001 Quality Management certified by BSI with certificate number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP) Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINIEA2OTT100W-120-20171222...
