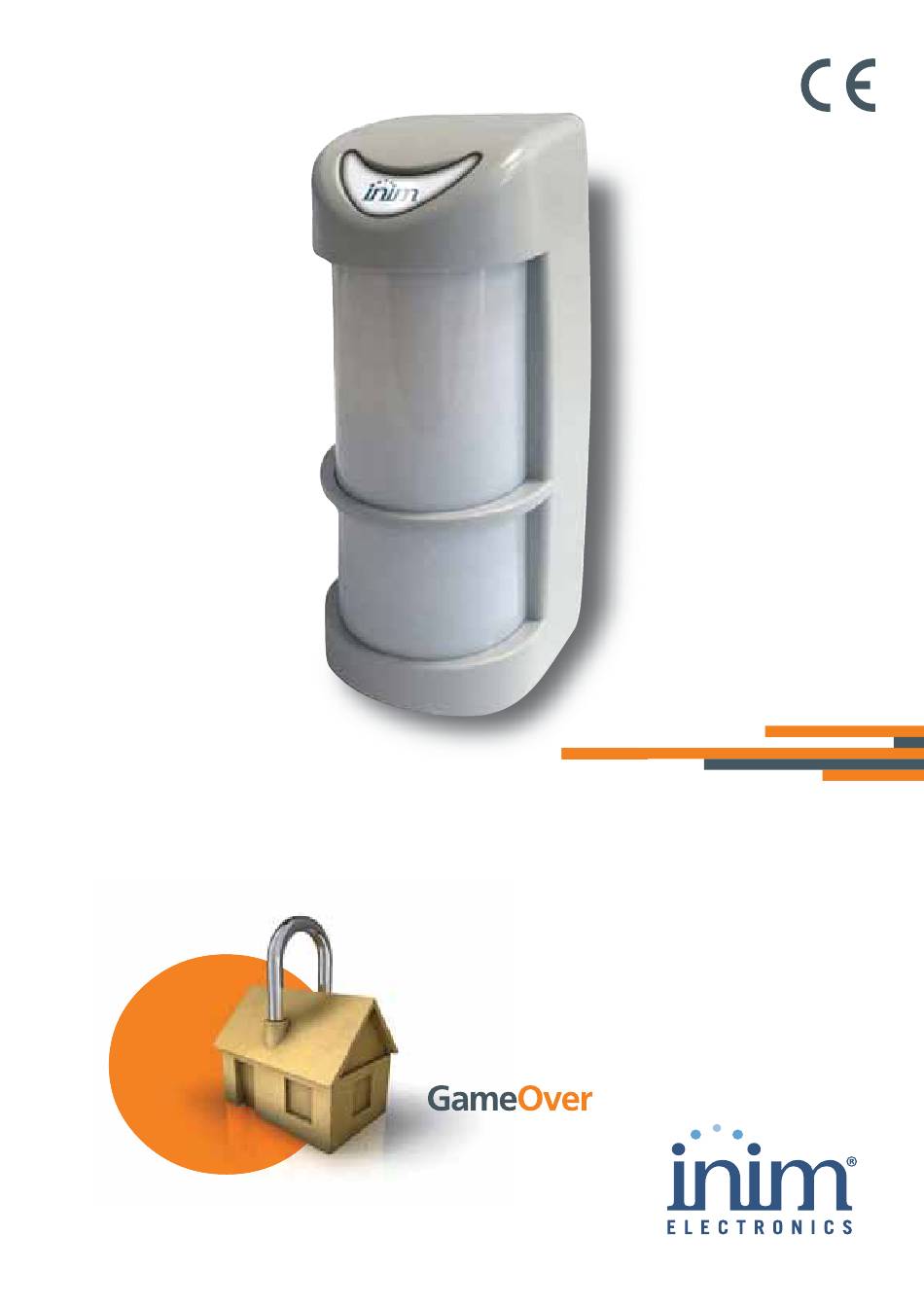

- Page 1 Installation and programming manual OTT100H Triple technology detector for outdoor use Installation and programming manual...
-
Page 2: Table Of Contents
OTT100H Table of contents General information......3 About this manual ........3 Manufacturer's details. -
Page 3: General Information
Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work on INIM Electronics brand devices only. Description of the product • Triple technology detector for outdoor use •... - Page 4 OTT100H Table 1: OTT100H technical features Power-supply from 9 to 15 V Maximum current 20mA Microwave frequency K band Maximum RF output power <17 mW e.i.r.p. (12.31 dBm) Detection range from 3 to 18m Horizontal coverage angle 85° Horizontal coverage adjustment +/- 45°...
-
Page 5: Package Contents
24 h anti tamper output standby ALARM Alarm output Package contents Inside the package you will find: • OTT100H detector • Stainless steel wall fixing bracket • Installing manual (this) • Plastic bag containing: •• 2 stainless steel metric screw M3 x 8 ••... -
Page 6: Functioning
OTT100H FUNCTIONING Detection range Table 5: Top view Zones that can not be 170° covered 85° Zones that can be covered by electronic holder rotation ADJUSTMENT Use the trimmer “MW” (table 3, Q) to adjust the microwave sensitivity (the sensitivity is increased turning it clockwise). -
Page 7: Antimasking" Function
Installation and programming manual Table 7: Working examples Detector Protected area limit The pet is detected only by two of the three sensors (lower PIR and MW). No alarm The person is detected by all three sensors (upper PIR, lower PIR, MW). Alarm The person is detected by two sensors (upper PIR and MW). -
Page 8: Leds Enabling
OTT100H LEDs enabling LED signalling activations can be enabled via the DIP switch 6 (table 3, T): • OFF set - LEDs enabled • ON set - LED disabled INSTALLATION WARNING • The wall does not have any pronounced depressions or protrusions. -
Page 9: Programming
Installation and programming manual Block them with the inner screws (table 2, K) and the external screws (table 2, J). WALL FIXING Perforate the wall in correspondence of the holes on the casing. Insert the wall plugs into the holes. Pull the wires through the wire entry on the steel bracket. -
Page 10: Trouble Shooting
OTT100H TROUBLE SHOOTING Table 11: Possible solutions Trouble Solution Check wiring connection. LEDs fail to switch on Check the presence of current and if the voltage is between 9.5 and 16 V. Make sure that DIP switch 6 is set to OFF. -
Page 11: Simplified Eu Declaration Of Conformity
2014/53/ : www.inim.biz : Por la presente, INIM ELECTRONICS S.R.L. declara que el tipo de equipo radioeléctrico OTT100H es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: www.inim.biz : INIM ELECTRONICS S.R.L. - Page 12 OTT100H Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP) Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz Simplified EU Declaration of Conformity...
