SIM900D Hardware Design
6 Mechanics
This chapter describes the mechanical dimensions of SIM900D.
6.1 Mechanical Dimensions of SIM900D
Following shows the Mechanical dimensions of SIM900D (top view, side view and bottom view).
Dimensions shown in millimeters

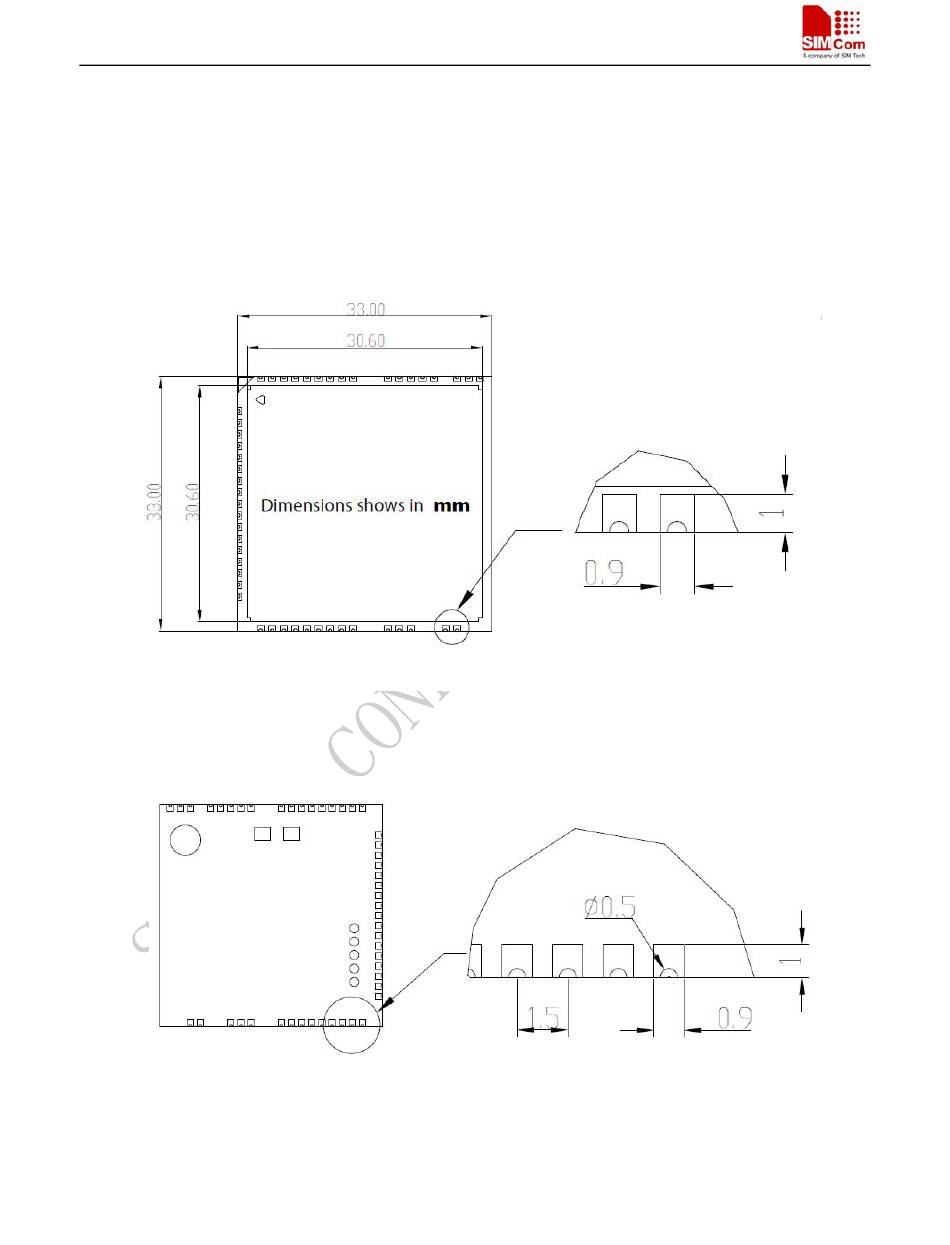

Figure34: SIM900D top mechanical dimensions
Figure35: SIM900D bottom mechanical dimensions
7
SIM900D_Hardware Design_V1.04
2010.10.09
