3.10.2 Microphone Interfaces Configuration

MODULE
MIC1P
MIC1N

3.10.3 Earphone Interface Configuration

MIC2N
MIC2P
MODULE
SPK2P
SIM900D_Hardware Design_V1.04
Differential layout

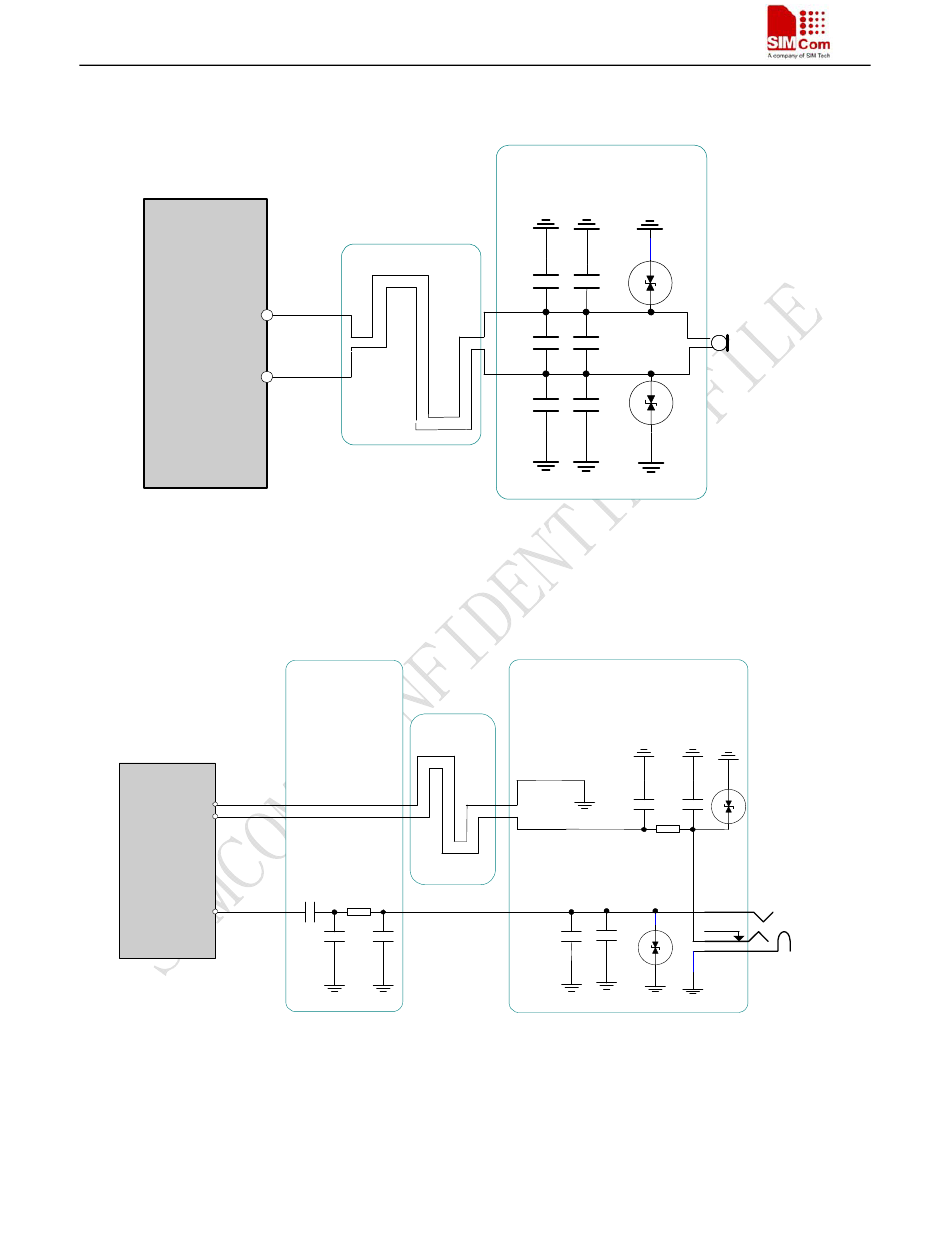

Figure23: Microphone interface configuration
Close to MODULE Differential
layout
1uF
10R
33pF 33pF
GND GND
Figure24: Earphone interface configuration
