3.15 Network Status Indication
The NETLIGHT can be used to drive a network status indication LED lamp. The working state of this pin is listed
in following table:
Table22: Working state of the NETLIGHT
State
Off
64ms On/ 800ms Off
64ms On/ 3000ms Off
64ms On/ 300ms Off
Provide a reference circuit for user, shown as following figure:
SIM900D_Hardware Design_V1.04

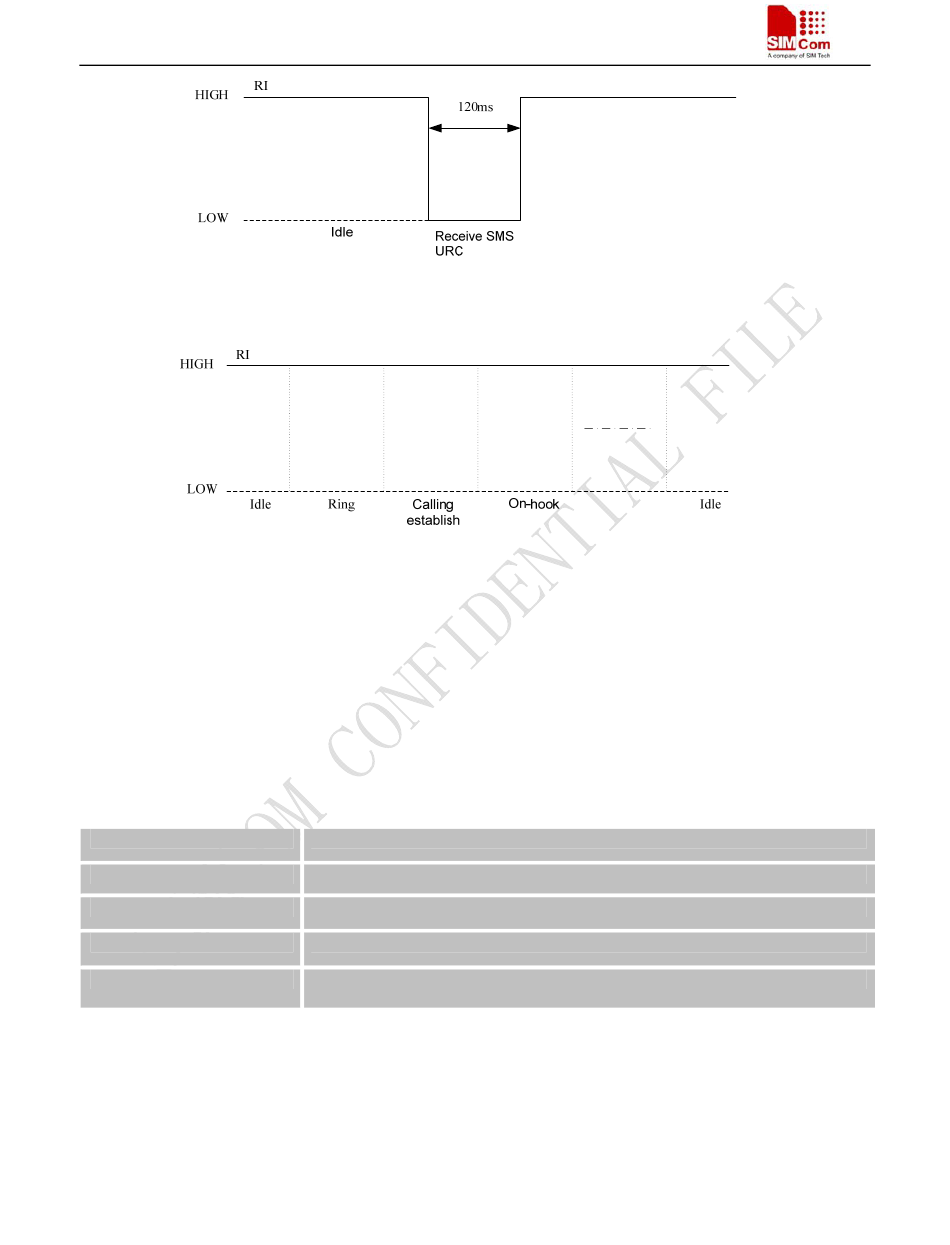

Figure31: RI behaviour of URC or receive SMS
Figure32: RI behaviour as a caller
SIM900D function
SIM900D is not running
SIM900D does not find the network
SIM900D find the network
GPRS communication
50
2010.10.09
