Honeywell Ex-Or CDW12U5 Installation And Commissioning Instructions

Mls connect digital plug-in programmable lighting control module
Hide thumbs

Advertisement

Quick Links

MLS Connect Digital
Plug-in Programmable Lighting Control Module
CDW12U5
Installation and Commissioning Instructions

Advertisement

loading

  Related Manuals for Honeywell Ex-Or CDW12U5

  Summary of Contents for Honeywell Ex-Or CDW12U5

  • Page 1 MLS Connect Digital Plug-in Programmable Lighting Control Module CDW12U5 Installation and Commissioning Instructions...

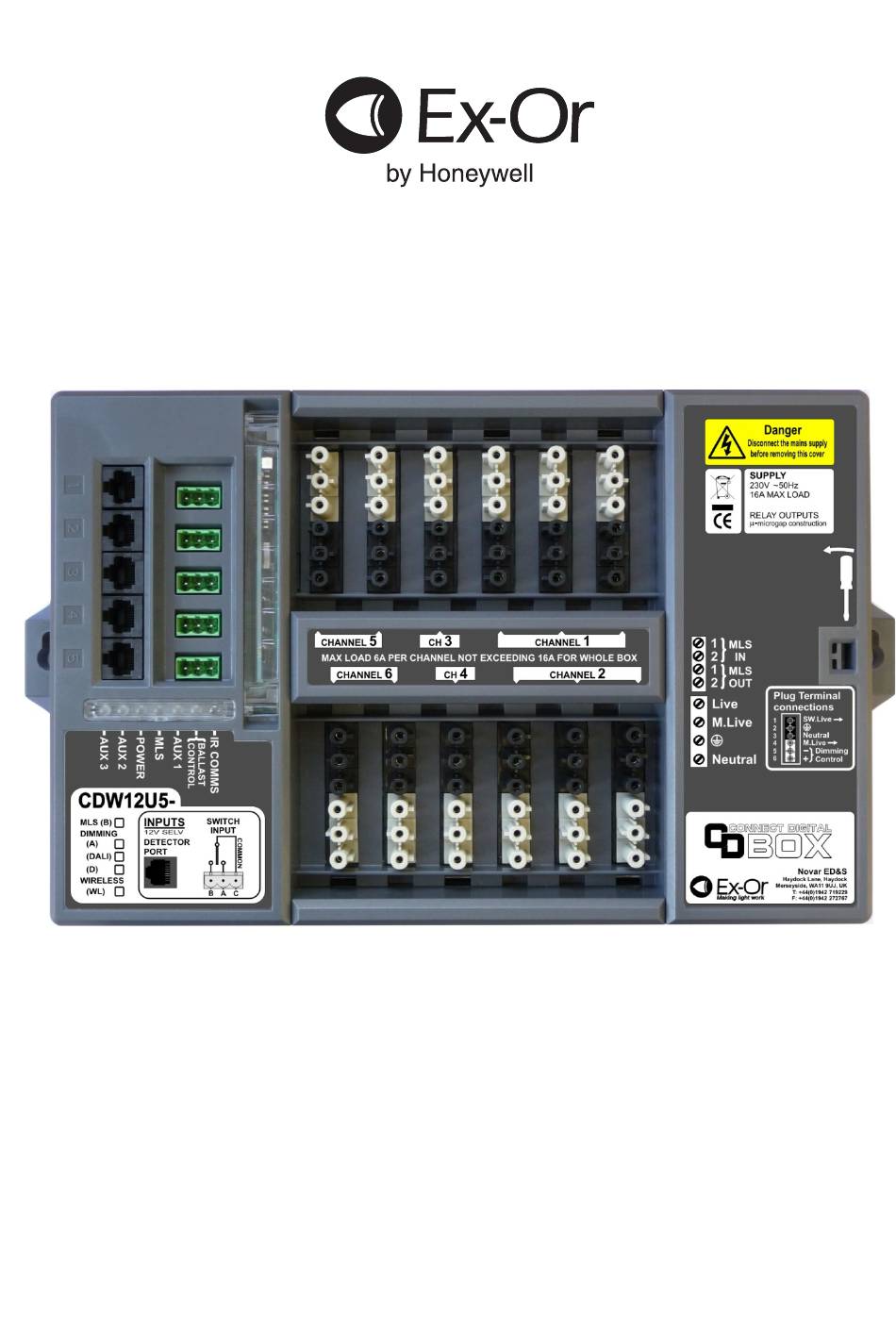

  • Page 2 Introduction Channel 5 Channel 3 Channel 1 The CDW12U5 is an intelligent lighting control module (LCM) or connection box providing connections for up to twelve luminaires, up to five sensors and up to five switch inputs. The unit is designed to simplify installation whilst providing an intelligent managed lighting system, including provision for emergency lighting.
  • Page 3 Commissioning The CDW12U5 can be commissioned using the QuickSet Pro hand-held programmer or from a dedicated programme running on a portable PC. Communication from the PC can be by means of a USB Infrared Transceiver which can signal directly to the CDW12U5's onboard infrared port over a short range or via any attached detector over longer ranges. Alternatively a specialised wired serial link can be established with the CDW12U5 itself.
  • Page 4 CPWL6S GST-6 Ex-Or Plug-locking mechanism (shell only) CDWIP Switch Input Plugs (set of 5) Honeywell Ex-Or At the end of their useful life St. Marks Court, North Street, Horsham, West Sussex, RH12 1BW, UK. the packaging and product Tel: +44 (0)1942 719229, Fax: +44 (0)1942 508753 should be disposed of via a suitable recycling centre.
