Summary of Contents for Midea MD-RT468WEDMX02
-

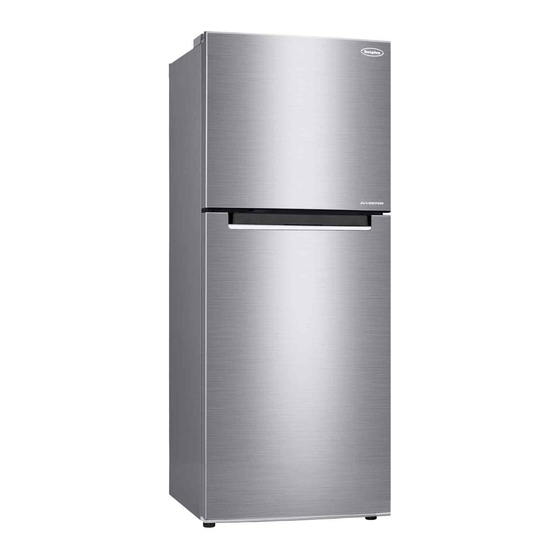

Page 1: User Manual
User Manual MD-RT468WEDMX02 MD-RT468WEDMX06... - Page 5 1 4 War nings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
- Page 6 Do not store beer, beverage or other fluid contained in bottles or Freezing chamber enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy Warning for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period...
- Page 7 2 Proper use of refrigerators 2 1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
-
Page 8: Leveling Feet
2.2 Leveling feet Schematic diagram of the leveling feet (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. - Page 9 2)Please dismantle the fitting screws of top cover, and lift the top cover up a little,then disconnect the connection of signal line A and B,take out the sensor, and separate the right hinge cover from top cover; disconnect the connection of signal line E and D, then remove the fitting screws of right hinge and remove the freezer door.
- Page 10 4)Dismantle the lower hinge assembly and levelling foot C, then dismantle the sleeve pipe and hinge shaft, move levelling foot B to right hole,Install the hinge shaft and sleeve pipe to the left hole of lower hinge, and then install the lower hinge assembly to the lower left corner of the refrigerator.
- Page 11 5)Dismantle the stoppers and self-locks of both refrigerator door and freezer door, and take out the spare left self-locks from accessory bag, and install the said stoppers and spare left self-locks on left corners of both doors; exchange the installation position of sleeve pipe and hole cap of refrigerator door;dismantle the upper end cover of freezer door, and move the signal line E from right side to left together with the sleeve pipe;...
- Page 12 7)Move the decorative cover of top cover from left side to right side,take out the left hinge cover from accessory bag, and fix it on left side of top cover; put the freezer door on middle hinge vertically, connect the signal line E to signal line F, connect the signal line A to signal line B, connect the signal line C to signal line D;...
- Page 13 Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. 2 5 Starting Before initial start, keep the refrigerator still for t hour before connecting it to power supply.
- Page 14 3 1 Key components LED light shelf Door tray LED light Temperature control Manual air damper Door tray shelf Deoderizer Humidity controlling glass shelf Fruits and vegetables box (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) Refrigerating chamber The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages...
- Page 15 3 2 Functions (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) 1 Key A.Temperature setting button of refrigerator compartment 2 Display screen setting 1 8 setting 2 setting 3 setting 4 3)Display when electrify the refrigerator for first time,the display screen shines fully for 3 seconds, and then...
- Page 16 4. Maintenance and care of the refrigerator 4.1 Overall cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning.
- Page 17 5)The reverse operation is for assembly; NOTE: for gasket assembly, please press the upper right corner of gasket into the upper right corner of door liner, then press the upper side and right side of gasket into the door liner, finally to press the left side and lower side of gasket into door liner.
-
Page 18: Troubleshooting
5 Trouble shooting You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact . Failed operation Check whether the voltage is too low.
