Summary of Contents for Midea MF172W
-

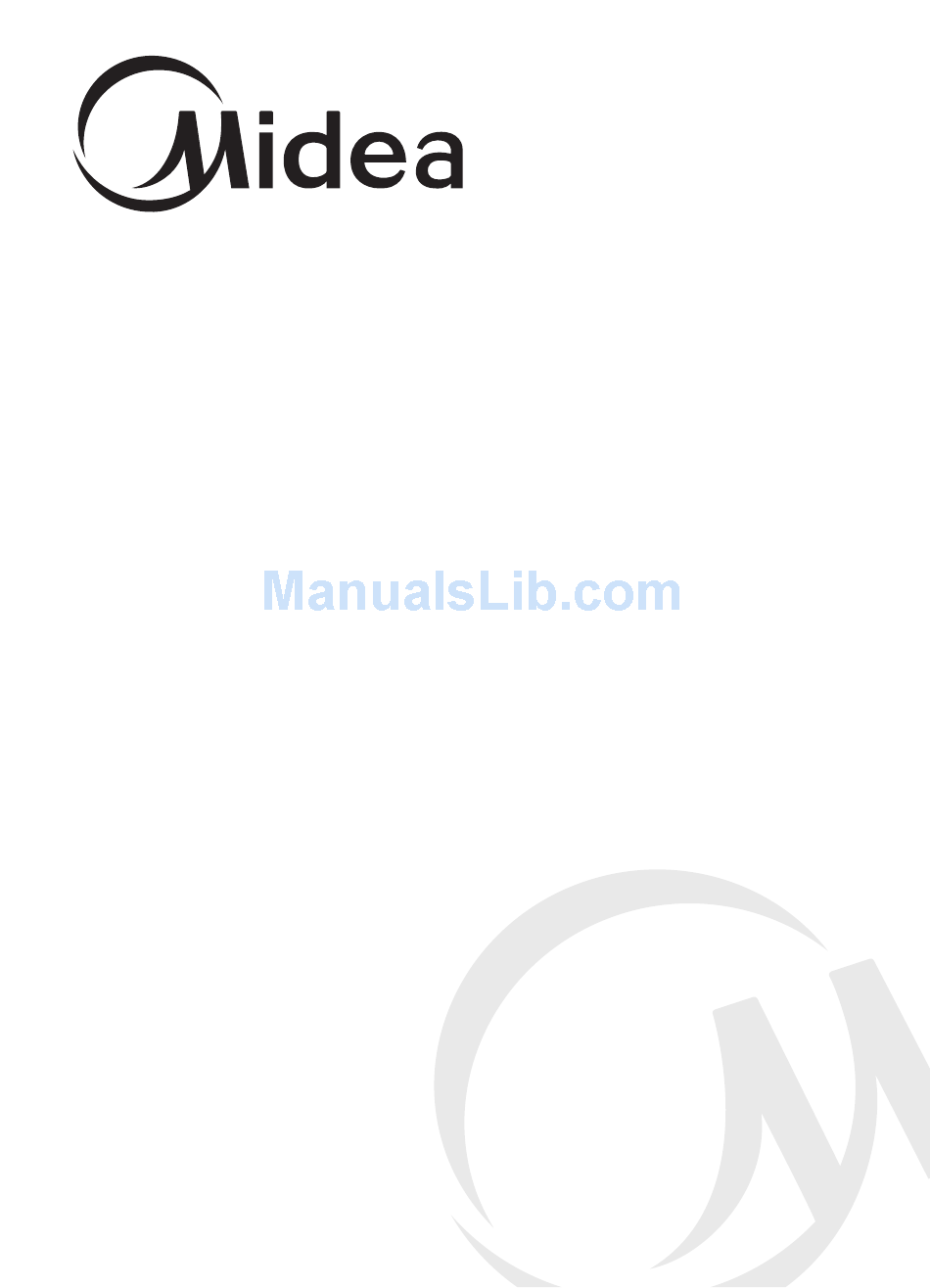

Page 1: User Manual
Upright Freezer USER MANUAL MF172W... -
Page 3: Table Of Contents
CONTENTS Safety information ........2-3 Identifying parts of the freezer ........4 Transporting ........5 Installation ........5 Reversing the door ........6-7 Operating instructions ........8 Cleaning & Maintenance ........8-9 Energy saving tips ........10 Disconnection of the appliance ........ -
Page 4: Safety Information
The appliance has not been designed or manufactured for professional use. Midea declines all responsibility for damage deriving from improper use of the appliance. The freezer has undergone the necessary tests on the tightness of the refrigeration circuit and complies with the safety regulations. -
Page 5: Safety Information
- Do not place objects on top of the appliance which are magnetic, heavy or filled with water. - If the supply cord is damaged, it must be replaced by authorised Midea service personal, service agent or similarly qualified persons in order to avoid a hazard. -
Page 6: Identifying Parts Of The Freezer
IDENTIFYING PARTS OF THE FREEZER Temperature control Freezer drawers Freezer compartment cover Adjustable foot... -
Page 7: Transporting
TRANSPORTING Keep the freezer upright and avoid squeezing or vibration during transport. Avoid a slanting angle over 45 degrees during handling. Avoid the door or top cap from being under excessive stress when moving, otherwise it may become deformed. Do not connect your freezer to the power supply immediately after it is placed vertically. -
Page 8: Reversing The Door
REVERSING THE DOOR Please ensure the freezer is unplugged from the main power source and any items removed from inside the freezer before reversing the door. WARNING Follow below steps to reverse the door from the supplied position. step 1 Remove the cover from the hinge. - Page 9 REVERSING THE DOOR Carefully tilt the freezer back to access the step 6 bottom hinge assembly. Note: Do not tilt >45°. Using a phillips head screwdriver, remove the screws holding the hinge in place. Unscrew the adjustable foot from the opposite side. bottom hinge assembly adjustable foot Relocate the bottom hinge to the opposite...
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Controlling the temperature The temperature of the freezer can be controlled manually by adjusting the temperature dial. Turning the temperature dial (page 4 item 1) to position MAX will lower the interior temperature to the coldest setting. Turning the temperature dial to position MIN will increase the interior temperature to the warmest setting. -
Page 11: Cleaning & Maintenance
CLEANING & MAINTENANCE Cleaning the appliance Before cleaning: Turn appliance off at the power point, then remove the power cord from the outlet. This will make sure there is no chance of electric shock. WARNING Interior Clean the freezer interior regularly. Turn power off. Wipe the interior with a soft cloth and lukewarm soapy water. -
Page 12: Energy Saving Tips
ENERGY SAVING TIPS Reduce opening the door frequently. This will increase the appliance efficien reduce power consumption. Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer. There should always be some space between food items for proper air circulation. -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you think so e ing may be wrong with your freezer, you can carry out some easy checks before m th calling for service. Y o u m y lo e th e problem and spare yourself from inconvenience, saving time and money. -
Page 14: Repairs, Service & Warranty
Please refer to the enclosed warranty card or visit www.mideaappliances.com.au for warranty information. Ensure you have the appliance model number and proof of purchase handy before calling Midea Customer Care to enquire about a warranty claim. Complete and retain the following information for your records: Model No. -
Page 15: Specifications
SPECIFICATIONS Model MF172W Climate class Classification of installation and Class 1 Indoor use only Rated Total Gross Volume 172L Voltage 220-240V / 50Hz Noise Level 42dB Refrigerant type R600a Height 1420mm Dimensions Width 550mm Depth 550mm IP rating IPX0 Net Weight...
