Important Note - dirna Bergstrom Bycool Compact TRP Compact User Handbook Manual

COMPACT
EN
Take care not to invert polarities when connecting the unit. If this were to happen, the control plate
will not come on, the unit will not work.
Centrifugal
blower
4 Amp.
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module

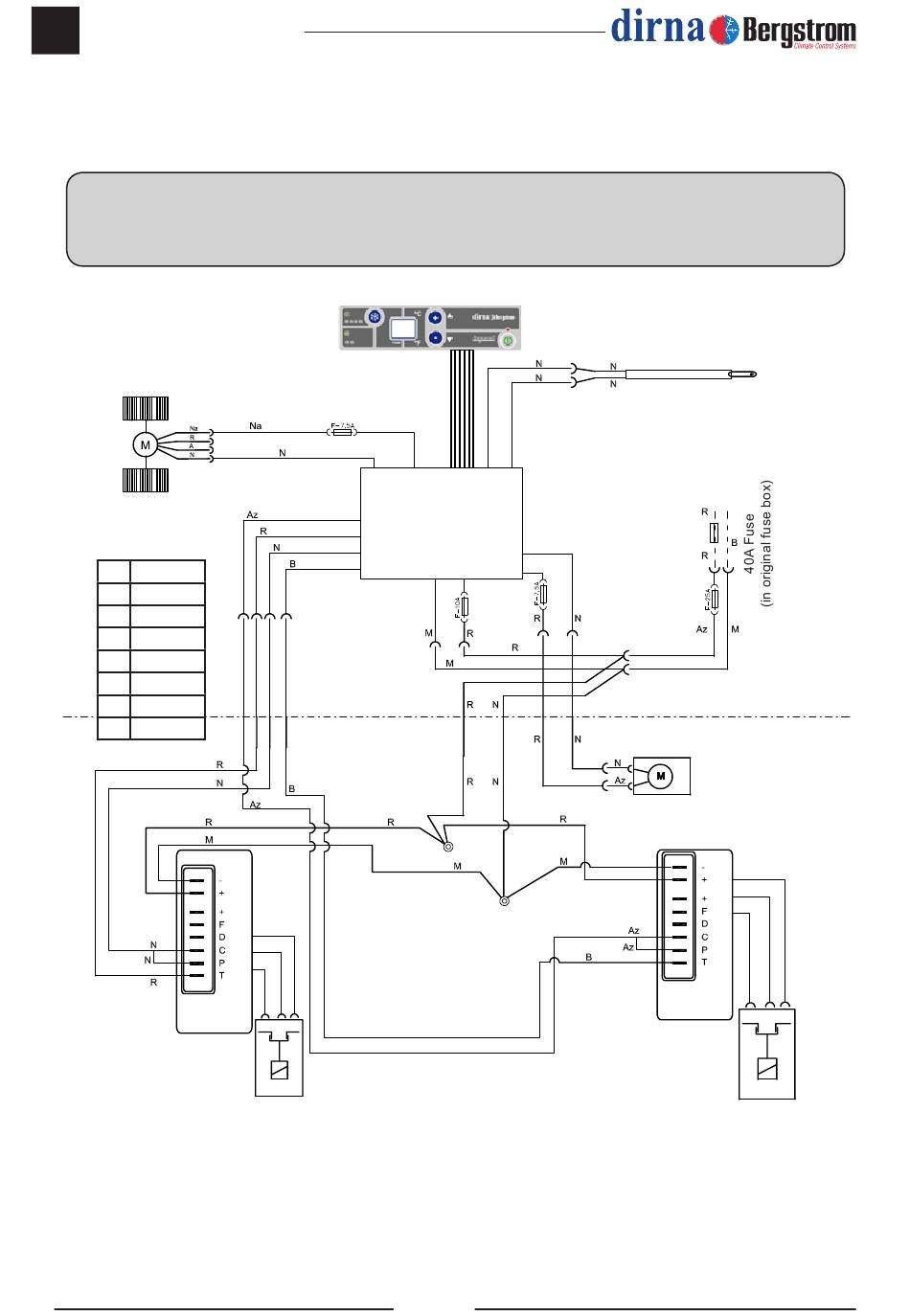

ALL EURO 5 MODELS - Wiring Diagram

IMPORTANT NOTE!

Electronic
control
2 Compressor
Comsuption 30 mAmp.
12
Air conditioning for vehicles
Return
air sensor
NTC 15KΩ a 25º
Condenser
fan
2 Amp.
PWM.
Compressor
electronic
module
1 Compressor
