Chore-Tronics NV Control
The white text with black background
designates those areas that can be edited to
the individual growers specifications.
When viewing the actual Control Display,
the text will be black with a shaded green
background.
MT1558B

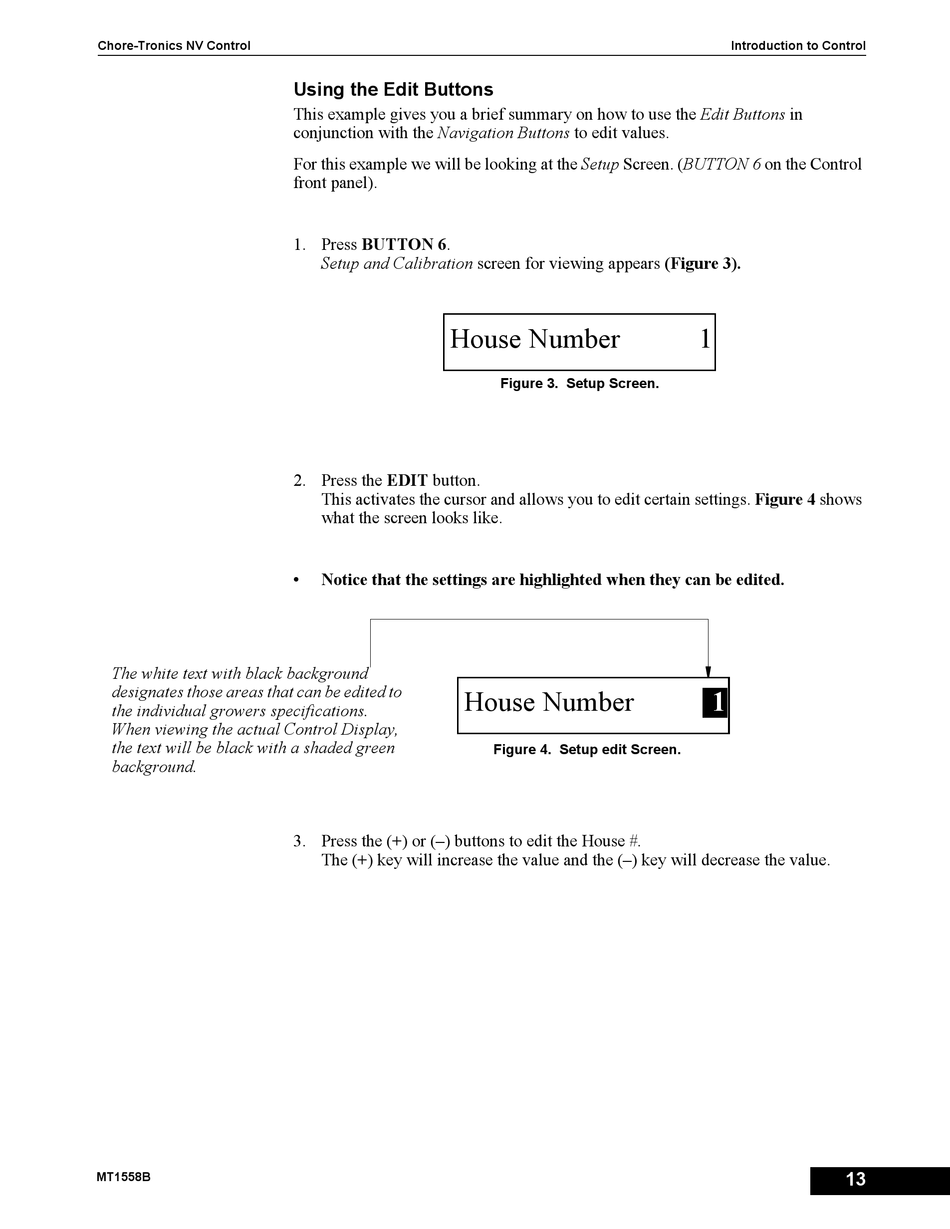

Using the Edit Buttons

This example gives you a brief summary on how to use the Edit Buttons in
conjunction with the Navigation Buttons to edit values.
For this example we will be looking at the Setup Screen. (BUTTON 6 on the Control
front panel).
1. Press BUTTON 6.
Setup and Calibration screen for viewing appears (Figure 3).
House Number
2. Press the EDIT button.
This activates the cursor and allows you to edit certain settings. Figure 4 shows
what the screen looks like.
• Notice that the settings are highlighted when they can be edited.
House Number
3. Press the (+) or (–) buttons to edit the House #.
The (+) key will increase the value and the (–) key will decrease the value.
Figure 3. Setup Screen.
Figure 4. Setup edit Screen.

Introduction to Control
1
1
13
