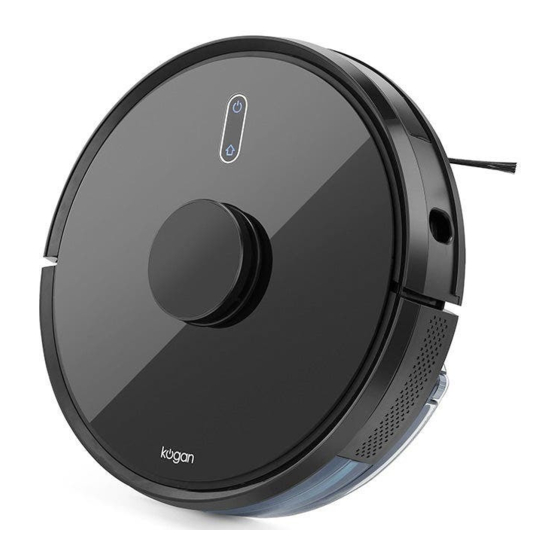

SmarterHome LX10 Robot Vacuum with Mopping
Table of Contents
· Safety & Warnings--------------------------------------------------------------------2
·
Overview--------------------------------------------------------------------------------3
·
Installation-----------------------------------------------------------------------------5
· Install the Application---------------------------------------------------------------8
· Google Home Control---------------------------------------------------------------10
· Alexa------------------------------------------------------------------------------------11
· Operation------------------------------------------------------------------------------12
· Cleaning & Care----------------------------------------------------------------------16
· Specifications-------------------------------------------------------------------------21
· Troubleshooting------------ ---------------------------------------------------------22
· In the Box------------------------------------------------------------------------------23
Function
KAVACRBL10A
Quick Start Guide
1
Advertisement
Table of Contents
Related Manuals for Kogan SmarterHome LX10
Summary of Contents for Kogan SmarterHome LX10
-
Page 1: Table Of Contents
SmarterHome LX10 Robot Vacuum with Mopping Function KAVACRBL10A Quick Start Guide Table of Contents · Safety & Warnings--------------------------------------------------------------------2 · Overview--------------------------------------------------------------------------------3 · Installation-----------------------------------------------------------------------------5 · Install the Application---------------------------------------------------------------8 · Google Home Control---------------------------------------------------------------10 · Alexa------------------------------------------------------------------------------------11 · Operation------------------------------------------------------------------------------12 · Cleaning & Care----------------------------------------------------------------------16 · Specifications-------------------------------------------------------------------------21 ·... -
Page 2: Safety & Warnings
Safety & Warnings Usage Limitations • This product is used for floor cleaning in a home environment only and cannot be used for outdoor (such as open terrace), non- ground (such as sofa) and commercial or industrial environment. • Please do not use the product in midair areas (such as penthouse, open terrace and furniture top) without protective fence. -
Page 3: Overview
Overview Machine Filter screen Wall sensor cover Dust box button System reset key System upgrade port Sensor and Structure Laser distance sensor Radar avoidance sensor Infrared avoidance sensor Recharging sensor... -
Page 4: Charging Base
Cliff sensor Charging contact Universal wheel Side brush Battery cover Main wheel Rolling brush Rolling brush cover buckle Charging Base Power light Signal emission area Charger shrapnel Catching groove Cover plate... -
Page 5: Installation
Outlet groove Power port Wrapping post Installation 1. Connect power line and put surplus wire rod in the wiring duct. 2. Place the charging base against the wall on flat ground and connect the power. Note · Ensure a space of above 0.5m on both sides of the charging base and a space of above 1.5m in the front ·... - Page 6 3. Please do not move the charging base arbitrarily and keep it out of direct sunlight. Note · If the charging base is relocated, the host may fail in positioning and lose the map. When restarted, the host will rebuild and memorise the map and the rebuilt map may lose cleaning information of forbidden areas and other areas.
-
Page 7: Start Cleaning
6. Start Cleaning After the machine gets started, short press key on the host or start cleaning using mobile APP (press any button to pause when in use). Note · The sweeping robot cannot be used to remove liquids. · If the battery level is less than 20%, the machine cannot work. Please charge it. ·... -
Page 8: Install The Application
Install the Application Download the “Kogan Smarter Home” app from the Play Store (Android) or App Store (iOS). Register If you do not have a Kogan Smarter Home account, register or sign in with a verification code sent by SMS. To register 1. - Page 9 Add Device Through Network 1. Click on "+" to add equipment → choose Small Home Appliance → Robot Vacuum → APmode 2. Press " ON" and "Recharge" on robot for 3 seconds till the indicator light turns purple and slowly blinks. 3.
-
Page 10: Google Home Control
5. After successfully configuring the devices, the device will be shown on the home page. Tap to enter its control page. Note · When device is online, it can be controlled. · When device is offline, it displays “Offline” and cannot be remotely powered on. Google Home Control Note SmarterHome device. -
Page 11: Alexa
6. Click “Done” and then it will give you a list of commands available. 7. When successfully linked, you will see it on your “Home Control” screen at the bottom of the app screen. You can now control your Kogan SmarterHome devices through Google Home Alexa Note device. -
Page 12: Operation
3. Log into your SmarterHome account with your email address or mobile number. 4. Select “Discover Devices” and the app will begin searching. 5. When successfully linked, you will see a list of connected Kogan SmarterHome devices. You can now control your Kogan SmarterHome devices through Alexa with your voice. - Page 13 Button Function Sweep/ON and OFF: · Short press to start Sweep/Pause. · Long press for 3 seconds to ON/OFF. · Long press for 15 seconds for forced shutdown under abnormal circumstances. Recharging/Local cleaning: · Short press to Recharge/Pause. · Long press to start local cleaning. Indicator light: ·...
-
Page 14: Cleaning Mode
Note: · The cleaning robot cannot be used to remove liquids. · If the battery level is less than 20%, the machine cannot work. Please charge it. · The machine will return to the charging base automatically if the battery level is less than 20% when in use and will be powered off and start cleaning automatically after the battery level reaches 80%. - Page 15 Local cleaning If the machine is uncontrollable by APP, move it to the required area manfully, long press key for 3 seconds and the machine will sweep the floor twice within 1.8mx1.8m. 1.8m User-defined area cleaning Set size and position of one or more areas to be swept using mobile APP. The host will sweep the floor according to settings.
-
Page 16: Cleaning & Care
DND mode The host will neither sweep the floor nor issue a voice automatically under DND mode. You can use APP to switch DND mode. Cleaning mode Silent mode, auto mode and strength mode can be selected using mobile APP (auto mode by default) Cleaning &... - Page 17 Side Brush (Cleaned Monthly) 1. Turn over the machine and pull out the side brush upwards. 2. Remove hair, dirt and reassemble the side brush. 3. Make the left side brush (L) and the right side brush (R) corresponding to L and R on the bottom casing, press L and R to reinstall them.
- Page 18 Filter Screen Cleaning (Cleaned Monthly) 1. After the machine is used for a long time, remove filter gauze, filter sponge and HEPA filter screen. 2. Wash filter gauze, filter sponge, HEPA filter screen and dust box using tap water. 3. Shake off water drops and dry filter screen and dust box in the air for future use. 4.
- Page 19 2. Clean duster cloth and dry water tank and duster cloth in the air for future use. Sensor (Clean it Monthly) Wipe sensors of the machine using soft dry cloth, including: 1. Wall sensor is located on the right of the host. 2.
- Page 20 Laser distance sensor Radar avoidance sensor Infrared avoidance sensor Recharging sensor (Fig 2) Signal transmission area Charging shrapnel (Fig 3) Battery · The host is furnished with high-performance lithium-ion batteries. To maintain battery performance, please keep the host charged for daily use. ·...
-
Page 21: Specifications
Specifications Machine Overall dimension 3 5 0 X 3 5 0 X 1 0 0 m m Product weight 3 . 4 k g Battery 5200mAh lithium battery Rated voltage 1 4 . 4 V Rated power 3 0 W Machine Overall dimension 1 6 0 X 1 4 3 X 8 0 m m... -
Page 22: Troubleshooting
Troubleshooting Problem Solution · In case of a low battery level, please place the machine on the charging base and align it at the electrode plate, the machine will be started automatically (if the machine is completely The machine cannot be started powered off, it can be started automatically after charged for a while) ·... -
Page 23: In The Box
Water tank x1 Duster cloth x1 Dusting brush x1 Right side brush x2 HEPA filter screen x1 Charging base x1 Adapter x1 User manual is subject to change without notice. For the latest version of your user manual, please visit https://www.kogan.com/usermanuals/...
