- Page 1 Product name: MACH4 Model name: X70 AEE UNMANNED AIRCRAFT SYSTEM Professional Leading Product Name: MACH4 Y12 Model Name: Y12 USER'S MANUAL Please read this manual carefully before use and keep it properly for reference.
-
Page 2: Table Of Contents
CONTENTS 1. Impo rt ant notes ................................1 2. Product introduction ..............................1 3. Safety precautions ..............................1 4. Power ................................... 4.1 Remote control ..............................2 4.1.1 Lower power alarm of the remote control .... - Page 3 6.3.4 Display of image transmission information ...................17 6.3.5 Map settings ............................1 7 6.3.6 Firmw are upgrade ..........................18 6.3.7 Version information ..........................18 6.3.8 Map display and route function ......................19 7.
-
Page 4: Impo Rt Ant Notes
Other force majeure, including earthquakes, tsunamis, lightning strikes, hail, etc. Product introduction Thank you for choosing the AEE unmanned aircraft system product. This product is a small integrated four-rotor multi-function drone that can take off and land vertically. It adopts the world’s... -
Page 5: Power
Ensure that the drone is the center of the circle when taking off and landing, and there are no moving people or obstacles within a radius of 10 meters. When operating this AEE unmanned aircraft system product, the drone should only be allowed to fly in a safe area away from the crowd, and it is important to pay attention to your own safety and people around. -
Page 6: Charging Of The Remote Control
AEE Unmanned Aircraft System Professional Leading Note: In the state of second-level low power, the aircraft will enter the protection mode, and will slowly descend to the ground vertically at the current position. At this time, the attitude and altitude of the aircraft can still be controlled by the remote control, but two points need to be noted: ①... -
Page 7: Power Battery Of The Aircraft
AEE Unmanned Aircraft System Professional Leading Battery level of Y12 remote control Status light display (blue light) Four status lights are on Power ≥75% 50% ≤ Power <75% Three status lights are on 25%≤ Power＜50% Two status lights are on Power＜25%... - Page 8 AEE Unmanned Aircraft System Professional Leading Steps Illustration Description Step 1 Connect the power cord of "380W power"; Insert the power adapter cable into the "DC-24v" interface of the 380w Step 2 power, and the other end into the "DCINPUT" interface corresponding to the charger;...
-
Page 9: Parameter Setting Of The Power Battery Charger Of The Aircraft
Aircraft The AEE unmanned aircraft system integrates flight control software, digital radio, HD image transmission, control joystick, and task control buttons to facilitate easy viewing of flight data and real-time images during flight, and the remote control physical button, switch, joystick or GS software enable the drone to perform various real-time route monitoring and mission control such as fixed-point hovering, route flight, and automatic return. -

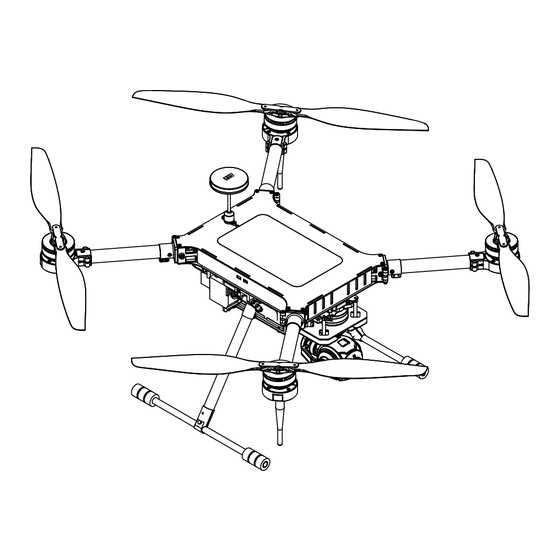

Page 10: Illustration Of The Drone Parts
A A EE Unmanned Aircraft System Professional Leading Illustration of the drone parts 【1】 Motor 【2】Gimbal 【3】Positive propeller 【4】Foldable arm L 【5】Foldable arm R 【6】Power switch 【7】Landing gear 【8】Airborne camera 【9】Counter propeller 【10】Foldable arm R 【11】Foldable arm L 【12】Battery pluggable switch 【13】GPS 【14】Antenna 【15】Battery... -
Page 11: Folding & Unfolding Of The Drone Arm
AEE Unmanned Aircraft System Professional Leading Folding & unfolding of the drone arm Press and hold the arm button to unfold the foldable arm, then release the button when the foldable arm matches the fixed arm. Push the foldable arm left and right to make sure that the arm is locked. Conversely, press and hold the arm button to fold up the foldable arm. -
Page 12: Installation Of Airborne Camera
A A EE Unmanned Aircraft System Professional Leading Installation of airborne camera Align the two pins (shown in red) of the gimbal with the clamping holder (shown in red) of the gimbal and insert them into it, as shown below: Align the PCB contact of the gimbal with the signal pin of the quick release clamp, push the hanging plate ２．... -
Page 13: Installation Of The Drone Power Battery
AEE Unmanned Aircraft System Professional Leading Installation of the drone power battery Let the battery interface face toward the battery holder: Insert one end of the battery into the battery holder, and press the other end upward. When a "click" sound is heard, gently pull the battery outward to confirm if the battery is loose: Insert the power cord connector under the fuselage into the battery: Note: Make sure the drone power switch is in a off (OFF) state when installing the battery. -
Page 14: Remote Control
Professional Leading Remote control The remote control is specially developed to cooperate with the AEE unmanned aircraft system, so as to facilitate the control of drone flight. The remote control can independently control the flight of the drone and simultaneously display the flight status and the real-time image of the airborne camera. - Page 15 AEE Unmanned Aircraft System Professional Leading Category Type Qty. Brief description High speed：head free mode Medium Altitude hold/ Three- positioning flight speed speed: Fixed point mode switching switch toggle type Low speed: Altitude hold mode Universal Left joystick Control the throttle and the heading...
-
Page 16: Preparation Of The Remote Control
A A EE Unmanned Aircraft System Professional Leading Preparation of the remote control Antenna installation ... -
Page 17: Installation And Removal Of Lens Hood
A A EE Unmanned Aircraft System Professional Leading Installation and removal of lens hood Align the position indicated by the red arrow and press the lens hood on the remote control. ... -
Page 18: Parameter Setting Of The Remote Control
AEE Unmanned Aircraft System Professional Leading Parameter setting of the remote control Altitude hold mode Huizhou Camera parameters: Under the parameter setting options, relevant parameters of the camera, such as camera resolution, loop coverage, time display, etc can be set. As shown below:... -
Page 19: Drone Settings
AEE Unmanned Aircraft System Professional Leading Drone settings Under the functional parameter options, relevant parameters of the drone, such as: one button take-off altitude, first-level and second-level low-power alarm values can be set. As shown below: Altitude hold mode Camera parameters... -
Page 20: Display Of Image Transmission Information
AEE Unmanned Aircraft System Professional Leading Display of image transmission information Under the functional parameter option, information of relevant image transmission, such as transmission bandwidth, transmission encryption, video resolution, module temperature and power can be viewed. As shown below: Altitude hold mode...
