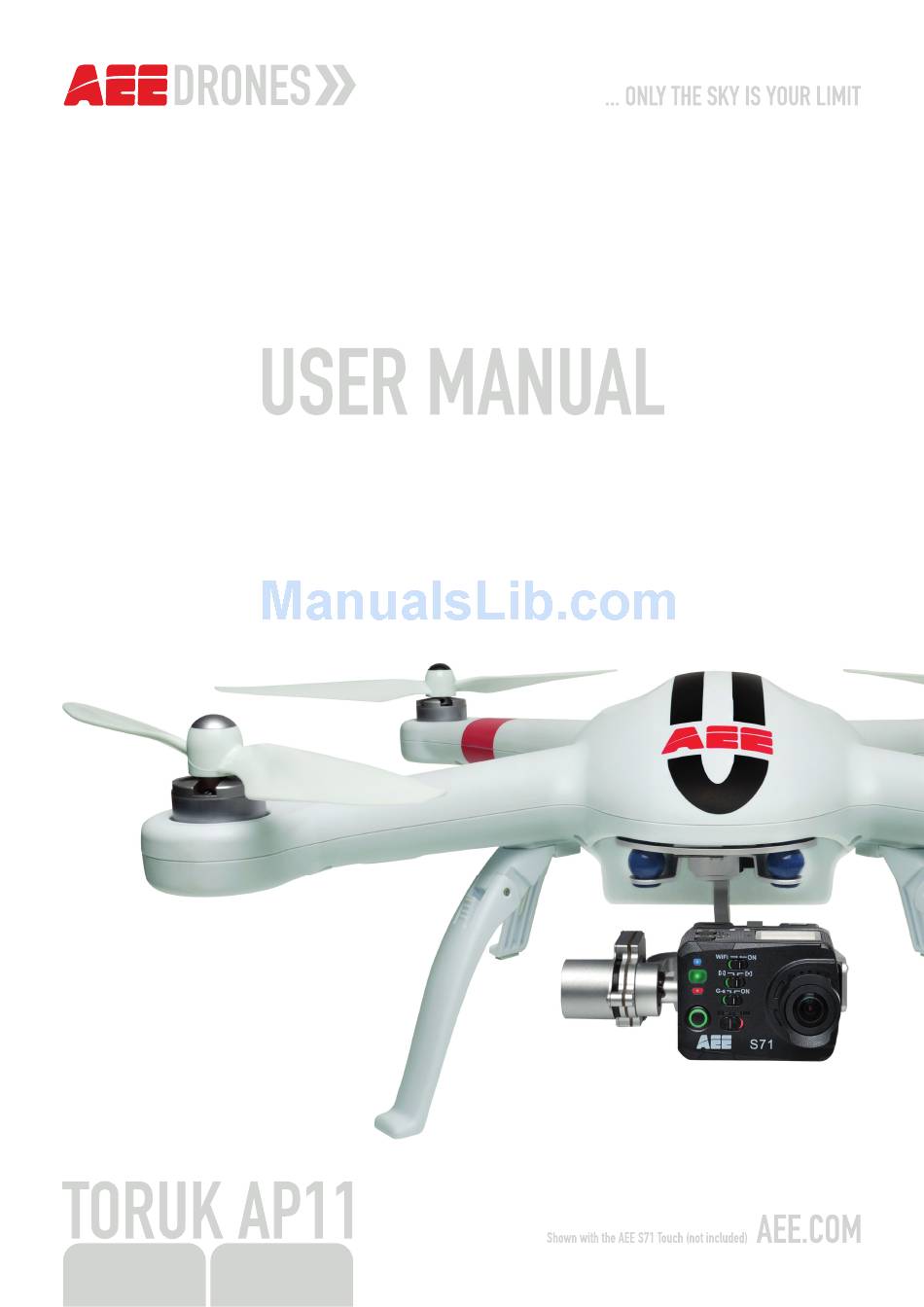

AEE TORUK AP11 User Manual
  1. Manuals
  2. Brands
  3. AEE Manuals
  4. Quadcopters
  5. TORUK AP11
  6. User manual

AEE TORUK AP11 User Manual

Hide thumbs Also See for TORUK AP11:
Table of Contents

Advertisement

Quick Links

See also: Manual

Advertisement

Table of Contents
loading

Related Manuals for AEE TORUK AP11

Summary of Contents for AEE TORUK AP11

  • Page 2: Table Of Contents

    6.4.1 Operating Steps:.............................................17 6.4.2 Follow-me Video Recording: ..........................................17 6.4.3 Working Conditions: ............................................17 6.4.4 How to Enter Follow me Mode ........................................17 7Downloading and Installing AEE AP+ App .......................................18 8 Connecting the Camera ............................................18 9 Using AEE AP+ App ............................................18 1.Main Menu ................................................19 2.Main Shooting Interface ............................................19...

  • Page 3: Conventions

    Quadcopter User Manual V1.0 2015.8 Please read this "User Manual "carefully before using Quadcopter. Conventions Except when specifically stated, all Quadcopter features described in this manual are for Quadcopter Operating Modes. Warning : (1) When installing the propellers, rotate the propellers strictly in the lock direction specified by the mark, and DO NOT apply too much force in order to avoid possible damage.

  • Page 4: Overview

    The quadcopter is a high-tech electronic with integrated flight and camera control. When install camera, you can use mobile devices to control the camera through the App and achieve real-time video images. The quadcopter will help you capture clear an stable aerial videos and photos. Note:The camera operation as mentioned below, is only applied for the operation of the AEE S61. 1 Kit Contents Before using, please check all items inside the kit box.
  • Page 5 For Wi-Fi Repeater Screws 1 pcs (optional) Lanyard 1 pcs Remote control Lanyard Including 4 Propellers Guards Propeller Guards 1 set and 8 screws. Containing User Manual, etc.. 1 pcs (optional) 1 pcs Inserted in Quadcopter Micro SD Micro SD card...

  • Page 6: Quadcopter Introduction

    2 Quadcopter Introduction Adopting high-standard integrated design . If it is equiped with professional airborne photography equipment and a Wi-Fi Repeater, Quadcopter provides excellent flight and aerial photography for outdoor or large indoor spaces. You only need to follow some simple installation steps before flight and taking aerial pictures. You can control the Quadcopter through the Remote control, and can view flight video through mobile devices.

  • Page 7: Quadcopter Battery Introduction

    1.1 Quadcopter Battery Introduction The quadcopter battery (Figure 3) is a specifically designed battery for Quadcopter with charge and discharge management functions, with voltage of 11.1V. Only use the dedicated quadcopter battery charger (Figure 4) provided by AEE, for charging. Figure 3 Figure 4 Short press the Battery Level Check button (Figure 5).

  • Page 8: Quadcopter Battery Installation

    1.3 Quadcopter Battery Installation Push the battery into the battery compartment in the correct direction (Figure 7). After the battery is properly installed, a “click” sound will be heard, indicating that the battery has been fastened. An incorrectly installed battery may cause ●...

  • Page 9: Flight Control System

    2.2 Flight Control System Quadcopter is equipped with AEE flight control system to provide incredible ease of use and stability. In addition to supporting basic flight maneuvers such as climb, descend, roll and pitch, it also supports failsafe protection, battery level alarms and other functions.

  • Page 10: Remove The Buckle And Install The Camera

    1. AEE S50/S51/S60/S61/S71/S70/OM51S/OM60S/OR60S/OR71S/S40; or 2. Gopro G3/G4 camera. Note:The App mentioned in this paper applies only to the AEE S61 camera mounted on the quadcopter. When using other cameras, it is required to use the other APP for the camera itself.

  • Page 11: Install The Camera

    Install the camera onto the quadcopter and fix the clip to the camera reliably as shown in Fig. 9b to prevent the camera coming off.Then connect camera and the gimbal with USB cable (only for AEE S61). Diagram of installation of PTZ USB cable Figure 9b 2.5 Airborne Camera...

  • Page 12: Preparing Propellers

    Indicators on the remote control Photo shooting & video Power indicator Status indicator(tri-color light) recording indicator Red light ● /green light ● /blue Red light ● Green light ● Function status light ● Remaining ON Power on Remaining ON Red light remains ON Abnormal condition, as signal loss etc.

  • Page 13: Disassembling Propellers

    (2) Ensure that all propellers are in good condition before each flight. Replace aged, chipped or broken propellers. (3) To avoid injury, stand clear of and do not touch propellers or motors when they are spinning. (4) Only use original AEE propellers for a better and safer flight experience. Warning : (1) When installing the propellers, rotate the propellers strictly in the lock direction specified by the mark, and DO NOT apply too much force in order to avoid possible damage.

  • Page 14: Powering On The Remote Control

    Description Specification Definition Antenna Remote control signal transmission Repeater For extending Wi-Fi signal reception range For attaching mobile devices Mobile device holder Short press it once to open the hook on the quadcopter; press it again to close the hook (Remark: The hook is an...

  • Page 15: Operating The Remote Control

    For maximum range and reliability, Remote control antenna should point skyward with no obstructions between it and the receiver antenna on Quadcopter. Obstructions may cause you to lose control of the quadcopter. Ensure mobile device holder and Repeater do not block the antenna.

  • Page 16: Frequency Pairing Between Remote Control And Receiver

    The S2 switch is used for calibration of the joystick. Turn S2 to position 3, then turn on the remote control, and at this time the status indicator starts blinking (indicating joysticks calibration starts). Turn the left and right...

  • Page 17: Power Indicator

    Blue light blinks slowly (3s OFF,0.3 ON) Wi-Fi Repeater is successfully paired 5.1.2 Power Indicator Indicates Repeater’s power supply status. Power Indicator Description Red light is ON Repeater power supply is normal or charging completes Red light blinks Repeater is charging, or Repeater power is running out, please charge as soon as possible 5.1.3 Pairing Button...

  • Page 18: Indicators On The Tracker

    [ 2 ] Power indicator Power indicator is red [ 3 ] Statu indicator Status indicator is green [ 4 ] Contacts Charging contacts. ※Note: 1. Code pairing process: turn on the tracker and trigger its code pairing function; turn on the quadcopter, and its built-in 5.8GHz module will auto proceed with the code pairing process.

  • Page 19: 7Downloading And Installing Aee Ap+ App

    Figure 17 9 Using AEE AP+ App (Only for AEE S61 camera) AEE AP+ is mainly used for remote control of the camera. It can achieve photo shooting, video recording and camera parameter setting, as well as display of flight parameters.

  • Page 20: Main Menu

    If Wi-Fi connection is already successful, click it to access the main interface for shooting Click it to access the album interface Album Click it to access the APP setting interface Settings Connect to AEE‘s official website Website Connection successful Connection failed Notice: When using the camera interface and the album, the mobile device should be first connected to the Wi-Fi network of the quadcopter •If the mobile device has an incoming call during flight, the preview image on the mobile device will be covered by call interface.

  • Page 21: Flight

    (4) Ensure the Quadcopter, Remote control and other equipment are working properly after powering on. (5) Check if motors start properly after the quadcopter is switched on. At this time, disassembling propellers is recommended for safety. (6) Check if the AEE AP+ App is properly connected to the camera. 1 Compass Calibration Compass calibration is required before first time use otherwise the system may not work properly, affecting flight safety.

  • Page 22: When To Recalibrate

    After the quadcopter powers Toggle the joysticks to the Rotate Quadcopter 360° Rotate Quadcopter 360° Rotate Quadcopter vertically (Nose on(about 20 seconds). Swich S4 position as in the follow figure. horizontally vertically leftward)until green lights off, Put for more than 5 times between...

  • Page 23: Basic Flight

    (5) Push the left joystick up slowly for a smooth take-off. Please refer to Remote control operation instructions for detailed operation procedures. (6) Use the AEE App to capture photos and record videos, and enjoy the flight. Please refer to Using AEE AP+ App for more details.

  • Page 24: Low Battery Level Alarm Function

    5 Low Battery Level Alarm Function When quadcopter battery power is low, you must land as soon as possible, or else the quadcopter may lose power completely and crash, damaging the quadcopter or creating a dangerous situation. In order to prevent danger caused by low battery, Quadcopter defines Level 1 low voltage alarm (battery level under 50%) and Level 2 low voltage alarm (battery level under 20%), and sends alarms with indicators on the quadcopter and on the Remote control .

  • Page 25: Upgrade Steps

    Browse file to be burnt Language selection Program Name Current Version Choose Version Update The interface of the software upgrade interface on PC is very simple. It is mainly divided into two areas: main control program burning area, PTZ program burning area.
  • Page 26 aee.com...

  • Page 27: Appendix

    Climb: 6 m/s (19.69ft/s); Descend: 4 m/s (13.12ft/s) Maximum Flight Speed 20m/s(65.62ft/s)(Not recommended) Diagonal Length 450mm / 1.48ft Flight Time 20min Camera(Only for AEE S61 camera) Sensor Size 1 / 2.3 Effective Pixels 16 Megapixels (MP) Resolution 4608x3456 HD Video Recording...
  • Page 28 3.2.1 Situations requiring recalibration 1) The accelerometer data are abnormal; the four arm lights blink fast. 2) The mechanical structure of the quadcopter changes. 3) The drift distance is significant during flight. 3.2.2 Calibration steps NULL Place the quadcopter on a...

  • Page 29: Limited Warranty

    AEE assumes no liability for any accident, injury, death, loss, or other claim related to or resulting from the use of this product. In no event shall AEE be liable for incidental or consequential damages relating to or resulting from the use of this product or any of its parts.
