AEE AP11 Manual

AP11
Disclaimer
Please read this disclaimer carefully before using the product of Quadcopter. This product is not suitable for people under the age of 18. By using this
product, you hereby agree to this disclaimer and signify that you have read them fully. You agree that you are responsible for your own conduct and
content while using this product, and for any consequences there of. You agree to use this product only for purposes that are proper and in accordance
with the terms and any applicable or guidelines AEE may make available.
1. Shenzhen AEE Technology Co., Ltd. reserves the right of final interpretation of this disclaimer.
2. Any part of this disclaimer is subject to change without prior notice.
3. This disclaimer is available in multiple languages. In case of any discrepancy, the Chinese version shall prevail.
4.For more detailed or latest product information, please visit www.aee.com.
Taking off and Landing(Outdoors)
Taking off
1) Place Quadcopter (with full power battery) on a flat and open ground,
and ensure Tail Indicator faces toward you.
2. Turn on the remote control, repeater and camera and enable the Wi-Fi
function of the camera in sequence; last, turn on the aircraft (Do Not turn on
the aircraft before the Wi-Fi function of the camera is enabled);
3) Be sure the Remote control is set exactly as the figure below.
4) Starting motors: toggle the left joystick to left bottom corner and toggle right joystick to right bottom corner at the mean time to start motors. Once
the motors start please release the joysticks immediately.
5) Push the left joystick slowly, then Quadcopter take off. Please refer AEE Quadcopter User Manual for more details.
Note: The motors can not be started until GPS signal is ready (Tail Indicator (green) remains on).
1. Upon startup, the airborne camera and the repeater will pair with each other. Please wait for about 30S to ensure that pairing is completed, so
that the airborne camera can record videos normally.
2. After the aircraft is powered on, the aircraft and the PTZ will start self-test. Do not shake the aircraft or the PTZ at this moment; otherwise, the
aircraft and the PTZ will fail the self-test.
(The PTZ can be used only when the camera is installed; otherwise the PTZ may be damaged)
3. Before installing the camera onto the aircraft, it is suggested that the auto standby function of the camera should be disabled.
4. When the aircraft complete searching for GPS satellites, the tail light (green) will remain on. During flight, please do not turn the joysticks of the
remote control to a lower toe-out pattern, which will stop the motors.
Landing：
1) Slowly pull the left joystick to lower Quadcopter until it touches the ground(only on flat and open ground).
2) After landing, pull the left joystick to the lowest position and hold for more than 3 seconds until the motors stop.
3) Power off Quadcopter by sliding the switch to OFF.
4) Remove the battery.
5) Power off Remote control and Wi-Fi Repeater.
Important:
1) Control the flight height under your control during your first flight.
2) Do not stop the motors during flight, or it will cause the Quadcopter to drop without control.
AP11
S
D
GPS
NRM
S1 S2 S3 S4
E F M
S1: S2: S3: S4: GPS

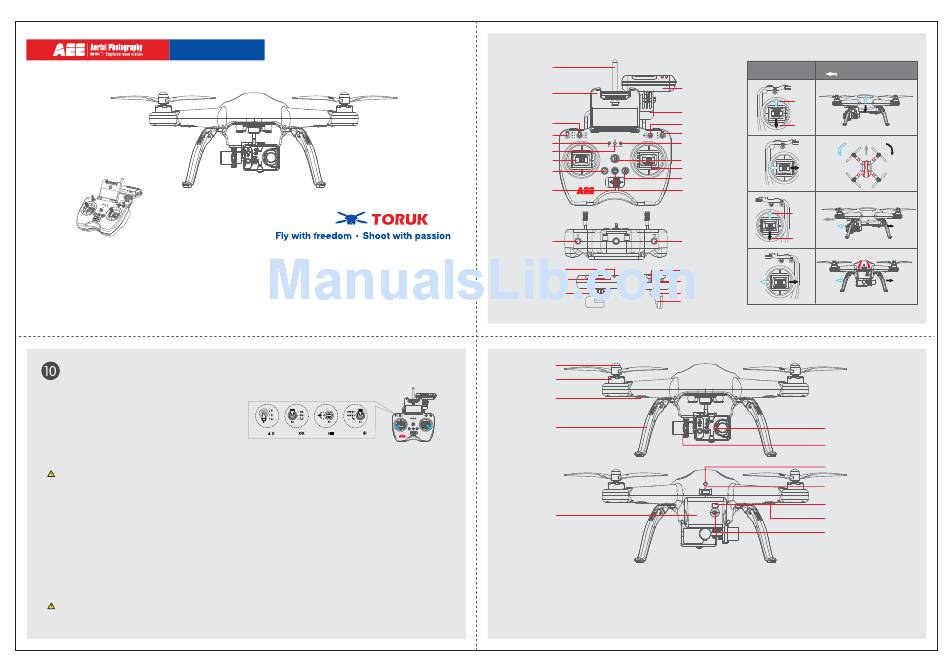

Remote control and Wi-Fi Repeater Description
Antenna
Smartphone Holder
Calibration switch S2
GPS
Speed control switch S1
NRM
F M
S1 S2 S3 S4
Power Indicator
Status Indicator
Left Joystick
Airborne Video
Recording Button
Airborne
Shutter Button
Return button
Power Indicator
Wi-Fi Indicator
Lock Screw
[ 1 ]
[ 2 ]
[ 3 ]
[ 4 ]
[ 7 ]
[ 1 ] Propeller [ 2 ] Motor
[ 5 ] Camera [ 6 ] 3-Axials Gimbal
[ 9 ] Power Switch [ 10 ] Rear Indicator
[ 12 ] Battery Level Check Button
Remote control Quadcopter Direction
(U.S. Mode) (" " indicates nose direction)
Wi-Fi Repeater
UP
UP
Repeater Base
DOWN
Angle control switch S3 DOWN
Flight mode switch S4
Photo Shooting &
TURN
Video Recording Indicator
LEFT
Strap Hole
Right Joystick TURN TURN
LEFT RIGHT
Video Stop Button
Remote Control
Power Switch
FORWARD
FORWARD
BACK
Hook open/close button
Power Switch
Charging Port LEFT
LEFT RIGHT
(mini USB port)
Pairing Button
Repeater Base
Note: The Remote Control is set to U.S. mode by default.
[ 5 ]
[ 6 ]
[ 8 ]
[ 9 ]
[11]
[10]
[12]
[ 3 ] Front Indicator [ 4 ] Landing Gear
[ 7 ] Quadcopter Battery [ 8 ] Tail Indicator
[ 11 ] Battery Level LCD Segment Display
TURN
RIGHT
BACK
RIGHT
