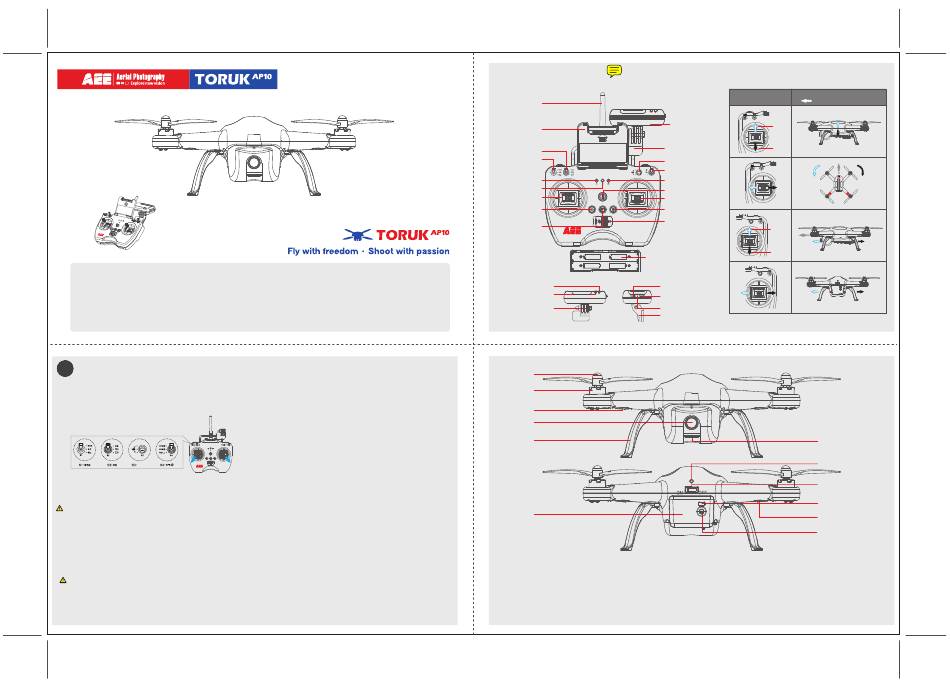

AEE Toruk AP10 Quick Start Manual

Disclaimer
Please read this disclaimer carefully before using the product of Quadcopter. This product is not suitable for people under the age of 18. By using this
product, you hereby agree to this disclaimer and signify that you have read them fully. You agree that you are responsible for your own conduct and
content while using this product, and for any consequences there of. You agree to use this product only for purposes that are proper and in accordance
with the terms and any applicable or guidelines AEE may make available.
1. Any part of this disclaimer is subject to change without prior notice; refer to HYPERLINK www.aee.com for the latest version.
2. AEE Technology reserves the right of final interpretation of this disclaimer.
3. This disclaimer is made in various language versions; in the event of divergence among different versions, Chinese version shall prevail.
10
Taking off and Landing(Outdoors)
Taking off
1) Place Quadcopter (with full power battery) on a flat and open ground, and ensure Tail Indicator faces toward you.
2) Power on the Remote control,Wi-Fi Repeater and Quadcopter in sequence.
3) Be sure the Remote control is set exactly as the figure below.
GPS
NRM
NULL
S1 S2 S3 S4
middle
4) Starting motors: toggle the left joysticks to left bottom corner and toggle right joystick to right bottom corner at the mean time to start motors. Once the motors
start please release the joysticks immediately.
5) Push the left joystick slowly, then Quadcopter take off. Please refer AEE Quadcopter User Manual for more details.
Note: The motors can not be started until GPS signal is ready(Tail Indicator will alternate between fast blinking and on).
Landing：
1) Slowly pull the left joystick to lower Quadcopter until it touches the ground(only on flat and open ground).
2) After landing, pull the left joystick to the lowest position and hold for more than 3 seconds until the motors stop.
3) Power off Quadcopter by sliding the switch to OFF.
4) Remove the battery.
5) Power off Remote control and Wi-Fi Repeater.
Important:
1) Control the flight height under your control during your first flight.
2) Do not stop the motors during flight, or it will cause the Quadcopter to drop without control.
Remote control and Wi-Fi Repeater Description
Antenna
Wi-Fi Repeater
Smartphone Holder
Repeater Base
3-position Switch S2
3-position Switch S1
Camera Angle Control S3
3-position Switch S4
GPS
Remote control
NRM
NULL
S1 S2 S3 S4
Power Indicator
Video Indicator
Capture Indicator
Strap Hole
Left Joystick
Right Joystick
Airborne Video Video Stop Button
Recording Button
Remote control Power
Airborne
Switch
Shutter Button
Battery
Compartment
Power Indicator
Power Switch
Wi-Fi Indicator
Charging Port
(mini USB port)
Lock Screw
Pairing Button
Repeater Base
[ 1 ]
[ 2 ]
[ 3 ]
[ 4 ]
[ 5 ]
[ 7 ]
[ 1 ] Propeller [ 2 ] Motor
[ 5 ] Landing Gear [ 6 ] Micro SD card
[ 9 ] Power switch [ 10 ] Rear Indicator
[ 12 ] Battery Level Check button
Remote control Quadcopter Direction
(U.S. Mode) (" " indicates nose direction)
UP
UP
DOWN
DOWN
TURN
TURN
LEFT
RIGHT
TURN TURN
LEFT
RIGHT
FORWARD
FORWARD BACK
BACK
RIGHT
LEFT
LEFT RIGHT
Note: The Remote control is set to U.S. mode by default.
[ 6 ]
[ 8 ]
[ 9 ]
[11]
[10]
[12]
[ 3 ] Front Indicator [ 4 ] Camera
[ 7 ] Quadcopter Battery [ 8 ] Tail Indicator
[ 11 ] Battery Level LCD Segment Display
