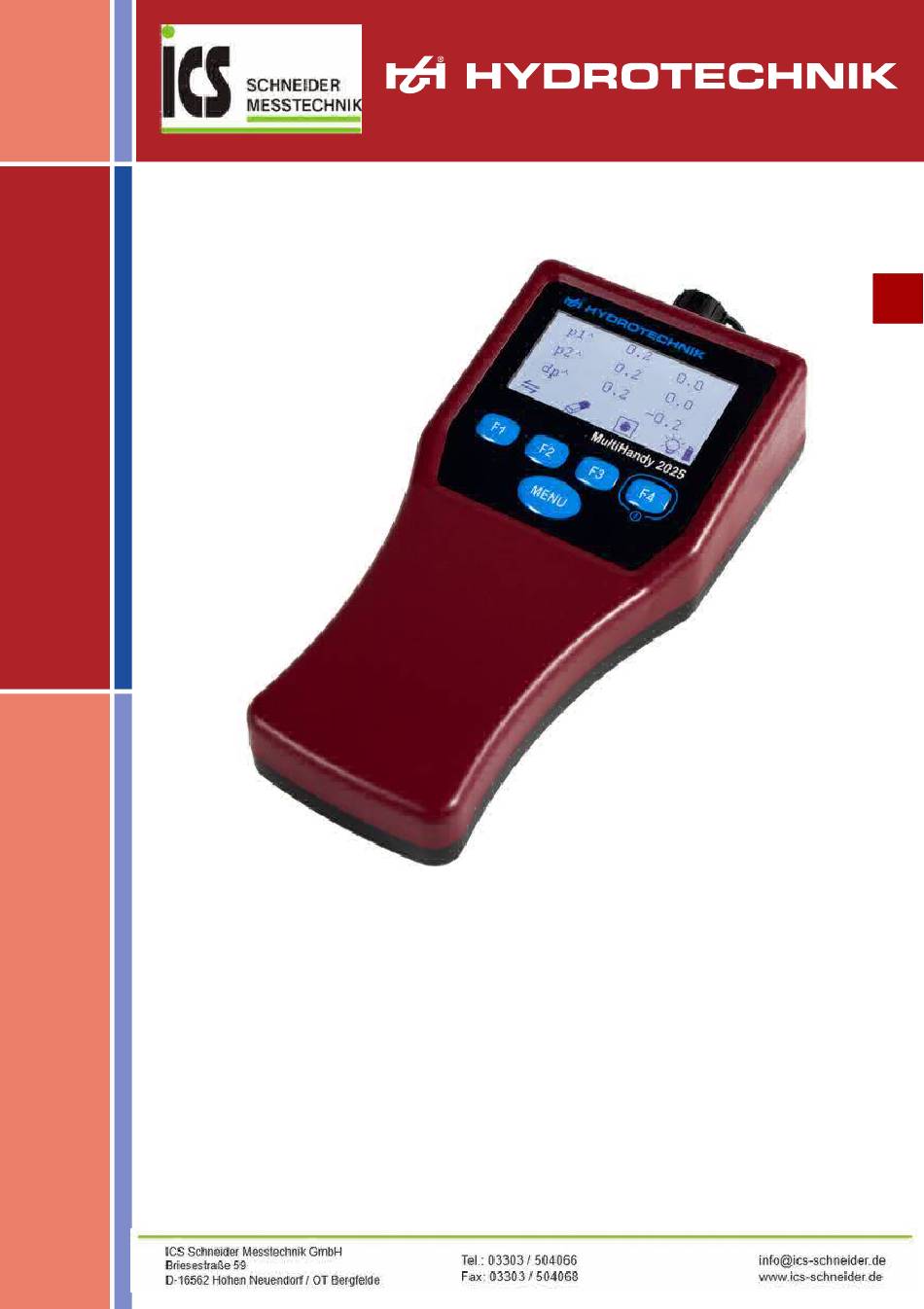

- Page 1 MultiHandy 2025 Quick Guide Version 1.0 EN Firmware-Version 1.0 TKZ L3160-00-78.00EN...
- Page 2 1 Description of the measuring instrument 1.2 Measuring instrument Note This Quick Guide is a supplement to the Operating Instructions and is not a replacement for these. You can obtain the Operating Instructions via the • manufacturer's website (HYDROTECHNIK.COM) or the HYDROcenter software.
- Page 3 1 Description of the measuring instrument 1.3 Connections 1.5 Keys, icons and functions Switches instrument on. Opens main menu. Selects marked entry. Switches display illumination on/off. Switches instrument off (press for 2 seconds). Changes view: - Current measurement values - Min./max. Measurement values Measurement channel 2 USB interface Sets zero point for all displayed chan-...
-
Page 4: Basic Settings
2 Start-up 2 START-UP to select your desired units of measure- [F1] ment. 2.1 Charging measuring instrument Save your entry by pressing [F4] The batteries of the measuring instrument must be charged before it is switched on for the first time. How to charge the measuring instrument Remove the battery protective strips from the bat- tery compartment. - Page 5 2 Start-up 2.3 Time and date Press to select [F1] Date to open the [MENU] DATE MENU How to set the time and date Set the date format and date: Press and use to select the •Use to select and press [MENU] [F1] Device...
- Page 6 3 HYDROcenter 3 HYDROCENTER How to connect your measuring instrument to HYDROcenter HYDROcenter is a program for Windows. Connect the USB cable to the USB interface of the HYDROcenter is your centre for all instruments and measuring instrument. software from HYDROTECHNIK. Connect the other end of the USB cable to your Install HYDROcenter to receive automatic updates for PC or notebook.
- Page 7 4 Measurement 4 MEASUREMENT Connect the MINIMESS direct connections of the ISDS sensors to the selected MINIMESS testing You can begin measurement immediately after start- points. ing up the measuring instrument. Switch the measuring instrument on by pressing [F4] If applicable, use to confirm the calibration [F4] 4.1 Measurement with ISDS sensors...
- Page 8 4 Measurement Min./max. Display Start the measurement series by pressing [F3] Pressing switches to min./max. display or back The display shows a progress bar on the right [F1] to the current measurement values. side. Press to display the current memory status. [F2] Maximum values Minimum values...
