Summary of Contents for Shure SLX4L

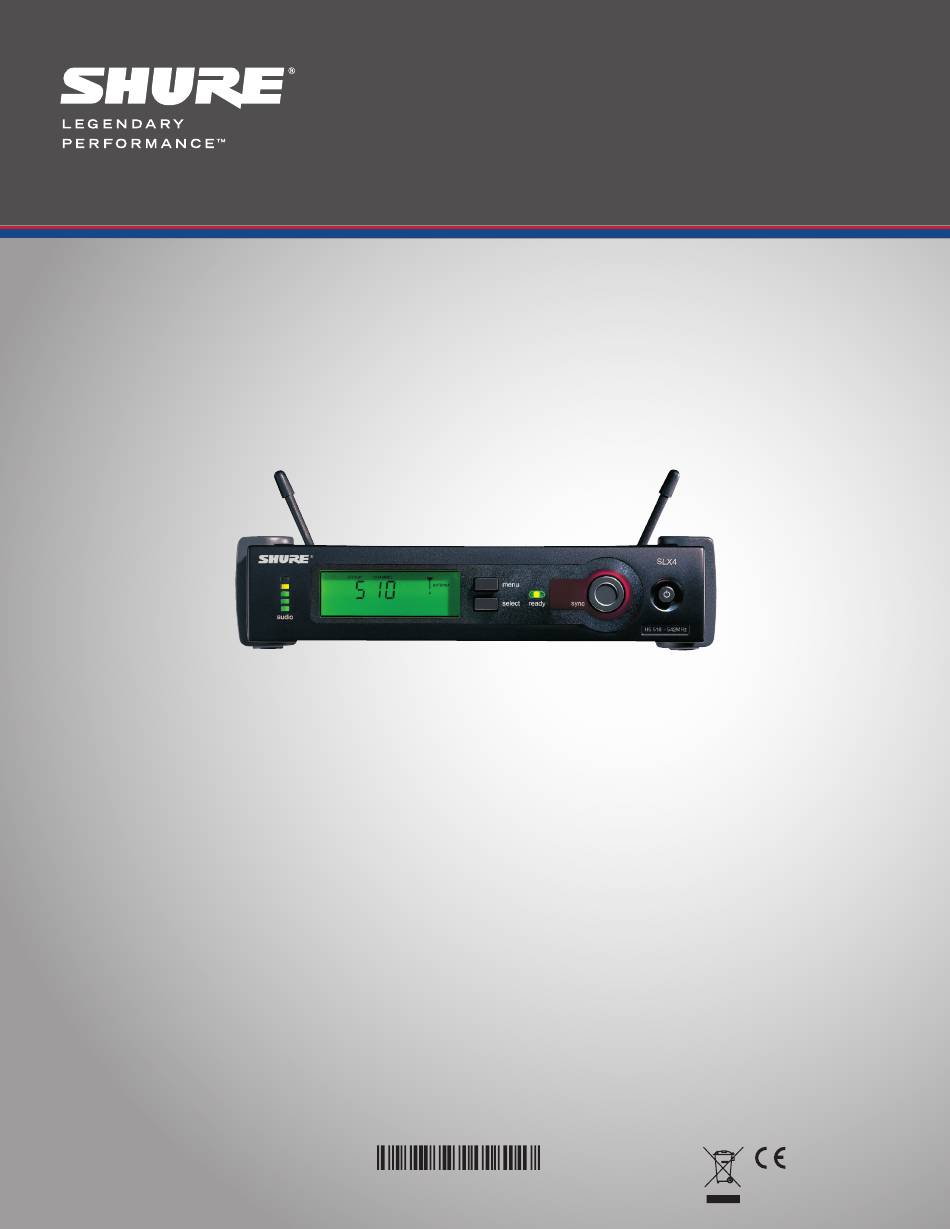

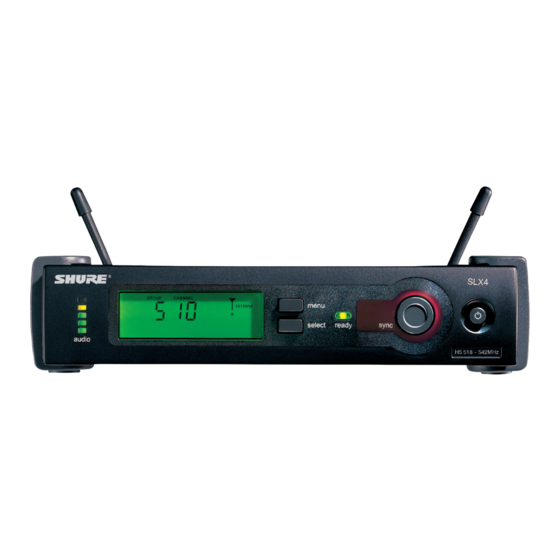

- Page 1 Wireless Systems SLX4L LOGIC WIRELESS RECEIVER FONCTIONNALITÉ LOGIQUE FUNCIONEs LóGICAs LOGIsChE FUNkTIONALITäT FUNzIONE LOGICA ロジッ ク機能 логической схемы 논리적 기능성 Funcionalidade lógica 逻辑功能 2012 Shure Incorporated Printed in U.S.A. 27A8903 (Rev. 3)
- Page 2 Modes The SLX4L ships in Normal mode. To switch between modes with the unit powered on, press and hold the Select button then lo g ic press the Power button. In Logic mode, the front panel LCD flashes .
- Page 3 LOGIC CONNECTION sPECIFICATIONs The logic capability of the SLX4L receiver provides two functions: Transmitter Mute Status indication (which can be used to signal and control other events) and Transmitter Battery status indication. The various logic functions and their applications are presented in the following pin diagram and descriptions: Pin 1: Transmitter Mute Status.
- Page 4 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
