Groen DEE/4-20 Series Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells
gas. This information shall be obtained by consulting your local gas
supplier. As a minimum, turn off the gas and call your gas company and
your authorized service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION

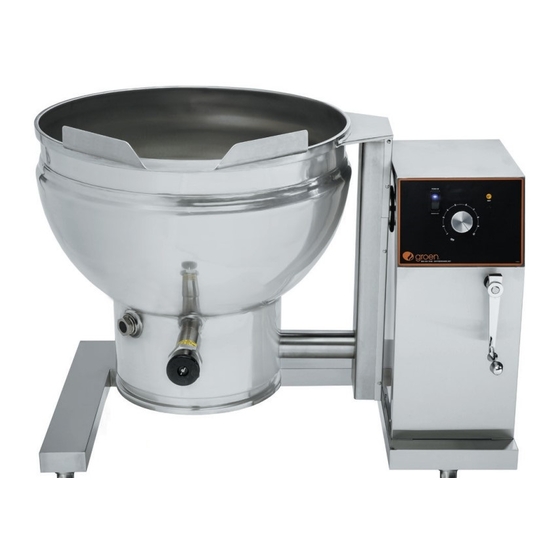

The DEE/4 is a floor-mounted, tilting, steam jacketed kettle with an electronically
controlled, self-contained, electrically-heated steam supply and appropriate con-
trols, mounted on a sturdy base. The kettle is available in 20, 40 or 60 gallon
capacities.
The body of the kettle is constructed of stainless steel, welded into one solid piece.
The kettle is furnished with a reinforced rim and a butterfly shaped pouring lip. It
has a steam jacket rated for working pressures up to 50 PSI. Kettle finish is 180
emery grit on the inside and bright semi-deluxe on the outside.
The kettle can be tilted with a hand crank to pour out its contents. Stainless steel
panels enclose the controls and the base. Four stainless steel, tubular legs support
the unit. Bullet feet on each of the legs can be adjusted to level the kettle.
A built-in steam generator, sized for the kettle capacity and heated by electric-
ity, delivers steam into the jacket. "Airless" operation of the steam jacket permits
uniform, efficient heating at temperatures as low as 150°F and as high as 298°F.
In addition to the electronic temperature control, the unit has a tilt cut-off switch,
low water cut-off, safety valve, and high-limit pressure switch as safety features. A
heating indicator light, pressure gauge, and sight glass are provided for monitoring
kettle operation.
This manual provides information for:
STEAM JACKETED KETTLE
MODELS DEE/4(T)-20/40/60(C,A,C2T™)
DOMESTIC
REFERENCES
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
A single electrical connection is required for installation. The unit may be ordered
for use with 208/240, 400 or 480 volt power. All kettles are wired for three-phase
operation. Single-phase units are also available.
Options available include:
1. 2" or 3" diameter tangent draw-off (product valve) (factory installed)
2. Lift-off, hinged and power-assist covers
3. Water fill faucets
4. Basket cooking system
5. Kettle brush kit
6. Gallon etch marks (factory installed)
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands
recommends referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications.
© 2019 Unified Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
PART NUMBER 174853, REV. E (04/19)
