Groen DEE/4 Series Operator's Manual

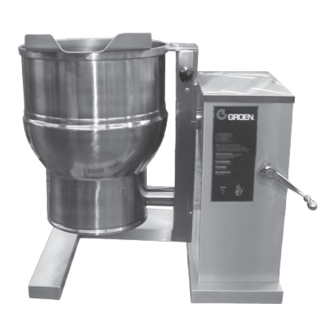

Steam jacketed kettle
Hide thumbs Also See for DEE/4 Series:
Table of Contents

Advertisement

Quick Links

OPERATOR MANUAL
OPERATOR MANUAL
Part Number 148783
Part Number 148783 Rev. E
MODEL:
DEE/4
Steam Jacketed Kettle
Self-Contained
Electrically heated
Floor mounted
Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
FOR YOUR SAFETY
OM-DEE/4
DOMESTIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEE/4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Groen DEE/4 Series

Summary of Contents for Groen DEE/4 Series

  • Page 1 OPERATOR MANUAL OPERATOR MANUAL OM-DEE/4 Part Number 148783 DOMESTIC Part Number 148783 Rev. E MODEL: DEE/4 Steam Jacketed Kettle Self-Contained Electrically heated Floor mounted Tilting THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.

  • Page 2: Important Operator Warnings

    OM-DEE/4 OM-DEE/4 IMPORTANT — READ FIRST — IMPORTANT CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL. WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL.
  • Page 3 OM-DEE/4 IMPORTANT — READ FIRST — IMPORTANT CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES. IMPORTANT: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID WARRANTIES.

  • Page 4: Table Of Contents

    OM-DEE/4 OM-DEE/4 Table of Contents OM-DEE/4 Table of Contents IMPORTANT OPERATOR WARNINGS ........2 REFERENCES .

  • Page 5: Equipment Description

    OM-DEE/4 OM-DEE/4 Equipment Description The Groen DEE/4 is a floor-mounted, tilting, A built-in steam generator, sized for the kettle steam jacketed kettle with a thermostatically capacity and heated by electricity, delivers steam controlled, self-contained, electrically-heated into the jacket. “Airless” operation of the steam...

  • Page 6: Inspection & Unpacking

    OM-DEE/4 OM-DEE/4 Pressure/Vacuum Gauge Safety Water Gauge Valve Glass REAR VIEW Optional equipment available with DEE/4 kettles: 3. Water fill faucets 4. TRI-BC basket cooking system 1. 2” or 3" diameter tangent draw-off (product 5. Powered agitators (TA/3 or INA/2) valve) 6.

  • Page 7: Installation

    OM-DEE/4 OM-DEE/4 Installation The Groen Kettle is provided with complete 5. The equipment is shipped ready for three internal wiring and is ready for immediate phase operation. Refer to the wiring diagram connection. Wiring diagrams are provided in this for single phase operation.

  • Page 8: Initial Start-Up

    6. Following “To Start Kettle” instructions in the ready for use. If the unit does not function as “Operation” section of this manual, begin described, contact your local Groen Certified heating the water at the highest thermostat Service Agency. setting. The heating indicator light should come on immediately, and heating should continue until the water boils.

  • Page 9: Operation

    OM-DEE/4 OM-DEE/4 Operation Thermostat Dial Indicator Light WARNING AVOID ALL DIRECT CONTACT WITH HOT Tilting Crank SURFACES. DIRECT SKIN CONTACT COULD RESULT IN SEVERE BURNS. AVOID ALL DIRECT CONTACT WITH HOT FOOD OR WATER IN THE KETTLE. DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
  • Page 10 OM-DEE/4 OM-DEE/4 c) Tilt cover to 45-60° angle to allow any hot condensate or product to roll off cover back into kettle. d) Remove cover, ensuring that any remaining hot condensate or product does not drip on operator, floor or work CAUTION surfaces.

  • Page 11: Sequence Of Operation

    OM-DEE/4 OM-DEE/4 Allow hot water to fully drain from WARNING product, before moving basket away AVOID ALL DIRECT CONTACT WITH HOT from the kettle. Do not rest baskets on FOOD OR WATER IN THE KETTLE. kettle rim or pouring lip. If baskets are DIRECT CONTACT COULD RESULT IN too heavy for individual to lift and safely SEVERE BURNS.

  • Page 12: Maintenance

    OM-DEE/4 OM-DEE/4 Maintenance NOTICE: Contact Groen or an authorized Groen representative when repairs are required. 1. Periodic Maintenance valve at least twice each month. Test the valve with the kettle operating at 15 psi (105 kPa), by holding the test lever for at least 5 seconds.
  • Page 13 At least twice a year, grease the two trunnion (1) Obtain water treatment compound and a bearings and worm gear. Groen recommends pH test kit from your authorized Groen the use of number two grade LGI lithium grease. (Groen Part No. 110324) parts distributor.

  • Page 14: Cleaning

    Clean the draw-off port and each valve agent. part with a bursh. Kettle brushes. Rinse the kettle and draw-off valve parts Groen Spray Degreaser (P/N 114801) or thoroughly with hot water, then drain equivalent. completely. Groen Delimer-Descaler (P/N 114800) or equivalent.

  • Page 15: Troubleshooting

    AND CORROSION. Troubleshooting Your Groen kettle is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. Wiring diagrams are furnished inside the service panel and in this manual. If an item on the list is followed by , the work should be done by a qualified service representative.
  • Page 16 “Maintenance” section of this manual. Auth b. Heater elements with ohmmeter for ground Service short or open element. If an element is Rep Only defective, call Groen. • c. Voltage of main power source. • Safety valve pops. User a.

  • Page 17: Parts List

    OM-DEE/4 PARTS LIST - DEE/4...
  • Page 18 OM-DEE/4 PARTS LIST - DEE/4...
  • Page 19 OM-DEE/4 PARTS LIST - DEE/4 To order parts, contact your Groen Authorized Service Agent. Supply the model designation, serial number, part description, part number, quantity, and when applicable, voltage and phase. Key Description Part No. Key Description Part No. Water Fill Assembly...

  • Page 20: Wiring Diagram

    OM-DEE/4 WIRING DIAGRAM - DEE/4...

  • Page 21: Maintenance Log

    OM-DEE/4 OM-DEE/4 Service Log Model No. _______________________________ Purchased From _________________________ Serial No. _______________________________ Location ________________________________ Date Purchased __________________________ Date Installed ___________________________ Purchase Order No. ______________________ For Service Call __________________________ Date Service Performed Performed By...

  • Page 22: Warranty

    Groen Foodservice Equipment ("Groen Equipment") has been skillfully manufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations.
  • Page 23 NOTES...
  • Page 24 1055 Mendell Davis Drive 1055 Mendell Davis Drive Jackson, Mississippi 39272 Part Number 148783 Telephone 601 373-3903 Jackson, MS 39272 FAX 601 373-9587 Telephone 601 372-3903 OM-DEE/4 groen.com Fax 601 373-9587 www.groen.com Part Number 148783 Rev. E DEE/4, P N . 148783...

This manual is also suitable for:

Dee/4-40Dee/4-60Dee/4-20
