OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
MODEL DHS(/T)-40 &
DHS(/T)-40(C,A)
LOW HEIGHT STEAM
JACKETED KETTLE
With Standard Electronic Ignition
· Self-Contained
· Floor Mounted
· Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
POST IN A PROMINENT LOCATION
Instructions to be followed in the event user smells gas.
This information shall be obtained by consulting your
local gas supplier. As a minimum, turn off the gas and
call your gas company and your authorized service agent.
Evacuate all personnel from the area.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this
equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed dam-
age. Unified Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
PART NUMBER 174846, REV. C (07/17)
Domestic
· Stainless Steel
· Gas Heated
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Groen DHS-40
Summary of Contents for Groen DHS-40
- Page 1 OPERATOR MANUAL IMPORTANT INFORMATION, KEEP FOR OPERATOR This manual provides information for: MODEL DHS(/T)-40 & DHS(/T)-40(C,A) Domestic LOW HEIGHT STEAM JACKETED KETTLE With Standard Electronic Ignition · Self-Contained · Stainless Steel · Floor Mounted · Gas Heated · Tilting THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
-
Page 2: Important Operator Warnings
CLOSE THE MAIN GAS VALVE. ALLOW 5 MINUTES FOR GAS TO VENT. CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR AUTHORIZED DISTRIBUTORS CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES. - Page 3 IMPORTANT - READ FIRST - IMPORTANT WARNING: KEEP AREA AROUND KETTLE FREE AND CLEAR OF ALL COMBUSTIBLE MATERIALS. FAILURE TO DO SO COULD RESULT IN FIRE OR PROPERTY DAMAGE. CAUTION: HEATING AN EMPTY KETTLE MAY CAUSE THE RELEASE OF STEAM FROM THE PRESSURE RELIEF VALVE. IMPORTANT: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES.
-
Page 4: Table Of Contents
Table of Contents Important Operator Warnings .............page 2-3 References..................page 4 Equipment Description..............page 5 Inspection and Unpacking ............page 6 Installation .................. page 7-8 Initial Start-Up................page 9 Operation ................page 10-13 Sequence of Operation ..............page 14 Cleaning..................page 15 Maintenance................ -
Page 5: Equipment Description

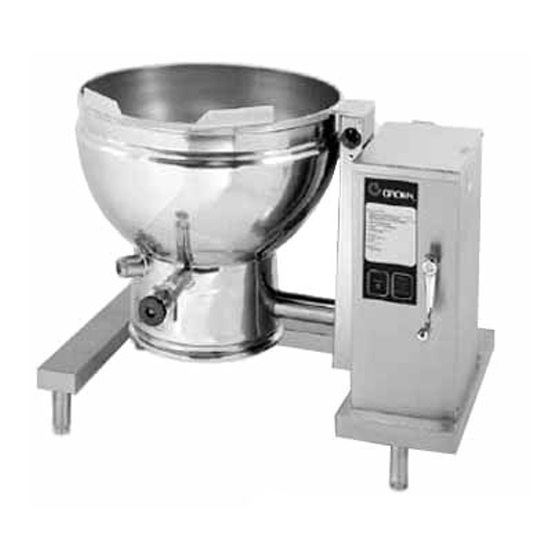

Equipment Description KETTLE CHARACTERISTICS The Groen DHS is a floor-mounted, tilting, steam jacketed kettle with an electronically controlled, self-contained, gas-heated steam source and appropriate controls, mounted DHS-40 DHS/T-40 on a sturdy base. The Model DHS is currently only available in a 40 gallon capacity. -
