  • Page 1 Wireless Scanning and Payment All-in-One Device User 's manual...

  • Page 3: Notice

    Wireless Scanning and Payment All-in-One Device Precautions 1. Please read the user manual carefully before using this barcode scanner. 2. The working voltage of this barcode scanner is 3.3V, charging voltage 5V. Please use our original USB cable and AC power adapter to ensure the scanner is working properly.

  • Page 4: Table Of Contents

    Wireless Scanning and Payment All-in-One Device Contents 1.Notice................2.Introduction & Features .............. 3.Application & Execution Standards ........4.Working Conditions& Related regulations....... 5.Appearance ..............6.How to use the barcode scanner ........... 7.Reset Configuration to Defaults&Version information ....8.Pair with bluetooth ............

  • Page 5: Introduction & Features

    Wireless Scanning and Payment All-in-One Device Introduction The series of barcode scanner produced by our company feature as strong light source， enhanced long-distance scanning technology. It can read the damaged,stained and poor printed barcode fast under different ambient light conditions. It is durable in use, since it is protected by the industrial safty technique.High volume buzzer is another hint of success scanning besides LED light in the noisy industrial environment.

  • Page 6: Application & Execution Standards

    Wireless Scanning and Payment All-in-One Device Application * Applicable to Business (electrical, book, clothing, medicine, cosmetics, etc.), retail industry, postal service, telecommunications industry,warehousing, logistics industry, public security system, customs systems,banking system, medical system. * Compatible with Android、 IOS、 Linux、 windows98 and above operating systems and bluetooth protocol.

  • Page 7: Working Conditions& Related Regulations

    Wireless Scanning and Payment All-in-One Device Working Conditions Working Temperature： 32°F to 104°F/0°C to 40°C. Storage Temperature： -40°F to 140°F/-40°C to 60°C. Humidity： 5% to 95% relative humidity (no condensation). Ruggedness: Resist about several times drops from 1.5m to concrete ground. Ambient Light Immunity：...

  • Page 8: Appearance

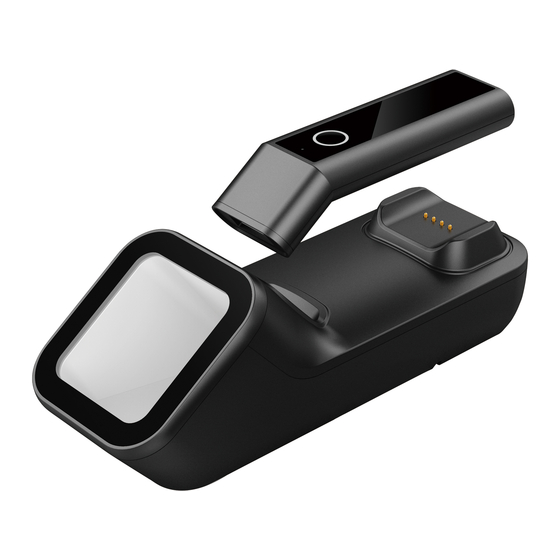

    Wireless Scanning and Payment All-in-One Device Appearance Introduction Pedestal Scanning Window Charging thimble Charging Indicator Bluetooth Indicator Switch/Scanning button USB charge interface...

  • Page 9: How To Use The Barcode Scanner

    Wireless Scanning and Payment All-in-One Device How to use the barcode scanner A.When use the scanner alone： 1.The barcode scanner only supports bluetooth protocols， which is compatible with Android、 IOS system and PC terminals with bluetooth. （Please refer to page 9 ） . pair with smartphone 2.Connect USB Type-C end with scanner, and other side with PC.
  • Page 10 Wireless Scanning and Payment All-in-One Device B.When used along with the pedestal： The pedestals mode have desktop mode and handheld mode. When you use the pedestals， please pair the scanner with mini-receiver installed in the pedestals. 1.Desktop mode： Put the barcode scanner with pedestals on the desk. When you charge the scanner you can use the pedestals scanning window for scanning.

  • Page 11: Reset Configuration To Defaults&Version Information

    Wireless Scanning and Payment All-in-One Device Reset Configuration to Defaults&Version Information During usage,if you scan other setup barcode by mistake and the scanning cannot perform as normal way, you can scan the initialization setup barcode to revert. Reset Configuration to Defaults Display Version Information Electric Quantity Display Bluetooth Pairing：...

  • Page 12: Pull Up And Hide Ios Keyboard&Caps Lock

    Wireless Scanning and Payment All-in-One Device Pull up and Hide iOS Keyboard Pull up and Hide iOS Keyboard Trigger twice to pull up iOS keyboard Trigger twice to disable iOS keyboard Caps Locks Switch to Lowcase Set Switch to Capital Set Turn off...

  • Page 13: Pair With Pedestal

    Wireless Scanning and Payment All-in-One Device Pair with pedestal which is installed the 2.4G mini-receiver Pair with the devices without bluetooth(such as desktop computer） via pedestal which is installed the receiver.Dongle pairing methods as follows： A:Scan “2.4GHz Wireless Mode” setup barcodes. B:Scan “Compulsory Pair with Dongle Setup Barcode”...

  • Page 14: Sound And Vibration Setting

    Wireless Scanning and Payment All-in-One Device Sound and Vibration Setting Select the desired to turn on/off the sound or vibration setup barcode turn off the sound turn on the sound Vibration off （optional） Vibration on （optional）...

  • Page 15: Standby Time Setting

    Wireless Scanning and Payment All-in-One Device Standby time Setting Standby after 1 min Standby after5 mins Standby after10 mins Standby after30 mins Never Standby Standby Immediately...

  • Page 16: Language Settings

    Wireless Scanning and Payment All-in-One Device Language Settings English German French Spanish Italian Japanese Only for PC American Keyboard output...

  • Page 17: End Character Setting

    Wireless Scanning and Payment All-in-One Device End Character Settings Select the end character you want to add CR: Carriage Return， LF:Line Feed Add CR Add LF Add CR+LF Cancel CR+LF Add TAB...

  • Page 18: Transmission Speed Setting And Bluetooth Protocol

    Wireless Scanning and Payment All-in-One Device Transmission Speed Setting Select the corresponding transmission speed according to PC receiving speed. Fast Medium Slow Very slow Bluetooth protocols Select the desired communication bluetooth protocol barcode bluetooth HID mode bluetooth SPP mode bluetooth BLE mode Note: Scan above barcode to enter the bluetooth searching state...

  • Page 19: Operating Mode

    Wireless Scanning and Payment All-in-One Device Operating Mode In normal mode, the scans are uploaded directly to computer via USB cable or wireless dongle. If succeeds, barcode scannner will make a low-frequency short tone. If it fails, there willl be three low frequency short tones to alarm. In normal mode, if fails, the data will be lost.You can scan below: normal mode If the transfer range is beyond 2.4G wireless transfer range storage mode...
  • Page 20 Wireless Scanning and Payment All-in-One Device Upload the stored data by scanning the "Data Upload" barcode. After data upload, it won’ t delete the barcode on the scanner automatically.So the user can scan the “data upload” many time to upload the data. Data Upload Note: When uploading data, please ensure the wireless signal is perfect, or upload after connecting with USB cable...

  • Page 21: Bluetooth Name Change Setting

    Wireless Scanning and Payment All-in-One Device Bluetooth Name Change Setting A.Scan Bluetooth Name Change Setup Barcode: Bluetooth Name Change Setup Barcode B.Scan the user-defined barcode of bluetooth name within 16 characters (Symbology unlimited,letter,number or symbol works). If customer wants to change the bluetooth name as you like it, you should equipped with bar code generator yourself.

  • Page 22: Hide Front And Back Characters

    Wireless Scanning and Payment All-in-One Device Hide front and back characters A : Scan” Hide front character” or” Hide back character” Setup Barcodes. Hide front character Hide back character B: Scan hide quantity of characters. Hide 1 character Hide 2 characters Hide 4 characters Hide 3 characters...
  • Page 23 Wireless Scanning and Payment All-in-One Device Hide 6 characters Hide 5 characters Hide 8 characters Hide 7 characters Note: If you want to cancel “Hide front and back characters” operation, please scan barcodes of “Hide front character” or” Hide back character” Setup Barcode again.

  • Page 24: Set Prefix And Suffix

    Wireless Scanning and Payment All-in-One Device Set Prefix and Suffix A : Scan the "Allow for Prefix Adding" or "Allow for Suffix Adding" setup barcode. Allow for Prefix Adding Allow for Suffix Adding B : Select the desired contents of prefix or suffix （ Appendix A） . Note: If you want to cancel Prefix or Suffix Adding operation,please scan barcodes of “Allow for Prefix Adding”...

  • Page 25: Appendix A

    Wireless Scanning and Payment All-in-One Device Appendix A:...
  • Page 26 Wireless Scanning and Payment All-in-One Device...
  • Page 27 Wireless Scanning and Payment All-in-One Device...
  • Page 28 Wireless Scanning and Payment All-in-One Device...
  • Page 29 Wireless Scanning and Payment All-in-One Device...
  • Page 30 Wireless Scanning and Payment All-in-One Device...
  • Page 31 Wireless Scanning and Payment All-in-One Device...
  • Page 32 Wireless Scanning and Payment All-in-One Device...
  • Page 33 Wireless Scanning and Payment All-in-One Device...
  • Page 34 Wireless Scanning and Payment All-in-One Device...
  • Page 35 Wireless Scanning and Payment All-in-One Device...

  • Page 36: Faq

    Wireless Scanning and Payment All-in-One Device What should I do if I can not pair scanner with Bluetooth devices? A.Please make sure that scanner is in the matching state under corresponding bluetooth protocol B.If the devices has connected successfully with other barcode scanner via bluetooth,or other devices.Please delete the bluetooth connection record before connecting.

  • Page 37: Buzzer And Indicator Light State

    Wireless Scanning and Payment All-in-One Device Buzzer Sound Type Description a long sound （First low then high frequency ） Means power on a long sound （First high then low frequency ） Means power off a short sound （ low frequency ） Means read barcode a short sound （First low then high frequency ）...

  • Page 38: Electric Quantity Display

    Electric Quantity Display...
