  • Page 1 portable barcode scanner...

  • Page 3: Notices

    portable barcode scanner Notices 1. Please read the user manual carefully before using this product. 2. The working voltage of this barcode scanner is 3.3V, charging voltage 5V. Please use our original USB cable to ensure the scanner work properly. 3.

  • Page 4: Table Of Contents

    portable barcode scanner Contents 1.Notices........................1 2.Introduction&Features..................3 3.Application&Parameters..................4 4.Working Environment&Related Regulations............. 5 5.Outside Introduction...................6 6.USB Cable Installation..................7 7.Initialization Settings&Version Information............8 8.BluetoothPairing Method..................8 9.Pull up/Hide keyboard(IOS system)&Caps Lock Switch&Caps Lock Switch.. 9 10.Pairing steps with receiver..................10 11.Sound/Vibration Setting..................11 12.Sleep Time Setting....................11 13.Ending Character Setting...................12 14.Keyboard Language Setting................

  • Page 5: Introduction&Features

    Ring Barcode Scanner Introduction The series of barcode scanner produced by our company feature as strong light source，enhanced long-distance scanning technology. It can read the damaged,stained and poor printed barcode fast under different ambient light conditions. It is durable in use, since it is protected by the industrial safty technique. High volume buzzer is another hint of success scanning besides LED light in the noisy industrial environment.

  • Page 6: Application&Parameters

    Ring Barcode Scanner Application * Applicable to Business (electrical, book, clothing, medicine, cosmetics, etc.), retail industry, postal service, telecommunications industry,warehousing, logistics industry, public security system, customs systems,banking system, medical system. * Compatible with Microsoft, Android, Linux and other operating systems and bluetooth protocol * Support multi-national keyboard language Parameters Wireless protocol：bluetooth...

  • Page 7: Working Environment&Related Regulations

    portable barcode scanner Working Environment Working Temperature： 32°F to 104°F/0°C to 40°C Storage Temperature：-40°F to 140°F/-40°C to 60°C Humidity：5% to 95% relative humidity (no condensation) Ruggedness: Resist about 6 times drops from 1.5m to concrete ground Ambient Light Immunity： Under normal office and factory ambient lighting conditions, or exposed to the sun won’t take any effect to it.

  • Page 8: Outside Introduction

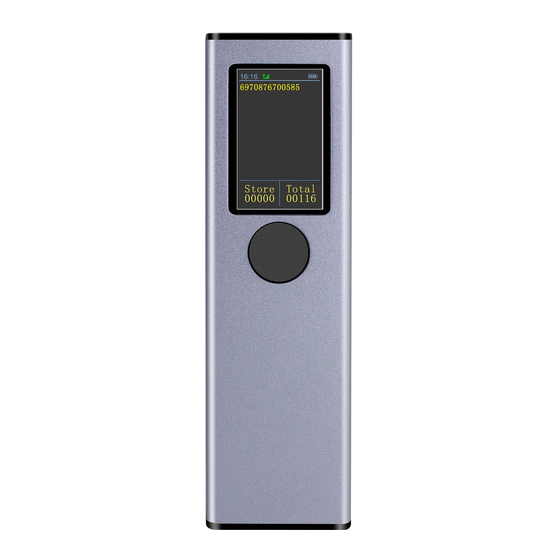

    portable barcode scanner Outside Introduction Turn On/Scan Button IPS Screen Scan Window Turn On/Scan Button IPS Screen Threading Hole Type C interface...

  • Page 9: Usb Cable Installation

    portable barcode scanner USB Cable Installation sample graph Each barcode scanner is with oneType C interface，For connection, please refer to above sample diagram. Noted: Computer host can charge scanner via tpy-c cable and USB cable can also be used as a wire to transmit barcodes. The installation method is as follows: 1.Connect USB cable’s Square Side interface to the bottom of the scanner;...

  • Page 10: Initialization Settings&Version Information

    portable barcode scanner Initialization Settings&Version Information A：You can scan the setting code“Initialization Settings”to make the scanner back to factory default settings B：If you have after-sales problems and need to contact our customer service staff, please provide version information by scanning setting code“Version Information”...

  • Page 11: Pull Up/Hide Keyboard(Ios System)&Caps Lock Switch&Caps Lock Switch

    portable barcode scanner Pull up/Hide keyboard(IOS system)&Caps Lock Switch Pull up/Hide IOS keyboard Double-Click to Pull up IOS keyboard Double-Click to Hide IOS keyboard Caps Lock Switch All Lowercase All Uppercase Do not convert case Case Interchange...

  • Page 12: Pairing Steps With Receiver

    portable barcode scanner Pairing steps with receiver 1st:Scanning following setting code 2nd:Scanning following setting code 3rd:Insert the 2.4G wireless receiver into USB port in your device. One beep show that scanner and receiver connected. Notes：When the scanner is entered 2.4G pairing status and it does not get connected with your device within 1 minutes,it will beep twice lowly and longly.You need to repeat above-mentioned 3 steps to make it connect with you device.(When the scanner is in the 2.4G pairing status,...

  • Page 13: Sound/Vibration Setting

    portable barcode scanner Sound/Vibration Setting Sound OFF Sound ON Vibration OFF(optional) Vibration ON(optional) Sleep Time Setting 1 min 5 min 10 min 30 min Never Sleep Sleep Immediately...

  • Page 14: Ending Character Setting

    portable barcode scanner Ending Character Setting Add CR(Carriage Return) Add LF(Linefeed) Add CR+LF Cancel CR+LF Add TAB...

  • Page 15: Keyboard Language Setting

    portable barcode scanner Keyboard Language Setting English(USA) German French Spanish Italian Janpanese International Universal Keyboard Belgian Portuguese English(UK) Portuguese(Brazil) French(Switzerland)
  • Page 16 portable barcode scanner Russian Czech French(Canada) Hungarian Polish Sweden / Finland Spanish(Mexico) Argentine(Latin America) Norwegian German(Swizerland)

  • Page 17: Transmission Speed Setting&Bluetooth Protocal

    portable barcode scanner Transmission Speed Setting Choosing the transmission speed according to the receiving speed of the device Fast Middle Slow Super Slow Bluetooth Protocal Bluetooth HID Bluetooth SPP Bluetooth BLE Notes：Scanning any one of above 3 setting codes can make the scanner enter bluetooth pairing status.

  • Page 18: Working Modes

    portable barcode scanner Working Modes Under“Normal Mode”,the data of the code you scanned will be transferred to your device via bluetooth,2.4G or USB.A short and low beep show the data is transferred successfully.If not,the scanner will beep 3 times shortly and lowly. Under“Normal Mode”,if scans failure,the data you just scanned will lost.
  • Page 19 portable barcode scanner Scanning following setting code to upload the data you have scanned to your device via bluetooth,2.4G wireless or USB. Notes：Making sure that scanner is got connected with your device. After uploading data,the data which have been stored in the scanner will not be deleted from the scanner Upload Data Scanning following setting code to clear all the data which is stored in the...

  • Page 20: Change Bluetooth Name

    portable barcode scanner Change Bluetooth Name 1st：Scanning following setting code”Change BT Name” Change BT Name 2nd：Scanning a customized codes which its data is the name you want. You can generate a customized code via barcode generator,like label shop. Or you also can contact with us to generate a code for you. For example：Folowing barcode’s data is “Scanner123”,after you scanned it,the bluetooth name of your scanner will be changed to “Scanner123”.

  • Page 21: Hide Pre-Characters/Post-Characters

    portable barcode scanner Hide Pre-characters/Post-characters 1st：Scanning following setting code“Hide Pre-characters”or“Hide Post-characters” Hide Pre-characters Hide Post-characters 2nd：Choosing how many characters you need to hide.
  • Page 22 portable barcode scanner Notes：If you need to cancel hiding characters setting,you can scan following setting code Cancel Hiding Pre-characters Cancel Hiding Post-characters...

  • Page 23: Prefix/Suffix Setting

    portable barcode scanner Prefix/Suffix Setting The setting prefix and suffix is divided into two parts,displayable characters and controlled characters 1st Part：Displayable characters Step1：Scanning following setting code“Add Prefix”or“Add Suffix” Add Prefix Add Suffix Step2 ：Finding the character which you need to add as prefix or suffix in appendix B,and scanning the barcode corresponding to the character.
  • Page 24 portable barcode scanner Character Set 2 Character Set 3 Character Set 4 Step2：Scanning following setting code“Add Prefix”or“Add Suffix” Add Prefix Add Suffix Step3：Finding the character which you need to add as prefix or suffix in appendix A,and scanning the barcode corresponding to the character.

  • Page 25: Enable/Disable Hid Searching By Pressing Scan Button 8S Settings

    portable barcode scanner Enable/Disable HID Searching by Pressing Scan Button 8S Settings Enable Disable...

  • Page 26: Add Time As Prefix Or Suffix

    portable barcode scanner Add Time As Prefix or Suffix A.Scanning setting code“Add Time as Prefix”,then there is scanning time in front of barcode data. Add Time as Prefix B.Scanning setting code“Add Time as Suffix”，then there is scanning time behind barcode data. Add Time as Suffix C.If you do not need scanning time as prefix or suffix,you can scan following setting code“Cancel Setting”.

  • Page 27: Update Time

    portable barcode scanner Update Time 1st：Making scanner and computer connected via USB cable,and turnning on the scanner. 2nd：Finding“Update_Time_V1.1.exe”program in the computer and open it.As following picture show. 3rd：Click“Update Time” Notes：“Update_time_V1.1.exe”program can be downloaded in website：https://share.weiyun.com/508OXFZ，or scanning following QR-code.

  • Page 28: Screen Show Products Information Settings

    portable barcode scanner Screen Show Products Information Settings. A.This scanner can store 2000 goods information(Including goods’barcode data,goods’ price and goods’specification) B.This scanner only supports to store goods which barcode characters number within13.If goods’barcode characters number beyond 13,scanner won’t extract product information. Step1：Creating a excel file,first line fill in goods’barcode data;second line fill in goods’...
  • Page 29 portable barcode scanner Step5：Clicking“Open”and choosing the Text files you just created, then clicking“Load file”.Do not press the trigger and make sure scanner is got connected with computer via USB cable. Step6：There is a status light in the DataTool program.It’s yellow after youpress the “Open”.It will be turnned to Green if loading file successfully,or Red if failured.

  • Page 30: Screen Language Setting

    portable barcode scanner Goods Information Display Setting Enable Disable Screen Language Setting Chinese English...

  • Page 31: Appendixa:controlled Characters

    portable barcode scanner AppendixA:Controlled Characters Character Set 0 Character Set 1 Character Set 2 Character Set 3 Character Set 4 Setting Code Decimal ASCII NULL Home Ctrl+A Alt+001 Cap Lock Ctrl+B Ctrl+B Alt+002 Right Arrow Ctrl+C Up Arrow Ctrl+C Alt+003 NULL Down Arrow Ctrl+D...
  • Page 32 portable barcode scanner Setting Code Character Set 0 Character Set 1 Character Set 2 Character Set 3 Character Set 4 Decimal ASCII Page Up Ctrl+N Alt+014 Insert Page Down Ctrl+O Alt+015 Ctrl+P Alt+016 NULL Ctrl+Q Alt+017 Home NULL Ctrl+R Alt+018 Print Screen NULL...
  • Page 33 portable barcode scanner Setting Code Character Set 0 Character Set 1 Character Set 2 Character Set 3 Character Set 4 Decimal ASCII ALT+028 Ctrl+\ Alt+028 ALT+029 Ctrl+] Alt+029 NULL Ctrl+^ Alt+030 NULL Ctrl+_ Alt+031...

  • Page 34: Appendixb:displayable Characters

    portable barcode scanner AppendixB:Displayable Characters Decimal ASCII Setting Code Decimal ASCII Setting Code 空格 " &...
  • Page 35 portable barcode scanner Decimal ASCII Setting Code Decimal ASCII Setting Code < >...
  • Page 36 portable barcode scanner Decimal ASCII Setting Code Decimal ASCII Setting Code...
  • Page 37 portable barcode scanner Decimal ASCII Setting Code Decimal ASCII Setting Code...

  • Page 38: Faq（Frequently Asked Questions

    portable barcode scanner FAQ （Frequently Asked Questions） What should I do if the scanner can not pair with my bluetooth device? A.Making sure the scanner is in the pairing state under the required Bluetooth protocol B.If the devices has connected successfully with other barcode scanner via bluetooth,or other devices.Please delete the bluetooth connection record before connecting C.The wireless module has been damaged...

  • Page 39: Buzzer Description

    portable barcode scanner Buzzer description Buzzcr Proformancc Introduction one/long beep power on low to high frequency one/long beep power off high to low frequency one/short beep read a code under normal mode low frequency one/short beep read a code under storage mode low to high frequency one/short beep read a setting mode...

  • Page 40: Led Indicator

    portable barcode scanner LED Light Introduction LED Light Proformance Introduction Blue light flash and turned off soon. Decode successfully and beep once shortly Red light always on shows charging, Red light off shows full Red light is charge indicator power or disconnected Do not detect battery Red light flash...
  • Page 41 Battery Display...
