Summary of Contents for Avantco F200

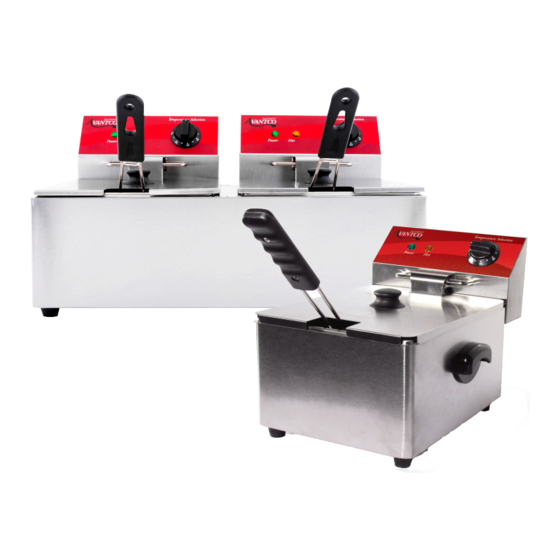

- Page 1 User Manual User Manual Electric Countertop Fryers Models: F100, F102, F200, F202 10/2019 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
- Page 2 • Keep children and animals away from fryer. • Do not modify unit. Thank you for purchasing and using Avantco's Electric Fryer. Please read this manual thoroughly before using to understand proper use and function. Safety warnings, cleaning suggestions and electrical recommendations are given to reduce the risk of damage or injury.
- Page 3 10 1/2" x 17" x 11 1/2" 21 1/2" x 17" x 11 1/2" Certifications Medium Duty Name Deep Fryer Single 8 Liter Deep Fryer Double 8 Liter (x2) Model F200 F202 Voltage 208/240V 208/240V Power 2700/3600W 5400/7200W Number of oil tanks Size of oil tanks 13"...
- Page 4 5. Stainless steel tanks include calibration marks for oil levels. a. F100 & F102 - Found on the removeable insert. b. F200 & F202 - Found directly on the welded fry tank. 6. Heating coils are protected by a stainless panel base at the bottom of the unit.
-
Page 5: Circuit Diagram
NOTES ABOUT FOOD: VOLUME OF FOOD SHOULD BE LIMITED TO AVOID OIL OVERFLOWING User Manual FOODS THAT DO NOT ABSORB OIL EASILY SHOULD BE LIMITED TO AV OVERFLOWING PLACE LARGE FOODS INTO THE FRYER CAREFULLY TO PREVENT OIL OVERFLOW AND SPATTER D. -
Page 6: Cleaning And Maintenance
6. Cover the fryer tank with the night cover after the oil has cooled and the unit is not in use. F200 & F202 Medium Duty Fryers 1. After fryer usage, turn power controller counterclockwise to the “OFF” position. Remove plug from power supply. -
Page 7: Troubleshooting
User Manual WARNINGS This equipment must be operated by trained cooks or professionals. • Do not touch any hot surfaces. • Do not immerse unit, cord or plug in liquid at any time. Troubleshooting Problem Causes Solution Indicator light will not turn on and Plug not properly in- Reinsert plug. -
Page 8: Daily Check
User Manual Daily Check Before Using • Make sure machine is on level surface. • Check to see if power cord is frayed or damaged. During Use • Check control panel for damage. • Check for any electrical smells. • Check for any strange sounds coming out of machine •... -
Page 9: Parts Diagram
User Manual Parts Diagram #177F100 Parts List Parts Diagram # Part Name Replacement Part # Parts Diagram # Part Name Replacement Part # Oil Pan 177FPAN Green "Power" Light 177PLIGHTGRN Bottom Grate 177FGRATE Orange "Hot" Light 177PLIGHTORG Fryer Base Temperature Limiter 177FTEMPLIM Fryer Basket with Front Hook 177FBASKET... - Page 10 User Manual Parts Diagram #177F200 Parts List Diagram # Part Name Replacement Part # Diagram # Part Name Replacement Part # Temp. safe-limiter 177PF2TL Heater protector Back cover of the control box Poles for the control box Terminal block 177PF2TBLK Body with oil tank Front board of the control box Fryer basket with handle...
- Page 11 User Manual www.AvantcoEquipment.com...
- Page 12 Equipment Limited Warranty Avantco warrants its equipment to be free from defects in material and workmanship for a period of 6 months. This is the sole and exclusive warranty made by Avantco covering your Avantco brand equipment. A claim under this warranty must be made within 6 months from the date of purchase of the equipment.
