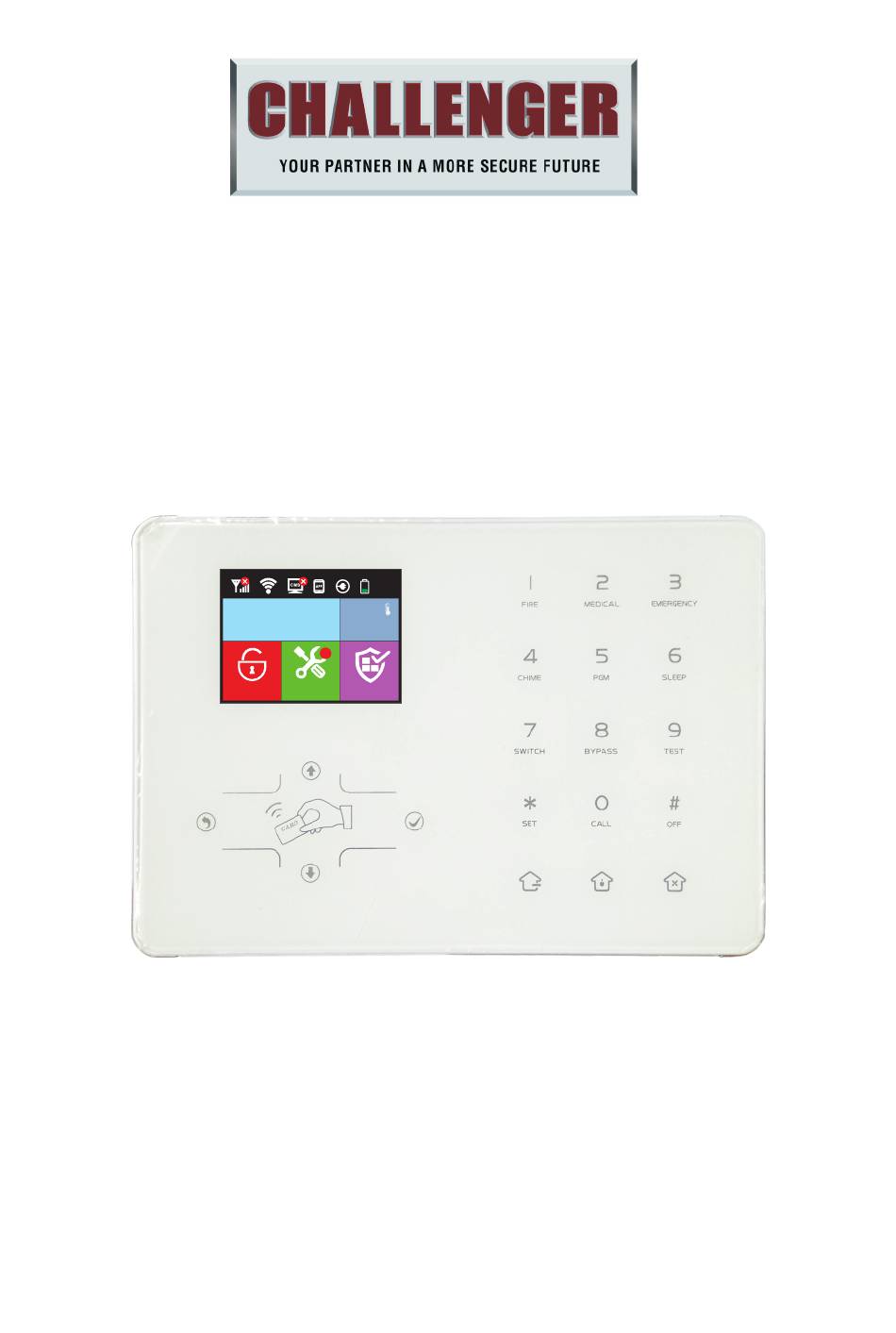

HOME FORCE Wireless
Intelligent Security System

USER MANUAL

2017-11- 10
13:55
23
4
2
Disarm
fault
CMS
Zone Normal
AKWK1
Please read the instruction manual thoroughly
before installing and retain for future reference.
P/N:20181113B02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKWK1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Challenger AKWK1

  • Page 1: User Manual

    HOME FORCE Wireless Intelligent Security System USER MANUAL 2017-11- 10 ℃ 13:55 Disarm fault Zone Normal AKWK1 Please read the instruction manual thoroughly before installing and retain for future reference. P/N:20181113B02...
  • Page 3 User manual Brief Thank you for purchasing the HOME FORCE system,we hope our products can bring convenience and protection.The HOME FORCE system uses the most advanced digital sensing and control technology.The HOME FORCE products can connect to mobile phone APP and platform through accurate and simple WiFi connection mode, with remote control and wireless alarm mode to push notification.
  • Page 5: Table Of Contents

    User manual Table Of Contents Chapter I Product Introduction Chapter II Installation and Connection 2.1 Installation 2.2 Phone card inserted and removed Chapter III Key description and Basic operation 3.1 Key description 3.2 Basic operation 3.3 LCD icon 3.4 System Arm and Disarm 3.5 Alarm procedure Chapter IV Voice Alarm Receiving And GSM Control 4.1 Remote phone control...
  • Page 6 User manual 6.4 Set CMS 6.4.1 Phone CMS Enable 6.4.2 CMS Phone No. 1 6.4.3 CMS Phone No. 2 6.4.4 CMS user Number 6.4.5 CMS Dialing Times 6.4.6 Internet CMS Enable 6.4.7 Sever IP 6.4.8 Sever Port 6.4.9 Sever Account 6.4.10 Sever Password 6.4.11 Sever Heartbeat 6.5 Set Voice Phone...
  • Page 7 User manual 6.8 Zone Management 6.9 Set Alarm Alert 6.10 Time 6.10.1 Auto time 6.10.2 Daylingt-saving time 6.10.3 Time 12h/24h 6.10.4 Time zone 6.10.5 Time 6.10.6 Timing Arm/Disarm 6.11 Restart 6.11.1 Restart 6.11.2 Delete logs 6.11.3 Factory default 6.12 Display 6.13 RFID 6.14 Others 6.14.1 Recording...
  • Page 8: Chapter I Product Introduction

    User manual Chapter I Product Introduction 1. Alarm Mode: With Internet network and GSM network alarm,GSM network with GPRS function,remote arm and disarm panel through CMS or SMS,CID protocol,SMS notification,the priority of Internet Network and GSM Network is Optional. 2. With a new color-screen, full-touch buttons, LCD graphic display steps,working status,alarm process easy and intuitive.
  • Page 9: Wifi Config 1

    User manual 15. Timing Arm/Disarm: 4 sets of timing arm and disarm time. 16. Zone Programmable: factory preset for each zone type. Users can modify all the zone type according to the actual needs . 17. Clock: The built-in automatic calendar clock can be set in accordance with local time and can be automatically timed.
  • Page 10: Chapter Ii Installation And Connection

    Chapter II Installation and Connection 2.1 Installation 2.1.1 AKWK1 installation The AKWK1 kit is supplied with a wall mounting bracket (Fig 2-1). An optional desk mount base is available AKWK1BK (Fig 2-2). After the power supply is turned on the stand, the main...
  • Page 11: Phone Card Inserted And Removed

    User manual 2.2 Ensure the panel is not near any metal objects as this can affect the wireless signal range. 2 3 Make sure to place the panel within the wireless range of all wireless accessories and Devices. 2.2 Phone card inserted and removed Mobile phone network providers tested are 02, Vodafone, EE.
  • Page 12: Chapter Iii Key Description And Basic Operation

    User manual Chapter III Key description and Basic operation 3.1 Key description 2017-11-10 ℃ 13:55 Disarm fault Zone Normal Arm(Full Arm) Home Arm(Part Arm) Disarm RFID Card Up key Down key,System status/zone status/event log inquiry key Return key, volume reduction Confirm key,volume plus...
  • Page 13: Basic Operation

    User manual Press 3 seconds to trigger fire alarm Press 3 seconds for medical help Press 3 seconds for SOS Press 3 seconds and enter user code to enable or disable delay zone door bell This machine does not support this function Press 3 seconds to enter or exit sleep mode Press 3 seconds then enter user code to enable or disable electrical power switch...
  • Page 14: Lcd Icon

    User manual Disarm: User password [1234]+Disarm key Home Arm(Part Arm): Home arm key Arm(Full Arm): Arm key Event Log: Press Down key to choose event log + Shutdown: AC power off firstly, in disarm status, Press # key for 3s, enter 1234# command.
  • Page 15: System Arm And Disarm

    User manual 3.4 System Arm and Disarm ☆ ARM(Full Arm) ☆ DISARM Di ~ Di ~ ~Di~ ~Di~ 2017 - 11- 10 2017 -11-10 ℃ ℃ 13:55 13:55 Disarm fault Zone Normal Disarm fault Zone Normal 2017-11-10 2017- 11- 10 ℃...
  • Page 16: Alarm Procedure

    User manual 3.5 Alarm procedure Telephone Telephone Cell phone Cell phone Mobile APP 3.The panel will dial 1-4 telephone numbers as preset.If more than 4 numbers, the panel will start will second telephone number, then3,4… Wireless Internet CMS Alarm situation found, 1.The detector activated start to send message send alarm information to...
  • Page 17: Chapter Iv Voice Alarm Receiving And Gsm Control

    User manual Chapter IV Voice Alarm Receiving And GSM Control 4.1 Remote phone control User make phone call to the GSM No.of the alarm control panel.Directly connect to the alarm control panel,according to the voice prompt to enter the user pass- word as below photo.
  • Page 18: Gsm Control Via Sms

    User manual 4.3 GSM control via SMS #PWD1234 # ARM Arm Command #PWD1234 #DISARM Disarm Command #PWD1234 # HOME Home Arm Command Status Checking command #PWD1234 # CHECK #PWD1234 # SWITCH OPEN XX(XX=01-16 Enable appliance switch command on behalf of appliance switch number) #PWD1234 # SWITCH CLOSE XX(XX=01-1 Disable appliance switch command 6 on behalf of appliance switch number)
  • Page 19: Chapter V User Settings

    Note: Up to16 user passwords,corresponding password No. From 01 to 16,Only No.1 password is the Manager and this password can only enter the user settings. 5.2 Set Voice Phone( refer to 6.4) 5.3 WiFi config The Challenger APP “HOME FORCE” can be downloaded from the Play or APP Store.
  • Page 20 User manual For new users, please click "user registration”. Fig. 5-1 Fig. 5-2 Click the app to enter login interface . User name: (EMAIL) Password: (set as you like) After setting, please enter the code and click “Register”. After the registration is successful, the interface will automatically There are two methods the alarm panel can be learnt to the APP, if you are having difficulty with method 1, please use method 2.
  • Page 21 User manual Step 2: iPhone Select WiFi Config Select your WiFi Select+ Select WiFi-GSM network & password –press Config 18088866@163.COM 030648D6D On alarm panel, When the alarm 030648D6D re-enter the code panel displays & select‘AP QR “WiFi Configuration code’and scan with successful”...
  • Page 22 User manual SelectSettings Select WiFi-settings SelectSmart Select Colour Settings WiFi Screen 18088866@163.COM On alarm panel, When the alarm 030648D6D 030648D6D re-enter the code panel displays &select ‘AP QR “WiFi Configuration code’ and scan successful” with phone Enter password and When scanned press Start Configuration and confirmed Method 2:AP setting WiFi...
  • Page 23 User manual Step 3: Press and hold the host For more than 3 seconds, the voice prompts "Please enter the password". Input Enter AP mode; Enter AP mode AP name:WIFI_PANEL AP password:B996DAD0 APP account:admin password :012345 Server IP:192.168.1.1 Server port:18034 Step 4: Open the phone WiFi settings, select the hotspot name and enter the hotspot password to connect;...
  • Page 24: Chapter Vi System Setting

    User manual Chapter VI System Parameters Settings , [*]for 3 seconds Press voice prompt Password WiFi Network “please enter Administrator password” Phone Options Zone Alert Wireless SmartHome Time Restart RFID Display Others About CrossZone 6.1 Set password Press[*]for 3 seconds,voice prompt“please enter password” the following operations can be performed:...
  • Page 25: Wifi

    User manual 2.Administrator password is 6 digit, user password is 4 digit, can set 16 user password, corresponding password No. from 01 to 16, but No.02-16 password can not enter user setting. For example: Change admin password to 888888 Press[*]for 3 seconds Enter password 8 8 8 8 Settings saved!
  • Page 26: Dhcp

    User manual 6.3.1 DHCP Enabled DHCP means using DHCP server to assign IP address, subnet mask and default gateway automatically.(default is enabled) For example: Disabled DHCP Press[*]for 3 seconds Enter password Press 3 times Settings saved! LCD display 0 is disabled,1 is enabled After the setting is completed, the screen will automatically return to the upper interface.
  • Page 27: Subnet Mask

    User manual Press[*]for 3 seconds Enter password Press 3 times Press 2 times 9 2 1 6 8 0 0 3 0 0 1 Settings saved! LCD display After the setting is completed, the screen will automatically return to the upper interface. 6.3.4 Subnet mask For example: set Subnetmaks as 255.255.255.240 Press[*]for 3 seconds...
  • Page 28: Web Port

    User manual 6.3.7 WEB port Please refer to the above operation method. 6.4 Set CMS Phone CMS Enable Press [*] for 3 seconds, Phone No. voice prompt”Please enter password” CMS Phone No. CMS user Number Press 4 times Dialing Times Internet CMS Enable Sever IP Sever Port...
  • Page 29: Cms User Number

    User manual Press[*]for 3 seconds Enter password Press 4 times Settings saved! LCD display After the setting is completed, the screen will automatically return to the upper interface 6.4.3 CMS Phone No. 2 Please refer to 6.3.2 6.4.4 CMS user Number The user No.
  • Page 30: Internet Cms Enable

    User manual 6.4.6 Internet CMS Enable (the default is disabled) For example: Enable network platform. Press[*]for 3 seconds Enter password Press 4 times Settings saved! Press 5 times LCD display 0 is disabled, 1 is enabled, after the setting is completed, the screen will automatically return to the upper interface.
  • Page 31: Sever Password

    User manual Press[*]for 3 seconds Enter password Press 4 times 0 0 1 0 1 0 Settings saved! Press 8 times LCD display Register ID can be set up to 8 digits at most, After the setting is completed, the screen will automatically return to the upper interface.
  • Page 32: Set Voice Phone

    User manual 6.5 Set Voice Phone Voice Phone 1 Press for 3 seconds, voice prompt”please Voice Phone 2 enter password” Voice Phone 3 Voice Phone 4 Press 5 times Dialing times APP Server IP APP Server port APP Account APP Password APP QR code 6.5.1 Set voice phone number When alarm happens, the device will dial user’s phone no., it can set...
  • Page 33: App Server Ip

    User manual 6.5.3 APP Server IP ①Set App server:default is 119.147.144.090 For example: set App server IP as 114.184.162.081 Press[*]for 3 seconds Enter password Press 5 times Press 5 times 6 2 0 8 1 Settings saved! LCD display After the setting is completed, the screen will automatically return to the upper interface.
  • Page 34: Exit Delay

    User manual Press[*]for 3 seconds Enter password Press 6 times Settings saved! LCD display The entry delay time can be set from 1-255, if an error has been made press or if you wish to move back a digit then press the UP button to move back to the previous digit.
  • Page 35: Sensor Loss

    User manual 6.6.4 Sensor loss In the set time period, the panel will detect if it has received the status report or alarm info from the detector, if not received, this detector will be regarded loss, recommended loss inspection time no less than 6 hours.( default is 0, disabled) For example: set detector loss inspection time as 8 hours.
  • Page 36: Comm Test

    User manual 6.6.6 Comm Test Within this period, the alarm panel will send a test signal to the CMS to check if communication is working. (Factory default is 0, disable) E.g. Set communication test period as 3h. Press[*]for 3 seconds Enter password Press 6 times Press 5 times...
  • Page 37: Force Arming

    User manual Press[*]for 3 seconds Enter password Press 6 times Press 7 times Settings saved! LCD display 0 is disable, 1 is enable.After the setting is completed, the screen will automatically return to the upper interface. 6.6.9 Force Arming if enabled to set force arm, when there is zone trouble, the system can be armed and omits the zone in trouble and the trouble zone bypass message to CMS.
  • Page 38: Sensor Tamper Check

    User manual 6.6.11 Sensor Tamper Check If enabled this checks when the detector tamper has been operated and will cause an alarm. If disabled will not activate the alarm. (Factory default disabled) Press[*]for 3 seconds Enter password Press 6 times Settings saved! Press 10 times LCD display...
  • Page 39: Learning Wireless Devices

    User manual Press[*]for 3 seconds Enter password Press 6 times Settings saved! Press 12 times LCD display switch selection, After the setting is completed, the screen will automatically return to the upper interface. Learning Wireless Devices Wireless Remote Press * for 3 seconds, voice prompting “enter password”.
  • Page 40: Wireless Sensor

    User manual Support 8 remote control at max. E.g: Add address code (112005123) of the remote automatically. Press[*]for 3 seconds Enter password Press 7 times 112005123 Setting is saved! Continue Save Press arm key LCD display LCD display After the setting is completed, the screen will automatically return to the upper interface 6.7.2 Wireless Sensor Press[*]for 3 seconds...
  • Page 41: Wireless Siren

    User manual Press[*]for 3 seconds Enter password Press 7 times to select address code118006123 Confirm to delete? Settings saved! Confirm Cancel LCD display After the setting is completed, the screen will automatically return to the upper interface 6.7.3 Wireless Siren Support one dual-way siren, countless one-way siren.
  • Page 42: Zone Management

    User manual 6.8 Zone Management Press * for 3 seconds, voice prompting “enter password”. can set zone type Press 8 times Zone 1-32 is reserved wireless devices , Zone 32-40 is for wired device(This panel does not support). User can set zone type, zone alarm siren type and chime function.
  • Page 43: Set Alarm Alert

    User manual E.g.: set zone 31 as 12/h Alarm zone Press[*]for 3 seconds Enter password Press 8 times Press 5 times Select key zone Settings saved! LCD display Press mobile, according to open selection,After the setting is completed, the screen will automatically return to the upper interface. Set Alarm Alert Press * for 3 seconds, voice prompting “enter password”.
  • Page 44 User manual Factory Default Alarm Alert Type Voice Phone Email System Away System Disarm System Stay System low battery AC loss AC Restore Alarm Cancel Sensor Low Battery Sensor bat Recovery RF lost Programming Changed Arm Failed Periodic Test Report Zone Bypass System Bat Restore Communication Trouble...
  • Page 45 User manual Factory Default Alarm Alert Type Voice Phone Email Burglary Recovery Panic Recovery 24 Hour Recovery Fire Recovery Emergency Recovery Tamper Recovery RF Loss Recovery Duress password: user password When you enter the duress password,you will trigger an duress alarm.If enter duress password When the system is under arm status,keypad will display system is disarmed,stop siren but send alarm info and alarm call.
  • Page 46: Time

    User manual 6.10 Time Auto time Press * for 3 seconds, Daylingt-saving time voice prompting “enter password”. 24-hour system Time zone Time Press 11 times Timing Arm/Disarm 1 Timing Arm/Disarm 2 Timing Arm/Disarm 3 Timing Arm/Disarm 4 6.10.1 Auto time (default is open) For example: Set automatic timing to close Press[*]for 3 seconds...
  • Page 47: Time 12H/24H

    User manual 6.10.3 Time 12h/24h (The default is to open) Example: Set time-zone as London time-zone GMT Press[*]for 3 seconds Enter password Press 11 times Press 2 times Settings saved! LCD display 0 is disable, 1 is enable.After the setting is completed, the screen will automatically return to the upper interface.
  • Page 48: Timing Arm/Disarm

    User manual 6.10. 6 Timing Arm/Disarm There are four options to automatically arm and disarm the alarm system per day if required (i.e. Arm at 7:58 disarm at 22.05) Press[*]for 3 seconds Enter password Press 11 times Press 5 times Settings saved! LCD display For downward selection,...
  • Page 49: Restart

    User manual 6.11 Restart Press * for 3 seconds, voice prompting “enter password”. Restart Delete logs Press 12 times Factory default 6.11. 1 Restart For example: restart the system. Press[*]for 3 seconds Enter password Press 12 times Confirm to restart Confirm Cancel LCD display...
  • Page 50: Factory Default

    User manual 6.11. 3 Factory default Press[*]for 3 seconds Enter password Press 12 times Press 2 times factory default Confirm Cancel LCD display After the setting is completed, the screen will automatically return to the upper interface. Note:After Restore to factory default, the panel will clear all the parameter settings, all detectors, remote control, etc.
  • Page 51: Others

    User manual Example: Add the RFID and set it with disarm function. Press[*]for 3 seconds Enter password Press 14 times Options: Keep the RFID tag near Disarm the sensor area Home Disarm SMS Home SMS Disarm-call phone 1 Settings saved! LCD display After the setting is completed, the screen will automatically return to the upper interface.
  • Page 52: Play

    User manual 6.14.2 Play Press[*]for 3 seconds Enter password Press 15 times play the alarm message 6.14.3 PGM This panel does not support this function. 6.14.4 Chime Music Two tones optional : "ringing tone" and "Welcome". (Default welcome) For example: set the door open tone as "ringing tone" Press[*]for 3 seconds Enter password Press 3 times...
  • Page 53: Double Knock Zones

    User manual 6.15 Double Knock(Cross Zones) Press * for 3 seconds, voice prompting “enter password”. enter related zone setting Press 16 times Trigger zone 1 or zone 2 only will not trigger alarm. If zone 1 and 2 are triggered at the same time or with 120s of each other then a alarm condition will occur.
  • Page 54: Chapter Vii Technical Specification

    System alarming current: <500mA Frequency:868MHz Signal transmit distance: 50 meters (open area) Dimensions:(AKWK1 with wall mount bracket L W H)208 147 1 19 6mm The method of alarming dial: Internet IP, GSM or GPRS Communication protocol with CMS: Ademco Contact ID DTMF dial frequency variation:<1.5%...
  • Page 55: Chapter Viii Maintenance

    Due to our policy of continuous improvement we reserve the right to change specification without prior notice. Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger for any misinterpretation of these instructions. Challenger_AKWK1_Instructions_Rev01...
